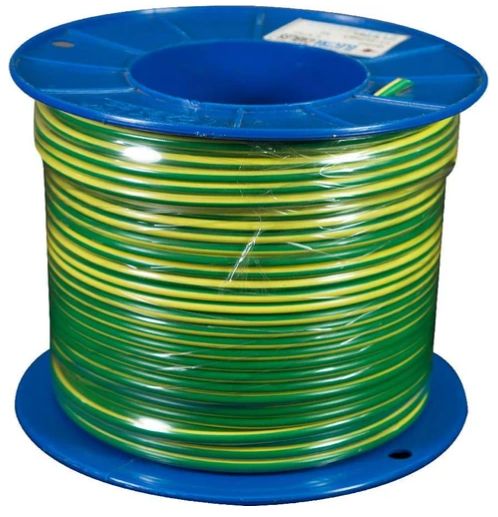

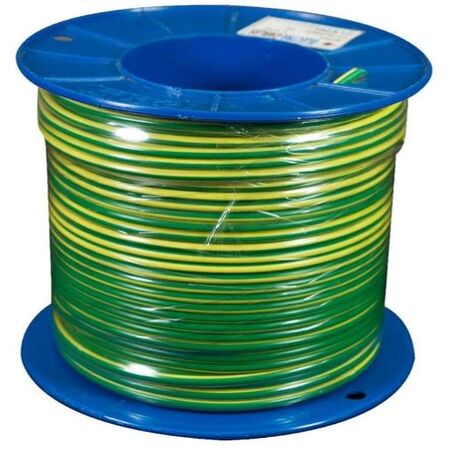

25mm Earth Green Yellow Building Wire | 25mm² Stranded Copper | PVC Insulation | @M of 100 | by Electra Cables
25mm Earth Green Yellow Building Wire is designed for reliable earthing in residential and commercial electrical installations. With a 25mm² cross-sectional area and durable PVC insulation, this wire ensures high current capacity and compliance with Australian standards. Supplied in a convenient 100m roll, it's perfect for industrial wiring projects and supports safe, efficient electrical systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 25mm Earth Green Yellow Building Wire | 25mm² Stranded Copper | PVC Insulation | @M of 100 | by Electra Cables
Brand: Electra Cables
SKU: SR1250-100G/Y
Alternatively Known As: 25mm earth wire, green yellow earth cable, 25mm² earthing cable, building earth wire, SR1250-100G/Y
Technical Specifications
- Conductor Size: 25mm²
- Conductor Type: Stranded copper (19/1.35mm)
- Insulation: PVC, green/yellow
- Voltage Rating: 0.6/1kV
- Length: 100m roll
- Operating Temperature: -15°C to +90°C
- Complies with AS/NZS 5000.1
- Dimensions (H x L x W): 25mm x 350mm x 25mm
- Weight: 18.5 kg
Key Features
- 25mm² cross-sectional area for high current capacity
- Green/yellow insulation for earth identification
- Stranded copper conductor (19 strands of 1.35mm)
- Supplied in a 100m roll for convenience
- Durable PVC insulation for long service life
- Complies with Australian standards for safety
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules.
Applications
- Residential and commercial electrical installations
- Earthing systems in buildings
- Industrial wiring projects
- Suitable for use in conduit or trunking
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 5000.1 – Electric cables for working voltages up to and including 0.6/1kV
Environmental Benefits
- Copper conductor is fully recyclable
- Long-lasting insulation reduces replacement frequency
- Supports safe and efficient electrical systems, minimizing energy loss
Warranty Information
12 months warranty against manufacturing defects.
Available Now
Available for immediate purchase. Ideal for use in residential, commercial, and industrial earthing and wiring applications.
