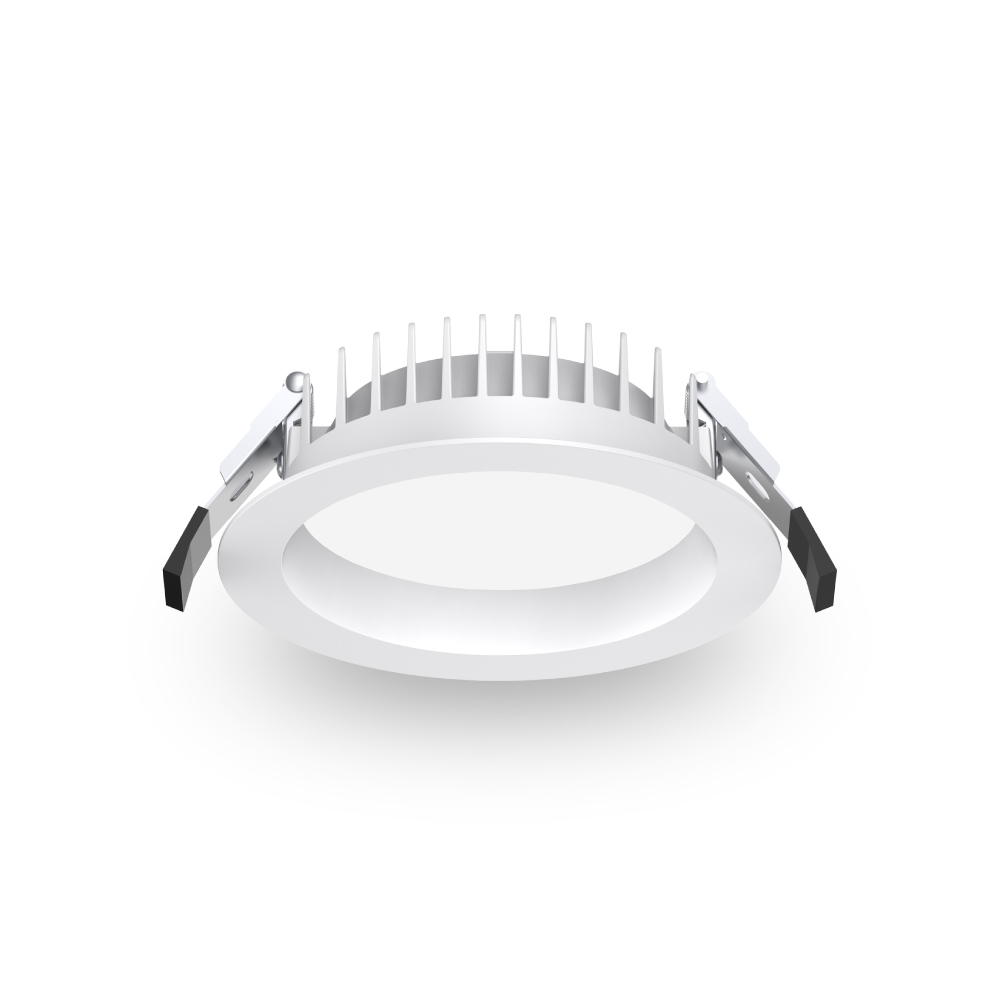

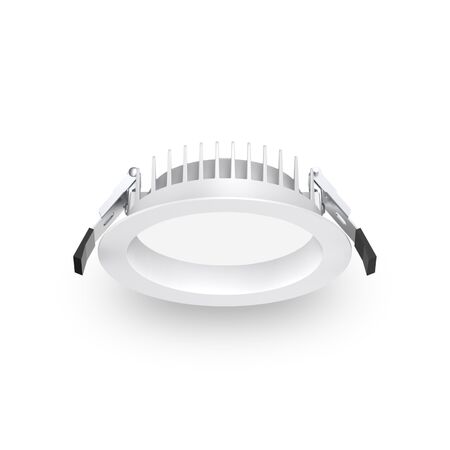

25W LED Downlight | Tri-CCT Dimmable Driver | IP54 Rated | 90° Beam Angle | by atom
The 25W LED Downlight with a dimmable driver offers versatile Tri-CCT options, including warm white, cool white, and daylight. Perfect for residential and commercial recessed lighting, this downlight features an IP54 rating for moisture resistance and a wide 90° beam angle for optimal light distribution. With a long LED lifetime of over 54,000 hours, it ensures energy efficiency and reduced maintenance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Tri-CCT LED Downlight, Dimmable LED Downlight, Recessed LED Ceiling Light, 25W LED Downlight
Technical Specifications
- Total system efficiency up to 123 lm/W
- Input voltage: 230Vac (-6%/+10%)
- Input frequency: 50 Hz
- Maximum wattage: 25 W
- Colour rendering index (CRI): >80
- LED voltage: 36 V
- LED current: 580 mA
- Beam angle: 90°
- Working temperature range: -20 to 40 °C
- IP rating: IP54 front face only
- IC rating: IC-4
- Driver type: Dimmable (phase cut), constant current
- Driver included: Yes
- Wiring type: Re-wireable flex & plug (2 pin), 600 mm lead length
- Macadam steps: 5-step MacAdam ellipse
- LED lifetime: >54,000 hours (TM-21 report)
- Dimensions (H x L x W): 80mm x 150mm x 150mm
- Weight: 0.5 kg
Key Features
- Tri-CCT configuration with warm white (3000K), cool white (4000K), and daylight (5700K) options
- Dimmable phase cut driver included
- High total system efficiency up to 123 lm/W
- IP54 rated front face for moisture resistance
- IC-4 rated for safe insulation coverage
- Fixed adjustability with powdercoated white finish
- Long LED lifetime greater than 54,000 hours
- 5-step MacAdam ellipse for consistent color quality
- Beam angle of 90° for wide light distribution
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
- Residential lighting
- Commercial lighting
- Recessed ceiling installations
- Indoor ambient and task lighting
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.2 – Luminaires Particular Requirements
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for LED Modules
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics
Environmental Benefits
- High energy efficiency reduces electricity consumption
- Long LED lifespan minimizes waste and replacement frequency
- Ipart, REES, and VEU approvals support energy savings schemes
Warranty Information
3 years return-to-base warranty for domestic use. VIP warranty offers 2 years onsite plus 3 years return-to-base (total 5 years) for registered users in defined regions.
Available Now
The Atom 25W LED Downlight with dimmable driver is available for immediate purchase, ideal for residential and commercial recessed lighting applications.
Lighting Requirement Calculator
This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
