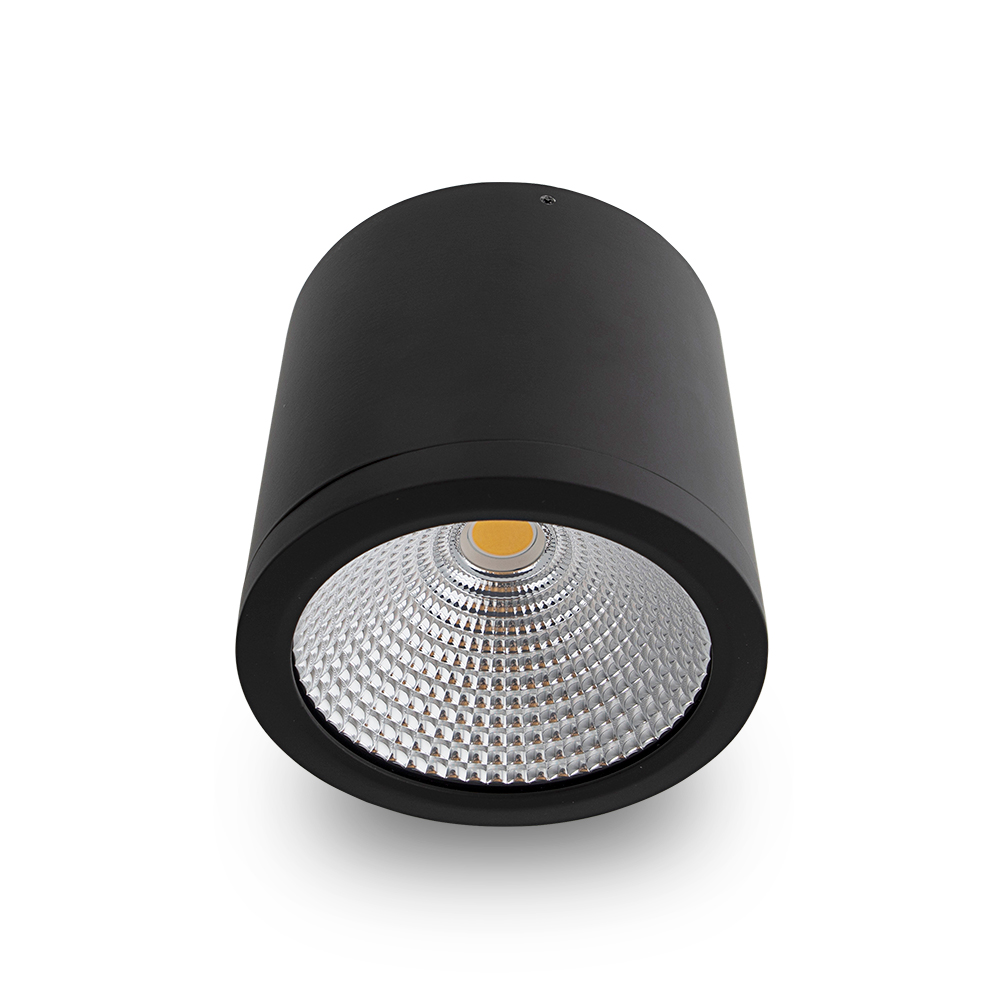

25W LED IP54 Dimmable Surface Mount Downlight | 107 lm/W Efficiency | Warm White 3000K | by atom
The 25W LED IP54 Dimmable Surface Mount Downlight is perfect for both residential and commercial lighting needs. With a high efficiency of 107 lm/W and a warm white color temperature of 3000K, it provides excellent illumination while being energy-efficient. Designed for surface mount installation, this downlight features a durable aluminium body and a glass diffuser, ensuring long-lasting performance and quality color rendering.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 25W LED surface downlight, IP54 dimmable LED downlight, warm white LED ceiling light, atom LED downlight 3000K
Technical Specifications
- Power: 25W
- Input Voltage: 230Vac (216-253Vac range)
- Frequency: 50 Hz
- LED Type: COB
- Colour Temperature: 3000K (Warm White) or 4000K (Cool White)
- Lumens Output: 2580 lm (Warm White), 2670 lm (Cool White)
- Beam Angle: 60°
- CRI: >80
- IP Rating: IP54 front face only
- Operating Temperature: -20 to 40 °C
- Driver: Dimmable phase cut, included
- Wiring: Re-wireable terminal block (3 pin)
- LED Lifetime: 40,000 hours
- Dimensions (H x L x W): 60mm x 150mm x 150mm
- Weight: 1.5 kg
Key Features
- 25W power consumption with high system efficiency up to 107 lm/W
- IP54 rated front face for protection against dust and water splashes
- Dimmable with phase cut driver included
- Fixed adjustability with surface mount installation
- High CRI >80 for quality colour rendering
- Long LED lifetime of 40,000 hours
- Available in warm white (3000K) and cool white (4000K)
- Aluminium body with glass diffuser for durability and light diffusion
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Residential lighting
- Commercial indoor lighting
- Surface mounted downlight applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 60598.1
- AS/NZS 60598.2.1
- AS/NZS 61347.1
- AS/NZS 61347.2.13
Environmental Benefits
- High system efficiency reduces energy consumption
- Long LED lifetime minimizes waste and replacement frequency
- Dimmable feature allows energy savings by adjusting light output
Warranty Information
Standard warranty: 3 years return-to-base. VIP warranty: 5 years total (2 years onsite, 3 years return-to-base) available to registered users under specific terms.
Available Now
The atom 25W LED IP54 dimmable surface mount downlight in warm white is available for immediate purchase, ideal for residential and commercial lighting applications.
