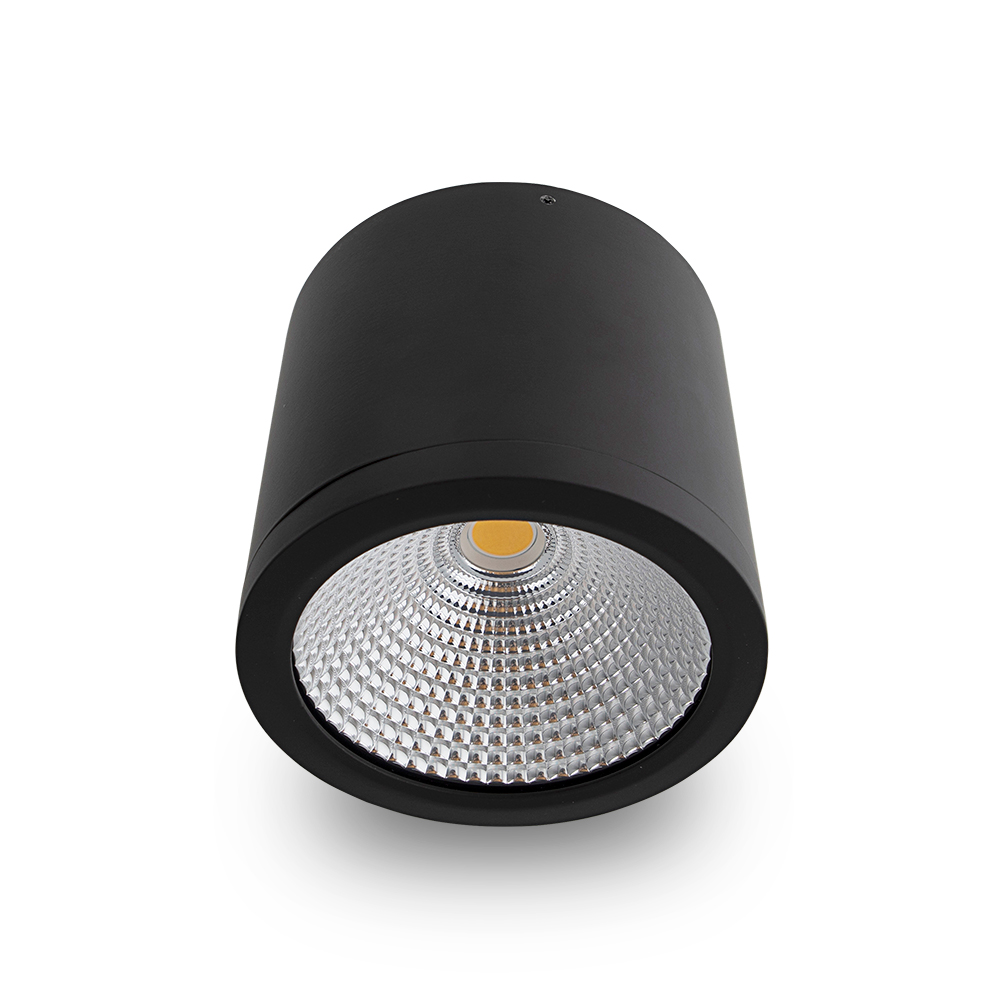

25W LED IP54 Dimmable Surface Mount Downlight | 2670 Lumens | 4000K Cool White | 60° Beam Angle | by atom
The 25W LED IP54 Dimmable Surface Mount Downlight offers an impressive 2670 lumens output and a 4000K cool white color temperature, making it perfect for both residential and commercial spaces. With a 60° beam angle and a high efficiency of 107 lm/W, this downlight is designed for energy-efficient illumination while providing a dimmable feature for customizable lighting. Ideal for areas requiring reliable and stylish lighting solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 25W LED Surface Downlight, Dimmable LED Ceiling Light, IP54 LED Downlight, Cool White LED Surface Mount Light
Technical Specifications
- Power: 25W
- Input Voltage: 230Vac (216-253Vac range)
- Colour Temperature: 4000K Cool White
- Lumens Output: 2670 lm
- CRI: >80
- Beam Angle: 60°
- LED Type: COB
- LED Lifetime: 40,000 hours
- IP Rating: IP54 front face only
- Driver Type: Dimmable (Phase cut), driver included, not integrated
- Operating Temperature Range: -20°C to 40°C
- Switch Type: Inline
- Wiring: Re-wireable terminal block (3 pin)
- Macadam Steps: 5-step MacAdam ellipse
- Dimensions (H x L x W): 60mm x 150mm x 150mm
- Weight: 1.5 kg
Key Features
- Dimmable with phase cut driver
- IP54 rated front face for protection against dust and water splashes
- High system efficiency of 107 lm/W
- 60° beam angle for focused illumination
- Long LED lifetime of 40,000 hours
- Colour rendering index (CRI) greater than 80
- Fixed adjustability with surface mount installation
- Re-wireable terminal block (3 pin) for easy wiring
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safe operation.
Applications
- Indoor surface mounted lighting for residential and commercial spaces
- Suitable for general ambient lighting in offices, retail, and hospitality
- Ideal for areas requiring dimmable, energy-efficient LED lighting
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 60598.1
- AS/NZS 60598.2.1
- AS/NZS 61347.1
- AS/NZS 61347.2.13
Environmental Benefits
- Energy-efficient LED technology reduces electricity consumption
- Long LED lifespan minimizes waste and replacement frequency
- Dimmable feature allows for reduced energy use when full brightness is not needed
Warranty Information
Standard warranty: 3 years return-to-base. VIP warranty: 5 years total (2 years onsite, 3 years return-to-base) available to registered users under specific terms.
Available Now
The Atom 25W LED IP54 Dimmable Surface Mount Downlight is available for immediate purchase, ideal for residential and commercial indoor lighting applications.
