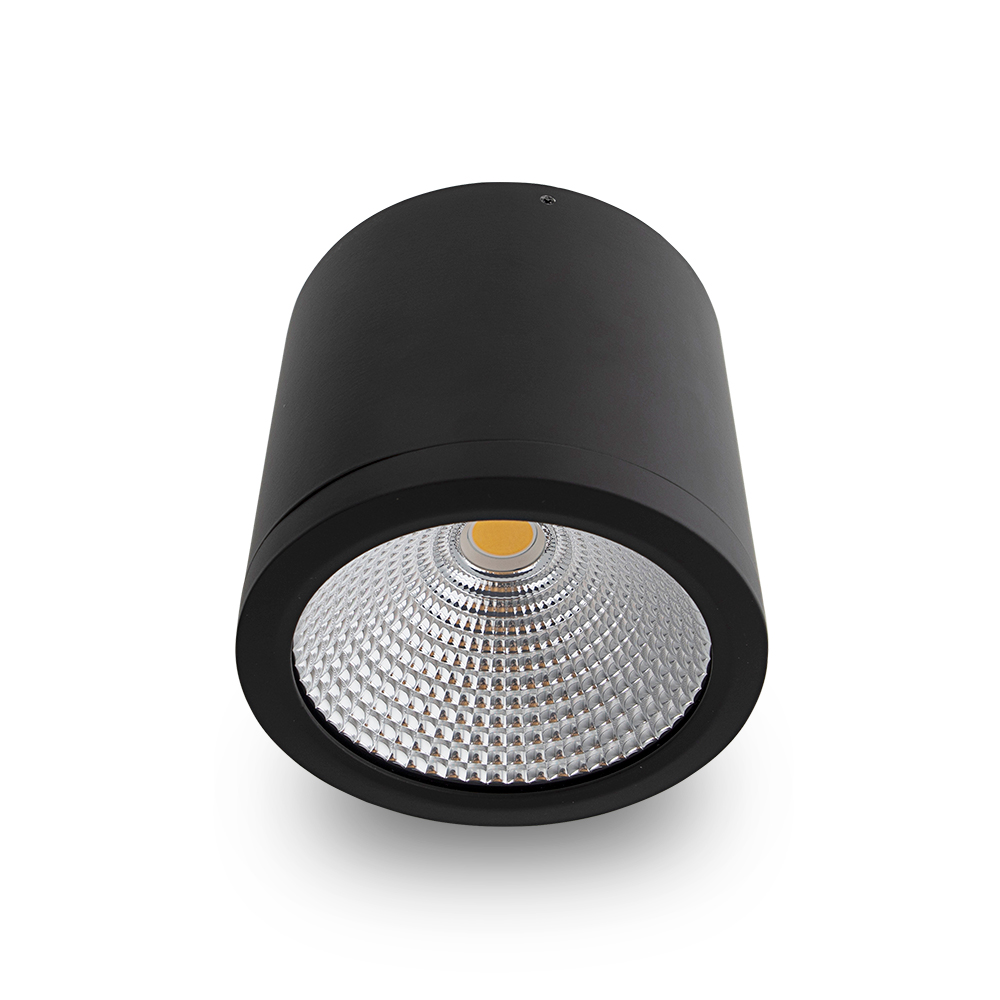

25W LED IP54 Dimmable Surface Mount Downlight | 2670 Lumens | 60° Beam Angle | Cool White Finish | by atom
The 25W LED IP54 Dimmable Surface Mount Downlight offers 2670 lumens of bright, cool white light with a 60° beam angle, making it perfect for both residential and commercial spaces. Designed for surface mounting, this energy-efficient downlight features a high Colour Rendering Index (CRI) of over 80, ensuring accurate color representation. With a long LED lifetime of 40,000 hours, it's an ideal choice for areas requiring adjustable lighting levels.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 25W LED Surface Downlight, Dimmable LED Downlight, IP54 LED Ceiling Light, Cool White LED Surface Mount Light
Technical Specifications
- Power: 25W
- Input Voltage: 230Vac (216-253Vac range)
- Colour Temperature: 4000K (Cool White)
- Lumens Output: 2670 lm
- Beam Angle: 60°
- CRI: >80
- LED Type: COB
- Macadam Steps: 5-step MacAdam Ellipse
- IP Rating: IP54 (front face only)
- Operating Temperature Range: -20°C to 40°C
- Switch Type: Inline
- Driver Type: Dimmable (Phase cut), driver included, not integrated
- Wiring: Re-wireable terminal block (3 pin)
- LED Lifetime: 40,000 hours (TM-21 reported)
- Dimensions (H x L x W): 60mm x 150mm x 150mm
- Weight: 1.2 kg
Key Features
- 25W power consumption with high system efficiency of 107 lm/W
- Dimmable via phase cut dimmer for adjustable lighting levels
- IP54 rated front face for protection against dust and water splashes
- Fixed installation with surface mount type
- High Colour Rendering Index (CRI) greater than 80 for accurate colour representation
- 60° beam angle providing focused illumination
- Long LED lifetime of 40,000 hours based on TM-21 standards
- Re-wireable terminal block (3 pin) for easy wiring
- Available in black and white finishes
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safe operation.
Applications
- Indoor surface mounted lighting for residential and commercial spaces
- Suitable for general ambient lighting in offices, retail, and hospitality
- Ideal for areas requiring dimmable, energy-efficient LED lighting
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 60598.1
- AS/NZS 60598.2.1
- AS/NZS 61347.1
- AS/NZS 61347.2.13
- AS CISPR 15
Environmental Benefits
- Energy-efficient LED technology reduces electricity consumption
- Long LED lifespan minimizes waste and replacement frequency
- Dimmable feature allows for reduced energy use when full brightness is not needed
Warranty Information
Standard 3 years return-to-base warranty for domestic use. VIP warranty offers 2 years onsite plus 3 years return-to-base (total 5 years) for registered users under specific terms and conditions.
Available Now
The Atom 25W LED IP54 Dimmable Surface Mount Downlight in Cool White is available for immediate purchase, ideal for residential and commercial indoor surface lighting applications.
