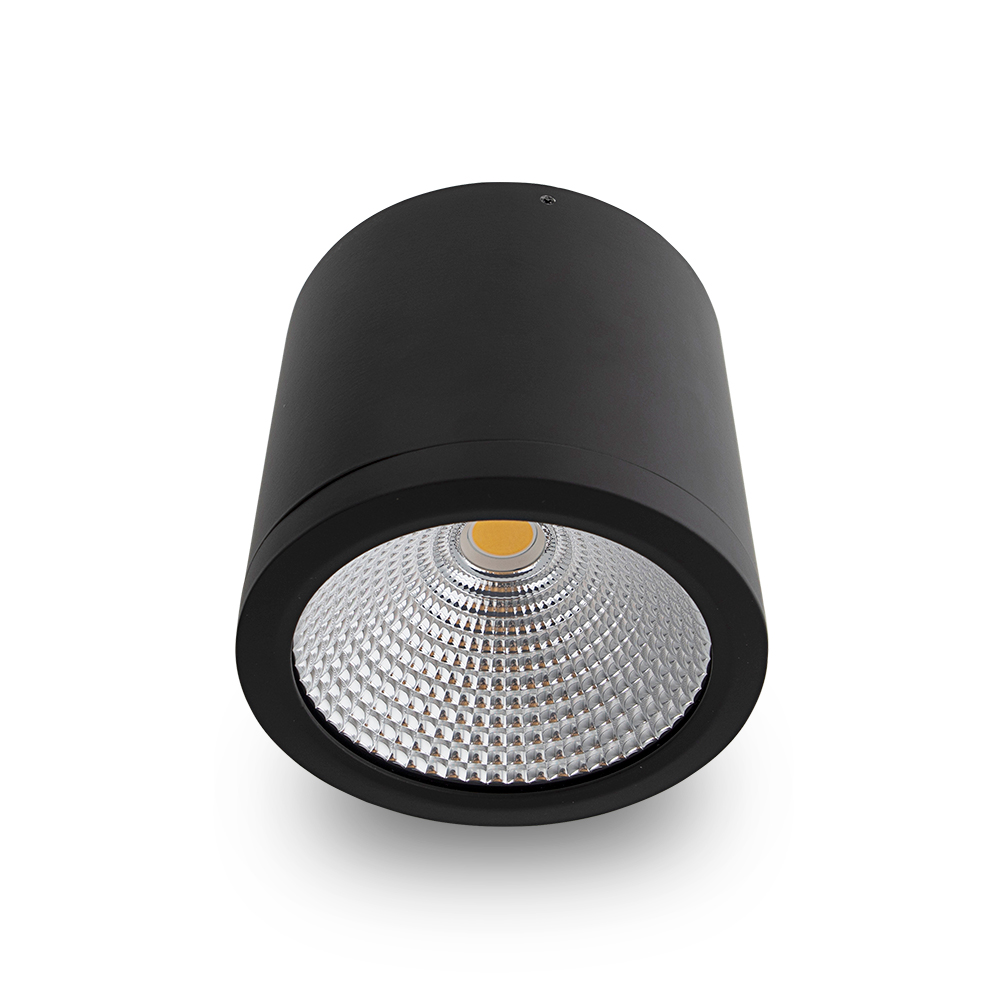

25W LED IP54 Dimmable Surface Mount Downlight | Black Finish | 3000K Warm White | 60° Beam Angle | by atom
The 25W LED IP54 Dimmable Surface Mount Downlight is perfect for creating a warm ambiance in residential and commercial spaces. With a sleek black finish and a 3000K warm white color temperature, it offers a high system efficiency of up to 107 lm/W and a 60° beam angle for focused lighting. Ideal for areas requiring dimmable lighting, this downlight ensures both style and functionality.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 25W LED Surface Downlight, Dimmable LED Downlight, IP54 LED Ceiling Light, Warm White LED Downlight
Technical Specifications
- Power: 25 W
- Input Voltage: 230Vac (216-253Vac range)
- Frequency: 50 Hz
- LED Type: COB
- Colour Temperature: 3000 K (Warm White)
- Lumens Output: 2580 lm
- Beam Angle: 60°
- CRI: >80
- IP Rating: IP54 front face only
- Operating Temperature Range: -20 to 40 °C
- Driver Type: Dimmable (Phase cut), driver included, not integrated
- Wiring: Re-wireable terminal block (3 pin)
- Macadam Steps: 5-step MacAdam ellipse
- LED Lifetime: 40,000 hours (TM-21 reported)
- Dimensions (H x L x W): 70mm x 150mm x 150mm
- Weight: 1.5 kg
Key Features
- Dimmable LED with phase cut driver
- IP54 rated front face for protection against dust and water splashes
- High system efficiency of up to 107 lm/W
- 60° beam angle for focused lighting
- Colour Rendering Index (CRI) greater than 80 for accurate colour representation
- Long LED lifetime of 40,000 hours
- Fixed adjustability with surface mount installation
- Re-wireable terminal block (3 pin) for easy wiring
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safe operation.
Applications
- Indoor surface mounted lighting for residential and commercial spaces
- Suitable for areas requiring dimmable warm white LED lighting
- Ideal for general ambient lighting in offices, retail, and hospitality
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 60598.1
- AS/NZS 60598.2.1
- AS/NZS 61347.1
- AS/NZS 61347.2.13
- AS CISPR 15
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long LED lifetime minimizes waste and replacement frequency
- Dimmable feature allows for reduced energy use when full brightness is not needed
Warranty Information
Standard warranty: 3 years return-to-base. VIP warranty: 5 years total (2 years onsite, 3 years return-to-base) available to registered users under specific terms and conditions.
Available Now
The atom 25w LED IP54 dimmable surface mount downlight is available for immediate purchase, ideal for residential and commercial indoor lighting applications.
