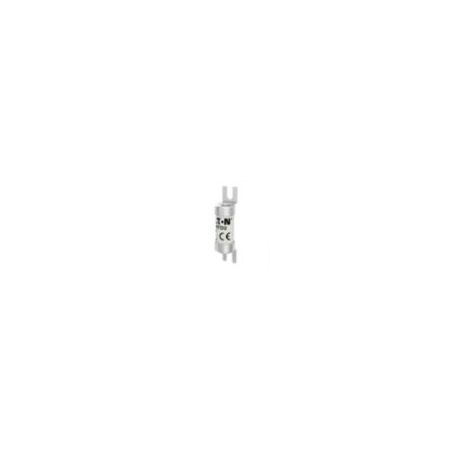

2AMP 550V AC BS88 Fuse | 80 kA Breaking Capacity | gG/gL Class | Offset Bolted Tags by Eaton
The 2AMP 550V AC BS88 fuse is designed for electrical protection in low voltage circuits, featuring an 80 kA breaking capacity and gG/gL class for general purpose use. Ideal for industrial and commercial installations, it ensures secure fitting with offset bolted tags.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 2AMP 550V AC BS88 Fuse | 80 kA Breaking Capacity | gG/gL Class | Offset Bolted Tags by Eaton
Brand: Eaton
SKU: NITD2
Alternatively Known As: 2 Amp BS88 Fuse, 550V AC Fuse, Eaton Bussmann Fuse, Low Voltage Fuse 2A, NITD2 Fuse
Technical Specifications
- Amperage Rating: 2 A
- Voltage Rating: 550 V AC
- Fuse Type: NITD
- Class: gG/gL
- Breaking Capacity: 80 kA
- Construction: BS88/A1
- Dimensions: 14 mm x 14 mm x 55 mm
- Fitted with offset bolted tags
- Suitable for CM32FC Camaster and RS20 Red spot fuse holders
- Dimensions (H x L x W): 14mm x 55mm x 14mm
- Weight: 0.0155 kg
Key Features
- 2 Ampere current rating
- 550 Volt AC voltage rating
- BS88/A1 construction standard
- Class gG/gL fuse type for general purpose protection
- Breaking capacity of 80 kA
- Offset bolted tags for secure fitting
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Electrical protection in low voltage circuits
- Suitable for use with CM32FC Camaster fuse holder
- Industrial and commercial electrical installations requiring BS88 fuses
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- CE marked for safety and environmental standards compliance
Warranty Information
Standard manufacturer warranty applies. Please refer to Eaton warranty policy for details.
Available Now
The Eaton 2AMP 550V AC BS88 Fuse is available for immediate purchase, ideal for electrical protection in industrial and commercial low voltage applications.
