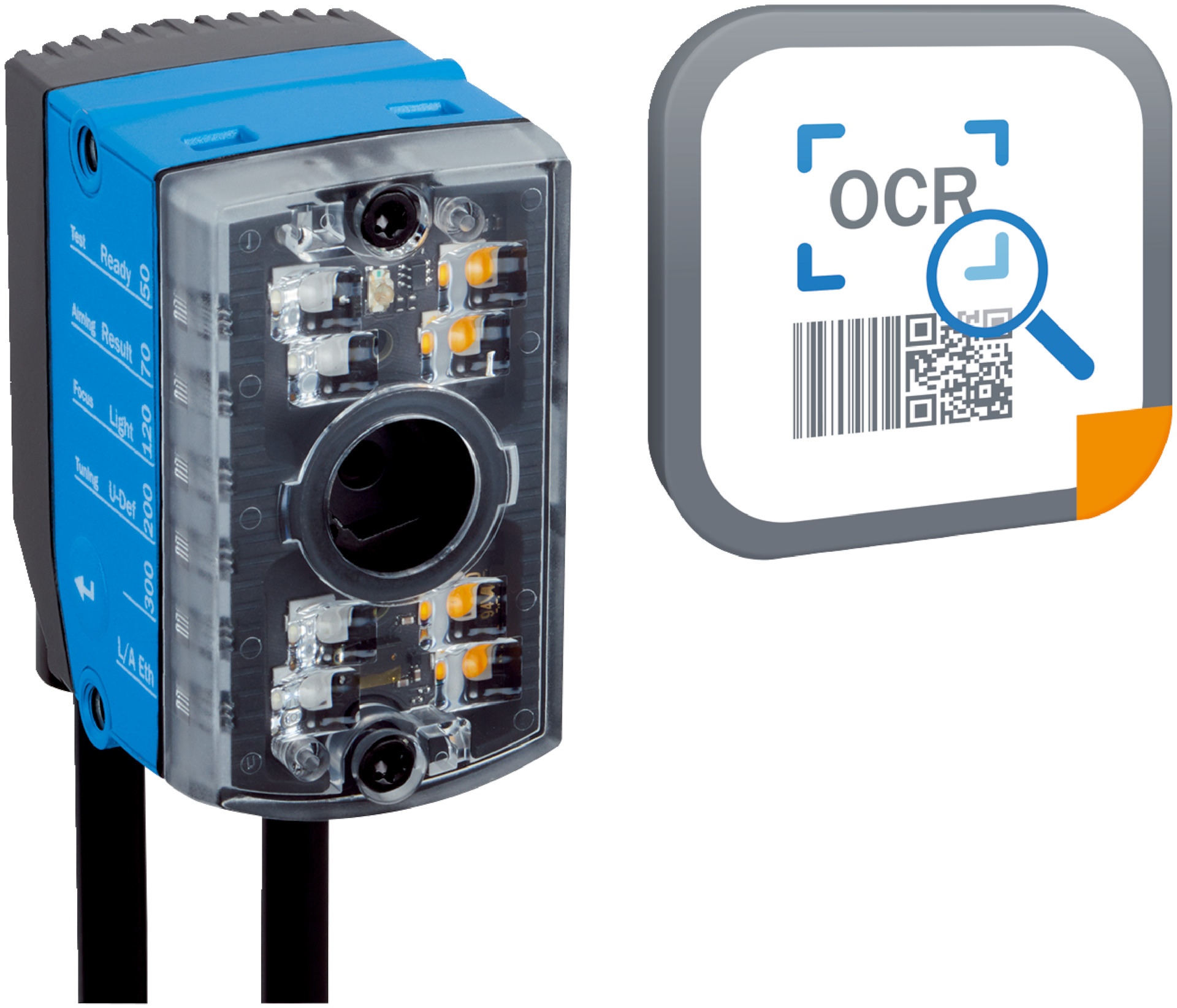

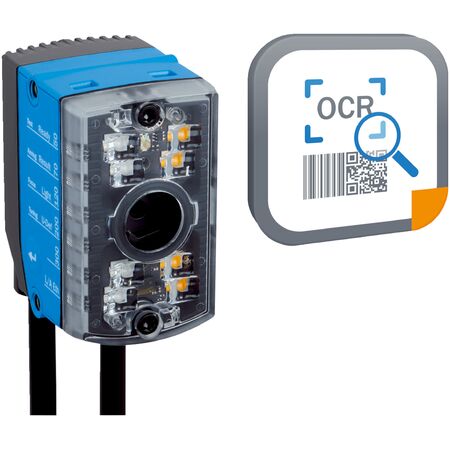

2D Barcode Scanner LBC611-06AB | 1.3 Megapixel CMOS Sensor | IP54 Rated | by SICK
The 2D Barcode Scanner LBC611-06AB features advanced 2D snapshot technology and a 1.3 Megapixel CMOS sensor, making it perfect for industrial barcode scanning and automated inspection. With an IP54 rating and a wide operating temperature range of -20°C to +70°C, this robust scanner is designed for reliability in demanding environments, ensuring accurate code reading and quality control in logistics and warehouse management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 2D Barcode Scanner LBC611-06AB | 1.3 Megapixel CMOS Sensor | IP54 Rated | by SICK
Brand: SICK
SKU: 1120348
Alternatively Known As: 2D Barcode Scanner, Industrial Barcode Reader, Snapshot Code Reader, SICK LBC611 Scanner
Technical Specifications
- Technology: 2D snapshot
- Light sources: Internal LEDs (amber 617 nm, blue 470 nm, green 525 nm), red laser (630 nm) for adjustment
- Laser class: Class 1, compliant with IEC 60825-1:2014
- Sensor: CMOS matrix, grayscale, 1.3 Megapixel (1280 x 960 px)
- Spectral range: Approx. 400 nm to 900 nm
- Focal length: 6 mm, adjustable manually
- Enclosure rating: IP54 (EN 60529)
- Protection class: III
- Power consumption: Typically 3.5 W
- Housing material: Aluminum die cast
- Output current: ≤ 100 mA
- Connections: 1 x M12 17-pin male connector, 1 x M12 4-pin female connector (Ethernet)
- Supply voltage: 12 V DC to 24 V DC ± 15%
- Window material: PMMA
- Supported barcode types: 2/5 Industrial, Interleaved 2 of 5, Codabar, Code 39, Code 93, Code 128, EAN-8, EAN-13, Pharmacode
- Supported 2D codes: Data Matrix ECC200, QR code, Micro QR code, PDF417, Aztec
- OCR/OCV fonts: Universal, industrial, document, DotPrint, pharma, OCR-A, OCR-B, Arabic numbers
- Optical format: 1/3"
- Maximum encoder frequency: 300 Hz
- Interfaces: Ethernet (TCP/IP, EtherNet/IP, UDP, PROFINET), Serial RS-232
- Data transmission rate: 10/100 MBit/s Ethernet, 300 Baud to 115.2 kBaud serial
- Operator interface: Web server
- Optical indicators: 6 status displays, 2 LED alignment aids, 1 feedback spot
- Operating temperature: -20°C to +70°C
- Storage temperature: -20°C to +70°C
- Shock and vibration resistance: EN 60068-2-27 and EN 60068-2-6 compliant
- Dimensions (H x L x W): 30mm x 50mm x 40mm
- Weight: 0.165 kg
Key Features
- 2D snapshot technology for fast and accurate code reading
- Adjustable manual focus with 6 mm focal length
- Multiple internal LED light sources: amber, blue, green, and red laser for alignment and feedback
- CMOS matrix sensor with 1.3 Megapixel resolution
- Supports a wide range of barcode types including Data Matrix, QR code, PDF417, and more
- Ethernet and serial RS-232 interfaces with multiple protocols including EtherNet/IP, PROFINET, FTP, and HTTP
- Robust aluminum die cast housing with IP54 protection rating
- Wide operating temperature range from -20°C to +70°C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial barcode and 2D code scanning
- Automated inspection and quality control
- Logistics and warehouse management
- Document and label verification
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption at approximately 3.5 W reduces energy usage
- Durable aluminum housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK LBC611-06AB 2D snapshot barcode scanner is available for immediate purchase, ideal for industrial automation, logistics, and quality control applications.
