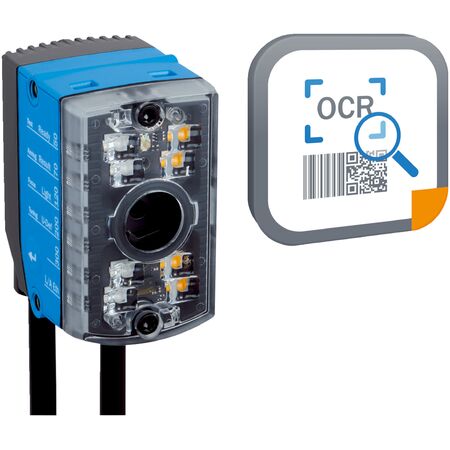

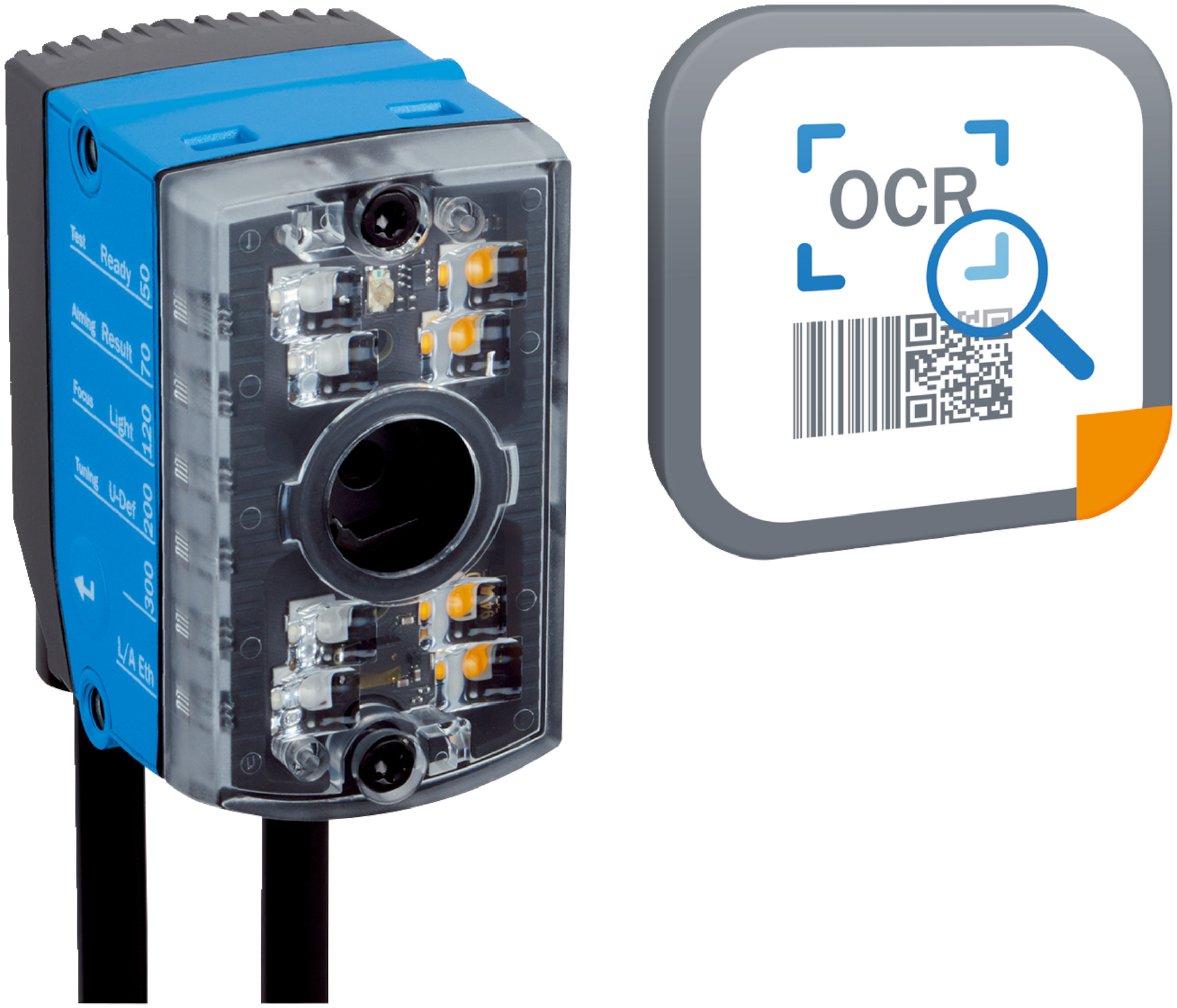

2D Barcode Scanner LBC611-12AB | CMOS 1.3 Mpixel | IP54 Rated | by SICK
The 2D Barcode Scanner LBC611-12AB features advanced 2D snapshot technology with a CMOS matrix sensor offering 1.3 Mpixel resolution. Ideal for industrial automation and logistics, this scanner supports a wide range of barcode types and 2D codes, ensuring efficient package tracking and verification. With an IP54 rated aluminum housing, it withstands dust and water splashes, making it perfect for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot
- Light sources: Amber LED (617 nm), Blue LED (470 nm), Green LED (525 nm), Red laser (630 nm)
- Laser class: Class 1, compliant with IEC 60825-1:2014
- Sensor: CMOS matrix, grayscale, 1.3 Mpixel (1280 x 960 px)
- Spectral range: Approx. 400 nm to 900 nm
- Focal length: 12 mm
- Enclosure rating: IP54 (EN 60529)
- Protection class: III
- Power consumption: Typical 3.5 W
- Housing material: Aluminum die cast
- Output current: ≤ 100 mA
- Connections: 1 x M12 17-pin male connector, 1 x M12 4-pin female connector (Ethernet)
- Supply voltage: 12 V DC to 24 V DC ± 15%
- Window material: PMMA
- Barcode types supported: 2/5 Industrial, Interleaved 2 of 5, Codabar, Code 39, Code 93, Code 128, EAN-8, EAN-13, Pharmacode
- 2D code types supported: Data Matrix ECC200, QR code, Micro QR code, PDF417, Aztec
- OCR/OCV fonts: Universal, industrial, document, DotPrint, pharma, OCR-A, OCR-B, Arabic numbers
- Optical format: 1/3"
- Maximum encoder frequency: 300 Hz
- Interfaces: Ethernet (TCP/IP, EtherNet/IP, UDP, PROFINET), Serial RS-232
- Data transmission rate: 10/100 MBit/s Ethernet, 300 Baud to 115.2 kBaud serial
- Operator interface: Web server
- Optical indicators: 6 status displays, 2 LED alignment aids, 1 feedback spot
- Operating temperature: -20°C to +70°C
- Storage temperature: -20°C to +70°C
- Shock and vibration: EN 60068-2-27 and EN 60068-2-6 compliant
- Dimensions (H x L x W): 30mm x 50mm x 40mm
- Weight: 0.165 kg
Key Features
- 2D snapshot technology with CMOS matrix sensor, 1.3 Mpixel resolution
- Adjustable manual focus with 12 mm focal length
- Multiple light sources including visible amber, blue, green LEDs and red laser for adjustment
- Supports a wide range of barcode types including Industrial 2/5, Codabar, Code 39, Code 128, EAN, Pharmacode
- Reads 2D codes such as Data Matrix ECC200, QR code, Micro QR code, PDF417, Aztec
- Ethernet and serial RS-232 interfaces with protocols including TCP/IP, EtherNet/IP, UDP, PROFINET, FTP, HTTP
- IP54 rated aluminum die cast housing for protection against dust and water splashes
- Operating temperature range from -20°C to +70°C with shock and vibration resistance
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper electrical connections and alignment for optimal scanning performance.
Applications
- Industrial automation and manufacturing for barcode and 2D code reading
- Logistics and warehousing for package and inventory tracking
- Pharmaceutical and document verification using OCR/OCV fonts
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Low power consumption at approximately 3.5 W reduces energy usage
- Durable IP54 rated housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK LBC611-12AB 2D snapshot barcode scanner is available for immediate purchase, ideal for industrial automation, logistics, and quality control applications.
