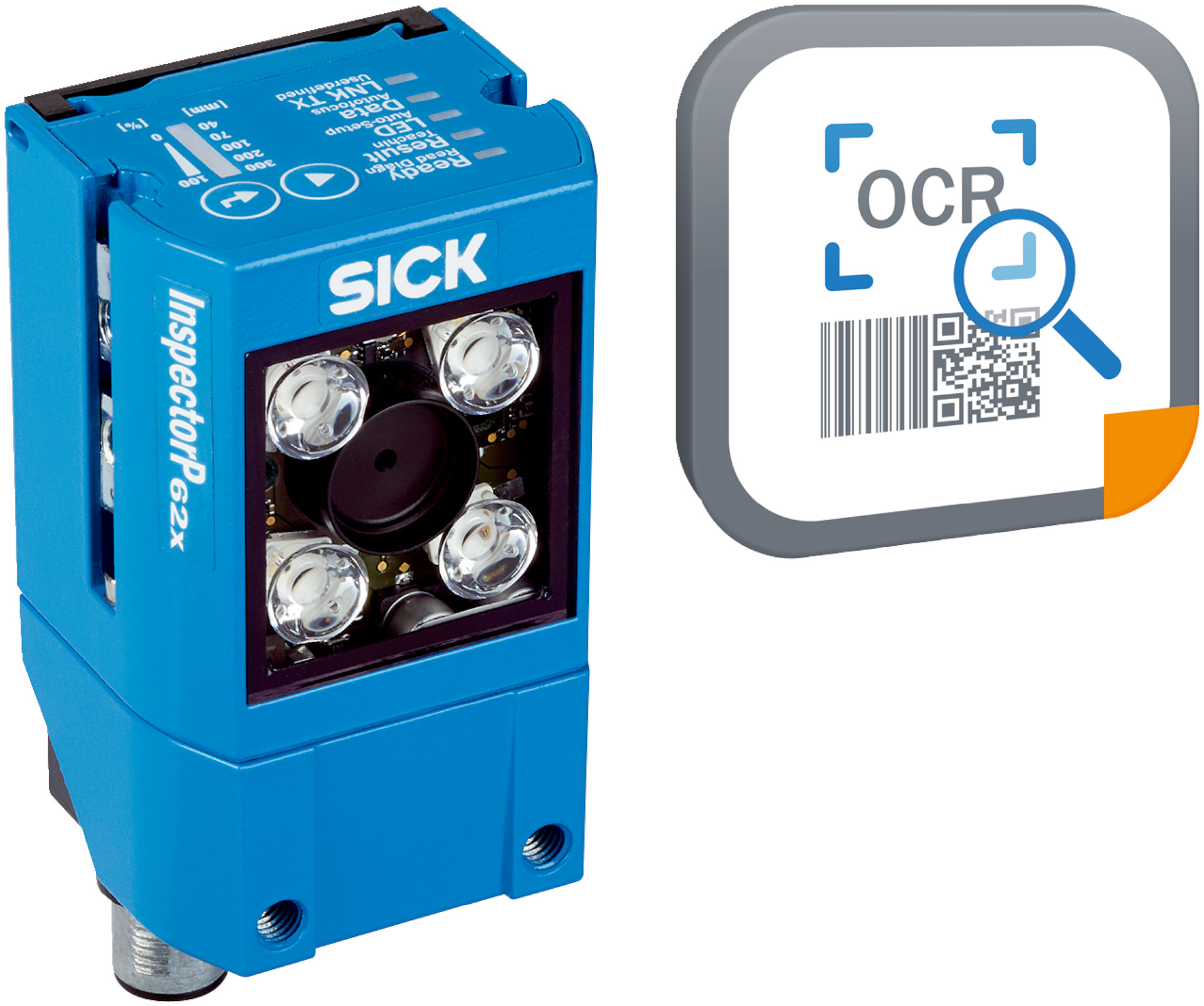

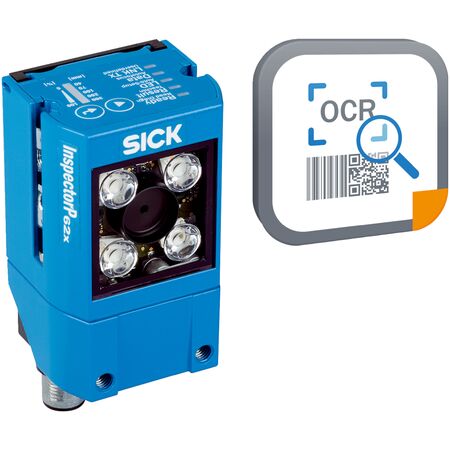

2D Barcode Scanner LBC621-10RB | 1.3 Megapixel CMOS | IP65 Rated | by SICK
The 2D Barcode Scanner LBC621-10RB features advanced 2D snapshot technology and a 1.3 Megapixel CMOS sensor for fast and accurate code reading. With an adjustable electric focus and multiple light sources, it's perfect for industrial automation, logistics, and quality control applications. Its robust IP65 rated housing ensures durability in demanding environments, making it an ideal choice for professionals seeking reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot
- Light sources: Internal LEDs - red (617 nm), blue (470 nm), green feedback spot (525 nm), laser adjustment aid (630-680 nm)
- Laser class: 1 (IEC 60825-1:2014 compliant)
- Sensor: CMOS matrix, grayscale, 1.3 Megapixel (1280 x 1024 px)
- Spectral range: Approx. 400 nm to 900 nm
- Focal length: 9.6 mm, adjustable electric focus
- Enclosure rating: IP65
- Protection class: III
- Power consumption: Typical 4 W
- Output current: ≤ 100 mA
- Connections: 1 x M12 17-pin male connector, 1 x M12 4-pin female Ethernet connector
- Supply voltage: 12 V DC to 24 V DC ± 20%
- Window material: PMMA
- Supported barcode types: 2/5 Industrial, Interleaved 2 of 5, Codabar, Code 39, Code 93, Code 128, EAN-8, EAN-13, Pharmacode, GS1-128, Code 32, UPC-A, UPC-E, GS1, MSI
- Supported 2D codes: Data Matrix ECC200, QR code, Micro QR code, PDF417, Aztec
- OCR/OCV fonts: Universal, industrial, document, DotPrint, pharma, OCR-A, OCR-B, Arabic numbers
- Optical format: 1/1.8"
- Maximum encoder frequency: 300 Hz
- Ethernet: TCP/IP, EtherNet/IP, UDP, PROFINET
- Data transmission rate: 10/100 MBit/s
- Protocols: FTP, HTTP
- Operator interface: Web server
- Indicators: 5 status displays, 5 LED bar graph, 1 green/red feedback spot, beeper
- Operating temperature: -20°C to +70°C
- Storage temperature: -20°C to +70°C
- Shock and vibration resistance: EN 60068-2-27, EN 60068-2-6
- Dimensions (H x L x W): 35.6mm x 71mm x 43mm
- Weight: 0.17 kg
Key Features
- 2D snapshot technology for fast and accurate code reading
- Adjustable electric focus with 9.6 mm focal length
- Multiple light sources including red, blue, and green LEDs
- Laser class 1 compliant with IEC 60825-1:2014 standards
- CMOS matrix sensor with 1.3 Megapixel resolution
- IP65 rated aluminum die-cast housing for robust protection
- Supports a wide range of barcode and 2D code types
- Ethernet connectivity with TCP/IP, EtherNet/IP, UDP, PROFINET protocols
- Web server operator interface with optical and acoustic indicators
- Wide operating temperature range from -20°C to +70°C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial barcode and 2D code scanning
- Automated inspection and quality control
- Logistics and warehouse management
- Pharmaceutical and document verification
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable IP65 rated housing reduces need for frequent replacements
- Low power consumption at approximately 4 W
- Supports efficient automated processes reducing paper and manual errors
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LBC621-10RB 2D Snapshot Barcode Scanner is available for immediate purchase, ideal for industrial automation, logistics, and quality control applications.
