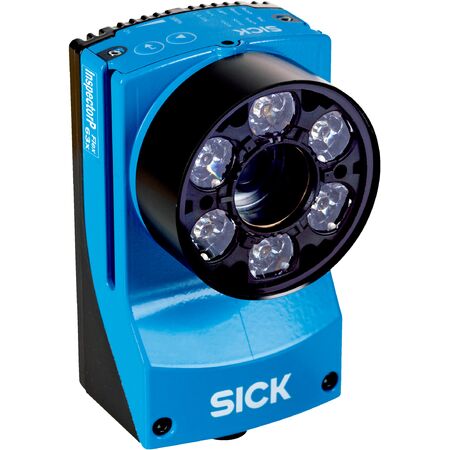

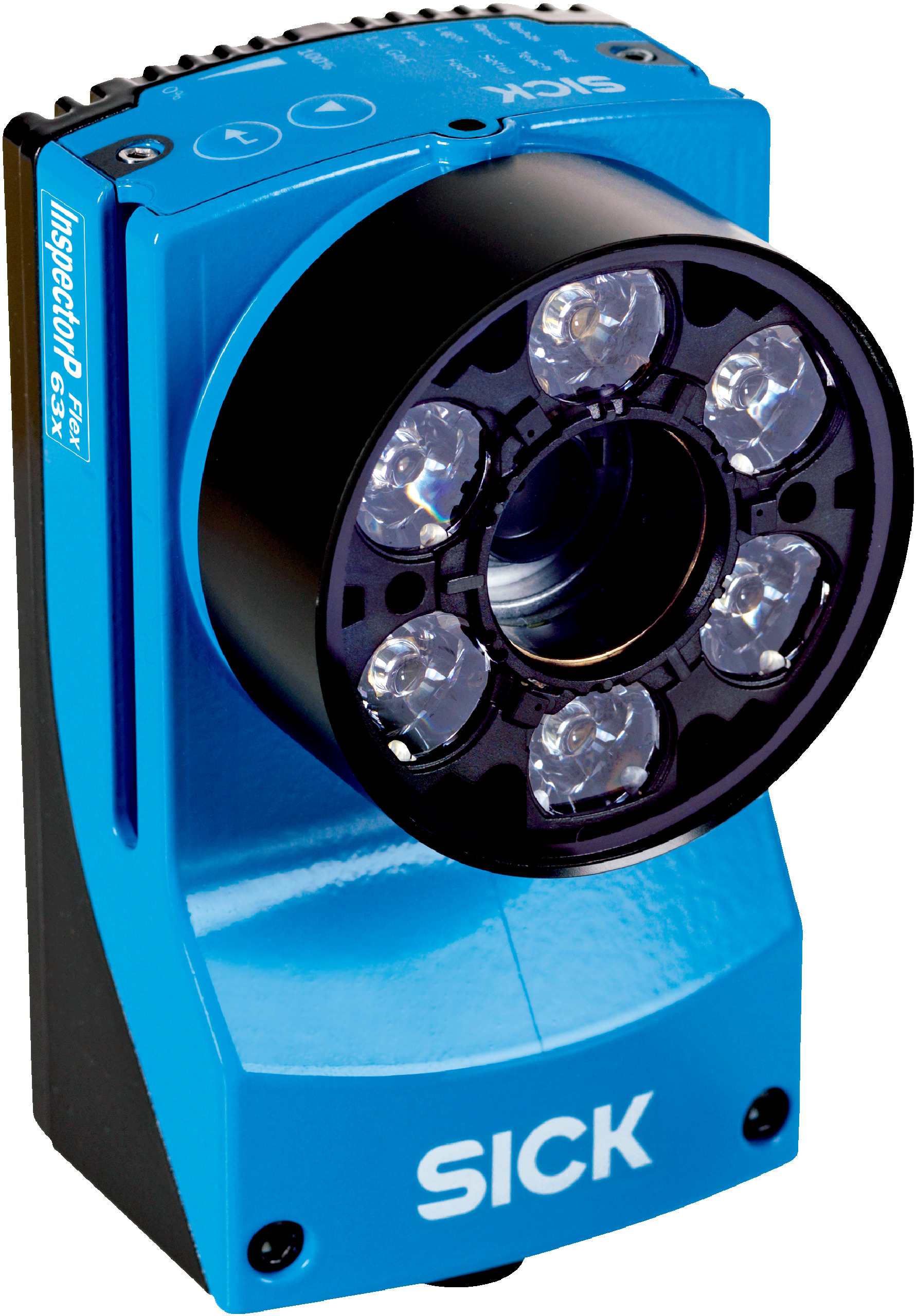

2D Barcode Scanner PINS632 | CMOS Matrix Sensor | IP67 Rated | Adjustable Focus | by SICK
The 2D Barcode Scanner PINS632 features advanced 2D snapshot technology with a 1.9 Mpixel CMOS matrix sensor, making it perfect for industrial barcode and 2D code scanning. With an IP67 rated aluminum housing, it’s built to withstand harsh environments, ensuring reliable performance in logistics, automated inspection, and quality control applications. The adjustable manual focus and integrated web server enhance usability, making it a top choice for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot
- Sensor: CMOS matrix sensor, grayscale, 1.9 Mpixel (1600 x 1200 px)
- Spectral range: Approx. 400 nm to 900 nm
- Light source: Illumination LEDs (ordered separately), visible red laser alignment aid (630-680 nm)
- Laser class: Class 1, compliant with IEC 60825-1:2014 and 21 CFR 1040.10
- Focus: Adjustable manually
- Lens: C-mount
- Enclosure rating: IP67 (EN 60529)
- Protection class: III (EN 60950-1)
- Power consumption: Typical 10 W ± 20%
- Supply voltage: 12 V DC to 24 V DC ± 20%
- Output current: ≤ 100 mA
- Connections: Multiple M12 and M8 connectors for serial, Ethernet, USB, and illumination
- Data transmission rate: 10/100/1000 Mbit/s Ethernet, serial 300 Baud to 115.2 kBaud
- Supported codes: Industrial 2/5, Interleaved 2 of 5, Codabar, Code 39, Code 93, Code 128, EAN-8, EAN-13, Pharmacode, Data Matrix ECC200, QR code, Micro QR code, PDF417, Aztec
- OCR/OCV fonts: Universal, industrial, document, DotPrint, pharma, OCR-A, OCR-B, Arabic numbers
- Maximum encoder frequency: 1 kHz
- Operator interface: Web server with 2 buttons
- Indicators: 5 status LEDs, 5 LED bar graph, green/red feedback spot, beeper
- Data storage: microSD card and external FTP
- Ambient temperature operation: 0°C to +50°C, 0-90% humidity non-condensing
- Ambient temperature storage: -20°C to +70°C
- Shock and vibration: Compliant with EN 60068-2-27 and EN 60068-2-6
- Dimensions (H x L x W): 46mm x 108mm x 63mm
- Weight: 0.43 kg
Key Features
- 2D snapshot technology with CMOS matrix sensor (1.9 Mpixel)
- Adjustable manual focus with C-mount lens
- Illumination LEDs and visible red laser alignment aid
- Supports multiple barcode types including Data Matrix, QR code, PDF417, and Aztec
- High-speed data transmission via Ethernet and serial interfaces
- IP67 rated aluminum die cast housing for robust industrial use
- Integrated web server for operator interface and control
- Image and data logging via microSD and external FTP
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial barcode and 2D code scanning
- Automated inspection and quality control
- Logistics and warehouse management
- Pharmaceutical and document verification
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP67 rated housing reduces need for frequent replacements
- Energy-efficient operation with typical power consumption of 10 W
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK PINS632 2D Snapshot Barcode Scanner is available for immediate purchase, ideal for industrial and logistics applications requiring reliable barcode and 2D code reading.
