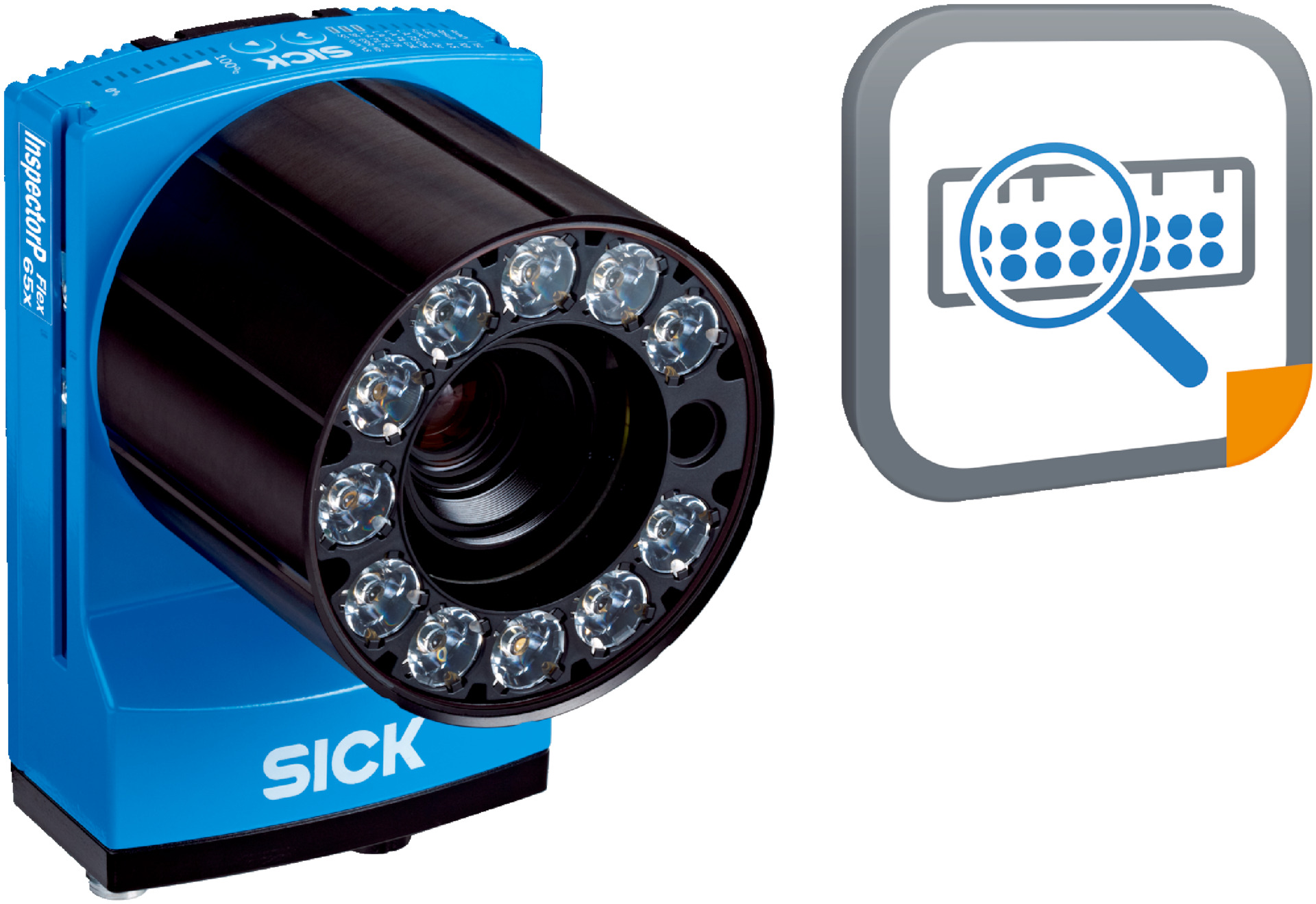

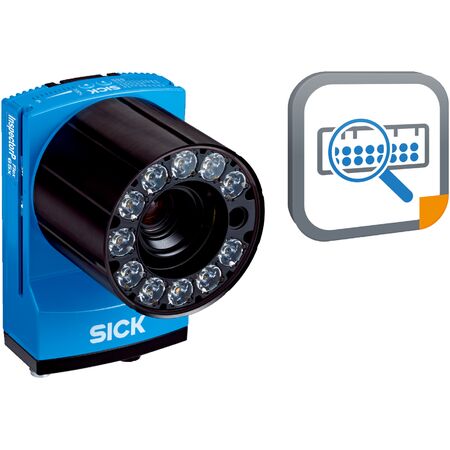

2D Barcode Scanner PINS654 | 4.2 Mpixel CMOS Sensor | IP65 Rated | by SICK
The 2D Barcode Scanner PINS654 features advanced 2D snapshot technology with a 4.2 Mpixel CMOS matrix sensor, making it perfect for industrial barcode scanning. With adjustable manual focus and robust IP65-rated housing, it excels in manufacturing and logistics applications, ensuring reliable product identification and quality control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot
- Sensor: CMOS matrix sensor, grayscale, 4.2 Mpixel, 2048 x 2048 px
- Spectral range: Approx. 400 nm to 900 nm
- Laser class: Class 1 laser, compliant with IEC 60825-1:2014
- Focus: Adjustable manual focus
- Lens: C-mount
- Enclosure rating: IP65
- Protection class: III
- Power consumption: Typical 10 W ± 20%
- Supply voltage: 24 V DC ± 20%
- Connections: M12 17-pin male, M8 4-pin female (USB not used), M12 8-pin female (Gigabit Ethernet)
- Data transmission rate: 10/100/1000 Mbit/s Ethernet, 300 Baud to 115.2 kBaud serial
- Supported codes: Industrial 2/5, Interleaved 2 of 5, Codabar, Code 39, Code 93, Code 128, EAN-8, EAN-13, Pharmacode, Data Matrix ECC200, QR code, Micro QR code, PDF417, Aztec
- OCR/OCV fonts: Universal, industrial, document, DotPrint, pharma, OCR-A, OCR-B, Arabic numbers
- Operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- Shock and vibration tested to EN 60068 standards
- Dimensions (H x L x W): 46mm x 142mm x 90mm
- Weight: 0.635 kg
Key Features
- 2D snapshot technology with CMOS matrix sensor, 4.2 Mpixel resolution
- Adjustable manual focus with C-mount lens
- Illumination LEDs and visible red laser alignment aid
- Supports multiple barcode types including Data Matrix ECC200, QR code, PDF417, and more
- Robust aluminum die cast housing with IP65 rating
- Multiple interfaces including Ethernet, serial RS-232/RS-422, and USB
- Web server operator interface with optical and acoustic indicators
- Image and data logging via microSD and external FTP
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial barcode and 2D code scanning
- Manufacturing and logistics for product identification
- Quality control and traceability in production lines
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Energy-efficient operation with typical power consumption of 10 W
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms and duration.
Available Now
The SICK PINS654 2D Snapshot Barcode Scanner is available for immediate purchase, ideal for industrial and manufacturing environments requiring reliable barcode reading.
