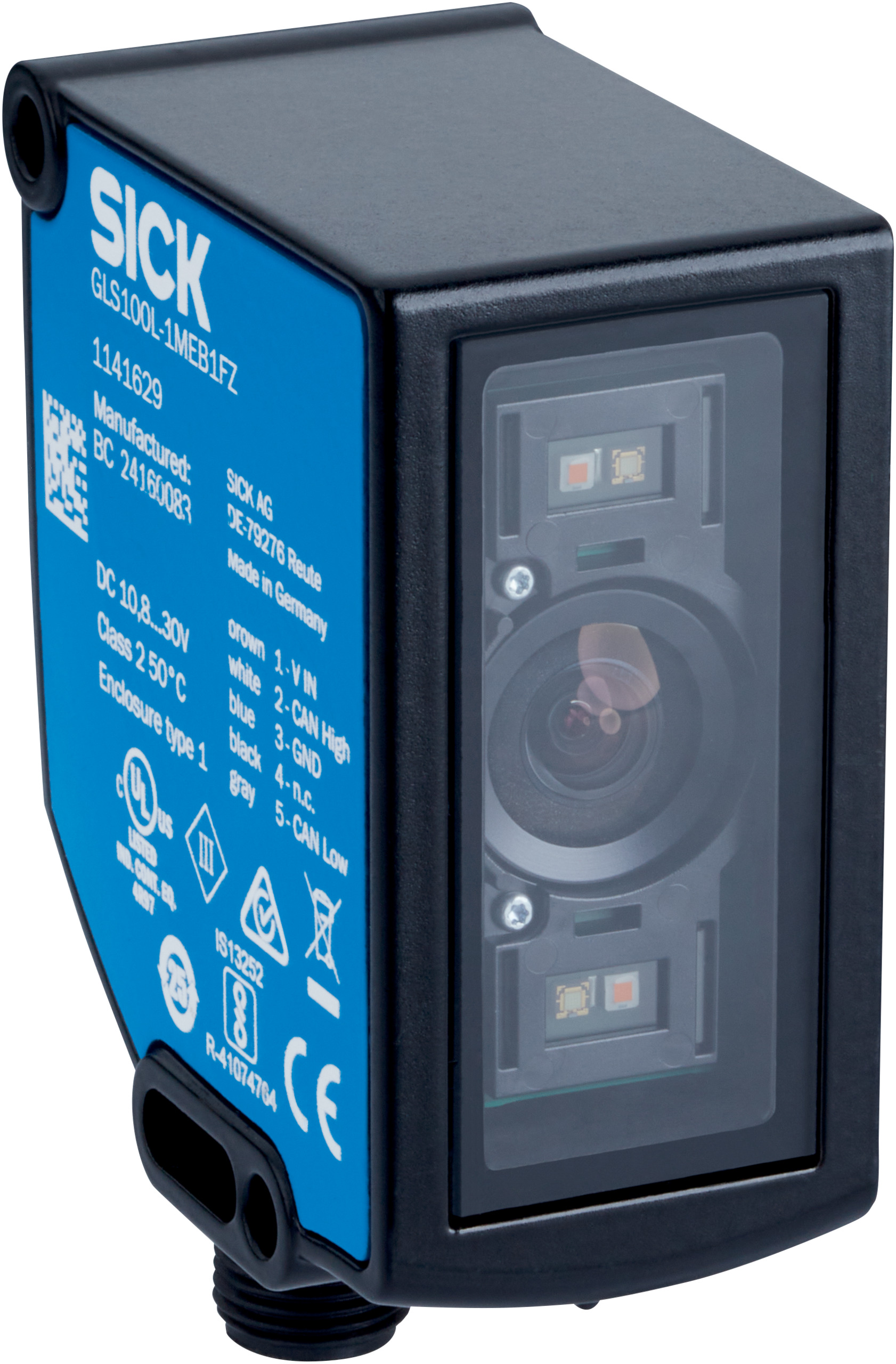

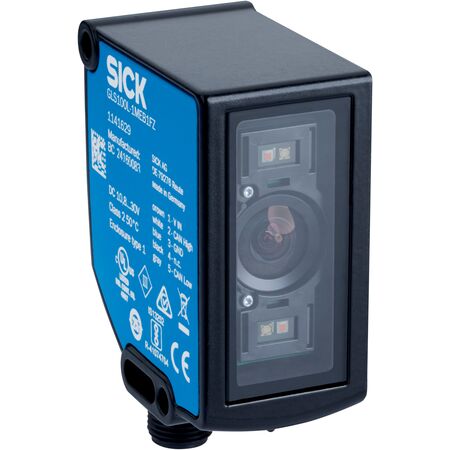

2D Code Reader GLS100L-1MEB1FZ | IP65 Rated | Zinc Diecast Housing | High Repeatability | by SICK
The 2D Code Reader GLS100L-1MEB1FZ is designed for industrial automation, capable of reading Data Matrix ECC200 and QR codes with high repeatability of ± 0.1 mm. With an IP65 enclosure rating and robust zinc diecast housing, it ensures durability in demanding environments. Ideal for quality control and logistics, this scanner supports IO-Link V1.1 and CANopen communication protocols, making it a reliable choice for barcode scanning applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10.8 V to 30 V
- Power consumption: < 3 W
- Housing material: Zinc diecast
- Enclosure rating: IP65 (EN 60529)
- Protection class: III
- Readable code structures: 2D codes including Data Matrix ECC200 and QR code
- Code qualification standards: ISO/IEC 16022, 15415, 15416, 18004
- Communication interfaces: IO-Link V1.1, CANopen
- Data transmission rates: 50/125/250/500/1,000 kbit/s
- Optical indicators: 2 LEDs for voltage supply and code read status
- Operating temperature range: 0 °C to +50 °C
- Storage temperature range: -25 °C to +75 °C
- Permissible relative humidity: 90%, non-condensing
- Vibration resistance: EN 60068-2-6, EN 60068-2-27
- EMC compliance: EN 61000-6-3, EN 61000-6-2
- Dimensions (H x L x W): 52.5mm x 31mm x 62mm
- Weight: 0.25 kg
Key Features
- Complete device with fixed optical focus and polarizing filter
- Internal lighting with 2 LEDs in amber (590 nm) and cyan (500 nm)
- Reading distance up to 100 mm with overrun speed ≤ 3.5 m/s
- High repeatability of ± 0.1 mm and angular accuracy of ± 0.1°
- Robust zinc diecast housing with IP65 enclosure rating
- Supports IO-Link V1.1 and CANopen communication protocols
- Electromagnetic compatibility and vibration resistance certified
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for reading 2D codes such as Data Matrix ECC200 and QR codes
- Quality control and traceability in manufacturing processes
- Logistics and warehouse management for barcode scanning
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption under 3 W reduces energy usage
- Durable zinc diecast housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GLS100L-1MEB1FZ 2D Code Reader is available for immediate purchase, ideal for industrial automation and barcode scanning applications.
