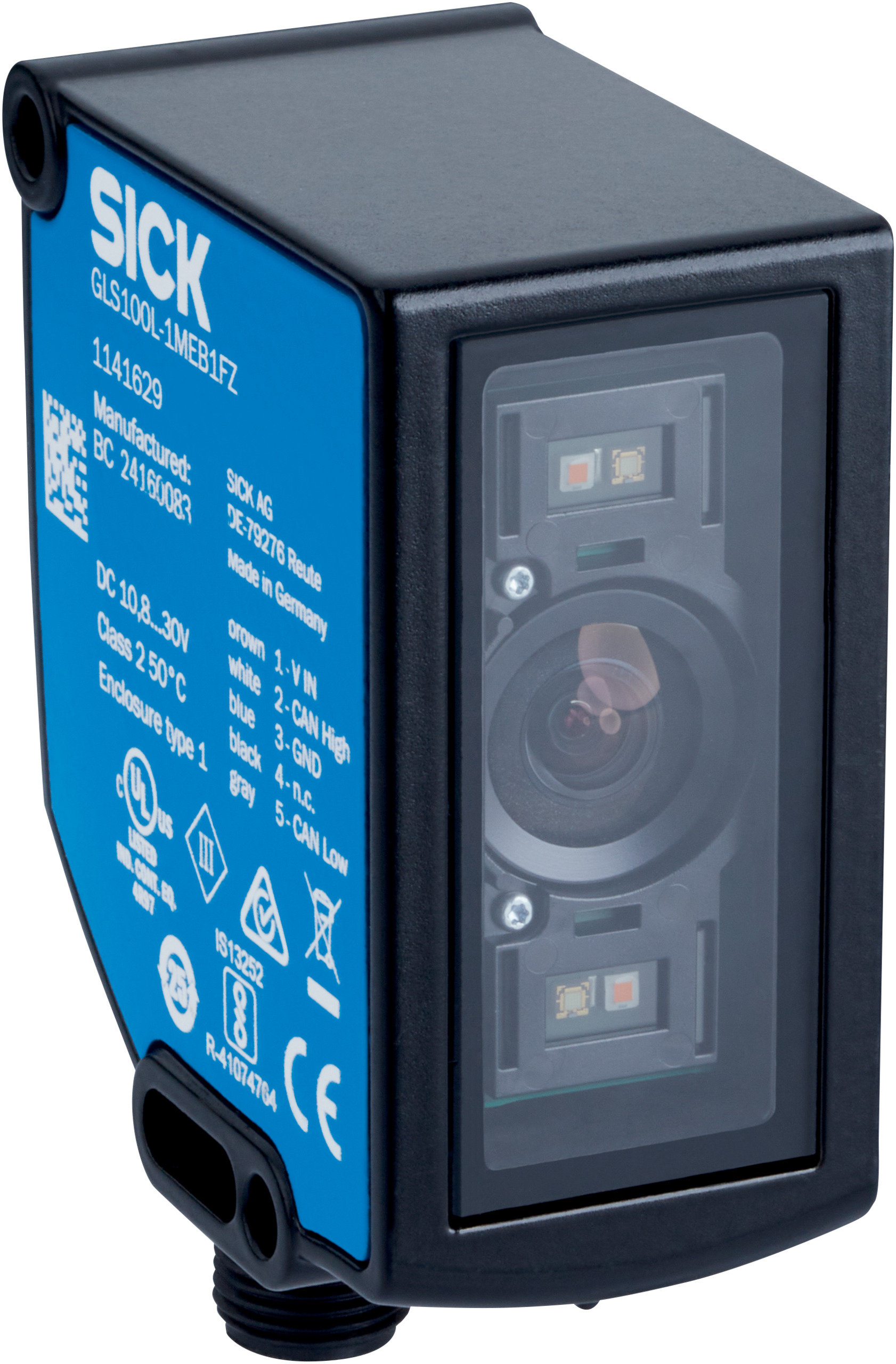

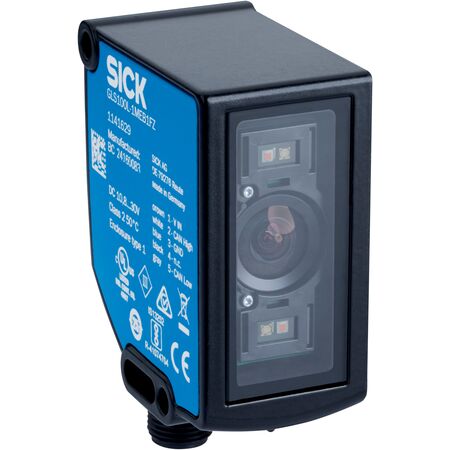

2D Code Reader GLS100L-1MEB1GZ | Fixed Focus & Polarizing Filter | IP65 Rated | by SICK
The GLS100L-1MEB1GZ 2D Code Reader is designed for industrial automation, featuring a fixed optical focus and a polarizing filter for optimal performance. With a reading distance of up to 100 mm and an overrun speed of ≤ 3.5 m/s, it ensures high accuracy and repeatability. Ideal for quality control and logistics, this robust device supports various 2D codes including Data Matrix and QR codes, making it a reliable choice for manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Optical filter: Polarizing filter
- Optical focus: Fixed focus
- LED class: Free group (IEC 62471:2006-07, EN 62471:2008-09)
- Light source: 2 x LED, Visible, Amber 590 nm ± 80 nm and Cyan 500 nm ± 40 nm
- Reading distance: 100 mm
- Overrun speed: ≤ 3.5 m/s
- Repeatability (position): ± 0.1 mm
- Angular accuracy (azimuth): ± 0.1°
- Working range: 100 nm to 100 mm
- Supply voltage: 10.8 V to 30 V
- Power consumption: < 3 W
- Housing material: Zinc diecast
- Enclosure rating: IP65 (EN 60529)
- Protection class: III
- Readable code structures: 2D codes including Data Matrix ECC200 and QR code
- Code qualification standards: ISO/IEC 16022, 15415, 15416, 18004
- Interfaces: IO-Link V1.1, RS-485 with Modbus RTU
- Data transmission rates: 1.2 to 115.2 kbit/s
- Optical indicators: 2 LEDs for voltage supply and code read
- Ambient operating temperature: 0 °C to +50 °C
- Storage temperature: -25 °C to +75 °C
- Permissible relative humidity: 90%, non-condensing
- Dimensions (H x L x W): 52.5mm x 31mm x 62mm
- Weight: 0.25 kg
Key Features
- Complete device with fixed optical focus and polarizing filter
- Internal lighting with 2 LEDs in amber (590 nm) and cyan (500 nm)
- Reading distance up to 100 mm with overrun speed ≤ 3.5 m/s
- High repeatability of ± 0.1 mm and angular accuracy of ± 0.1°
- Supports IO-Link V1.1 and RS-485 serial communication with Modbus RTU
- Robust zinc diecast housing with IP65 rating and protection class III
- Electromagnetic compatibility and vibration resistance certified
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for reading 2D codes such as Data Matrix ECC200 and QR codes
- Quality control and traceability in manufacturing
- Logistics and warehouse management for barcode scanning
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption under 3 W reduces energy usage
- Durable housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GLS100L-1MEB1GZ 2D Code Reader is available for immediate purchase, ideal for industrial automation and quality control applications.
