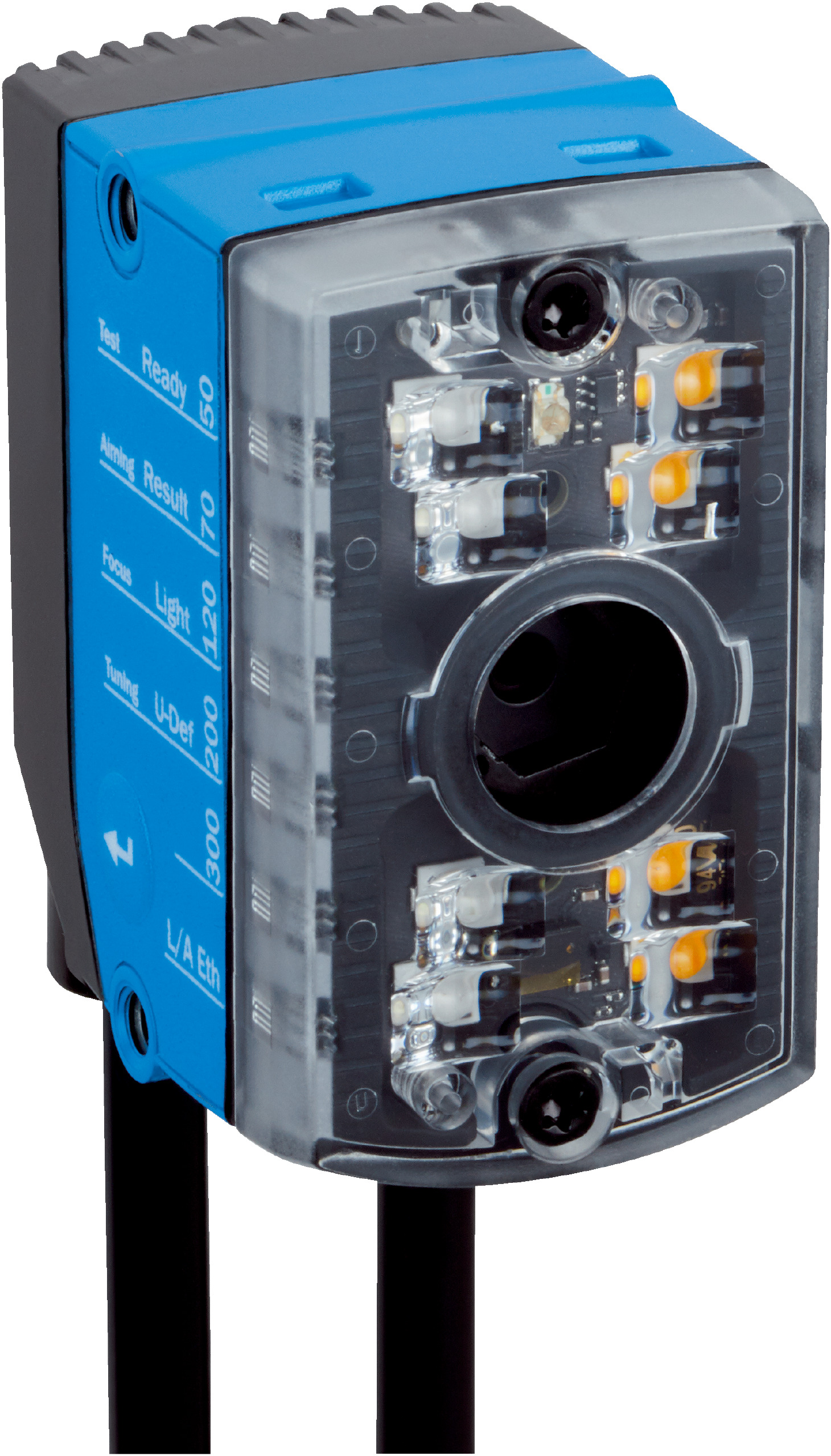

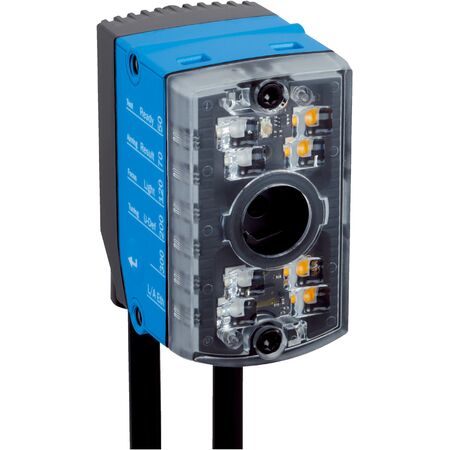

2D Code Reader SICK V2D611G-MMSBE4 | Adjustable Focus | IP54 Rated | Laser Alignment Aid | by SICK
The SICK V2D611G-MMSBE4 2D Code Reader features adjustable manual optical focus and integrated amber and blue LED illumination, making it ideal for industrial automation and precise code reading. With robust IP54-rated housing and support for multiple communication protocols, this scanner ensures high accuracy and reliability in manufacturing and logistics applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Optical focus: Adjustable manual
- Illumination: Integrated amber and blue LEDs (617 nm ±15 nm and 470 nm ±15 nm)
- Feedback spot: Green (525 nm ±15 nm) and red (635 nm ±15 nm) LEDs
- Laser alignment aid: Visible laser 630 nm to 680 nm, Class 1 laser
- Reading distance: 50 mm to 300 mm
- Overrun speed: ≤ 5 m/s
- Position accuracy: ± 0.1 mm
- Position repeatability: ± 0.05 mm
- Connection types: 1 x M12 17-pin male, 1 x M12 4-pin Ethernet female
- Supply voltage: 12 V AC to 24 V DC ±15%
- Power consumption: Typically 3.5 W
- Output current: ≤ 50 mA
- Housing material: Zinc diecast
- Enclosure rating: IP54
- Protection class: III
- Electrical safety: EN 62368
- Readable code structures: 2D codes including Data Matrix ECC200 and QR code
- Code qualification standards: ISO/IEC 16022, 15415, 15416, 18004
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, Serial RS-232, CAN, CANopen
- Digital outputs: 3 physical switching outputs
- Optical indicators: 9 LEDs for status and alignment
- Configuration software: SOPAS ET (version 2018.04 or higher)
- Data storage: Image and data storage via external FTP
- Encoder frequency: Max 300 Hz
- External illumination control: Via digital output (max 24 V trigger)
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- EMC compliance: EN 61000-6-4, EN 61000-6-3, EN 61000-6-2
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 30mm x 50mm x 40mm
- Weight: 0.165 kg
Key Features
- Adjustable manual optical focus for flexible reading distances
- Integrated amber and blue LED illumination for clear code visibility
- Visible laser alignment aid for precise positioning
- High accuracy and repeatability in position measurement
- Supports multiple industrial communication protocols including Ethernet, PROFINET, EtherNet/IP™, CAN, CANopen, and RS-232
- Robust zinc diecast housing with IP54 protection rating
- Complies with laser safety class 1 standards
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor integration and electrical safety standards.
Applications
- Industrial automation for reading 2D codes such as Data Matrix ECC200 and QR codes
- Quality control and traceability in manufacturing processes
- Logistics and warehouse management for barcode scanning
- Integration in production lines requiring precise code reading
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable zinc diecast housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK V2D611G-MMSBE4 2D Code Reader is available for immediate purchase, ideal for industrial automation and manufacturing applications requiring precise code reading.
