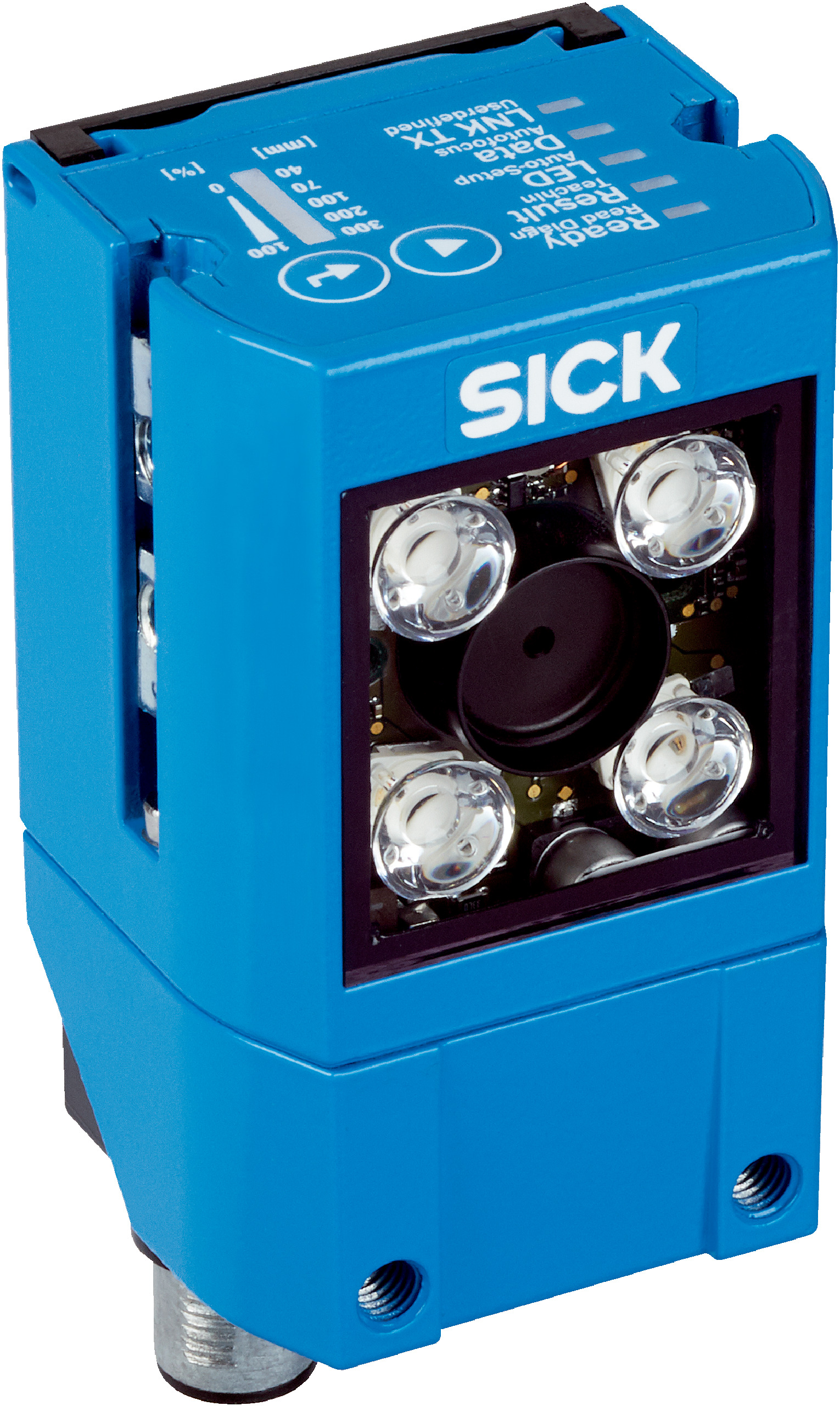

2D Code Reader SICK V2D621G | Teach Auto Focus | IP65 Rated | by SICK
The 2D Code Reader SICK V2D621G is designed for industrial automation, featuring teach auto optical focus and integrated red and blue LED illumination for precise reading. With a reading distance of 70 mm to 500 mm and high accuracy, it's perfect for quality control and traceability in manufacturing processes, ensuring reliable barcode scanning and verification.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Optical focus: Teach auto focus
- Illumination: Integrated red (617 nm ±15 nm) and blue (470 nm ±15 nm) LEDs
- LED class: Class 1 (IEC 62471:2006-07, EN 62471:2008-09)
- Feedback spot: Green LED (525 nm ±15 nm)
- Alignment aid: Visible laser (630 nm to 680 nm), Class 1 laser
- Reading distance: 70 mm to 500 mm
- Overrun speed: ≤ 5 m/s
- Accuracy (position): ± 0.1 mm
- Repeatability (position): ± 0.05 mm
- Connection type: 1 x M12 17-pin male, 1 x M12 4-pin Ethernet female
- Supply voltage: 12 V AC to 24 V DC ±20%
- Power consumption: Typically 4 W
- Output current: ≤ 100 mA
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Protection class: III
- Electrical safety: EN 62368
- MTBF: 75,000 hours
- Readable code structures: 2D codes including Data Matrix ECC200 and QR code
- Code qualification: ISO/IEC 16022, 15415, 15416, 18004
- Data transmission rates: Ethernet 10/100 MBit/s, Serial 0.3 kBaud to 115.2 kBaud
- Configuration software: SOPAS ET (version 2018.04 or higher)
- Memory card: Optional microSD for image and data storage
- Ambient operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Permissible relative humidity: 90%, non-condensing
- Electromagnetic compatibility: EN 61000-6-2 / EN 61000-6-4
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 35.6mm x 71mm x 43mm
- Weight: 0.17 kg
Key Features
- Teach auto optical focus for precise reading
- Integrated red and blue LED illumination
- Visible green LED feedback spot
- Visible laser alignment aid
- Reading distance from 70 mm to 500 mm
- High accuracy and repeatability in position measurement
- Multiple communication interfaces including Ethernet, PROFINET, EtherNet/IP™, Serial, CAN, CANopen, and USB
- IP65 rated aluminum die cast housing for robust industrial use
- Supports image and data storage via microSD card and FTP
- Configurable acoustic and optical indicators
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for reading 2D codes such as Data Matrix ECC200 and QR codes
- Quality control and traceability in manufacturing processes
- Logistics and packaging for barcode scanning and verification
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

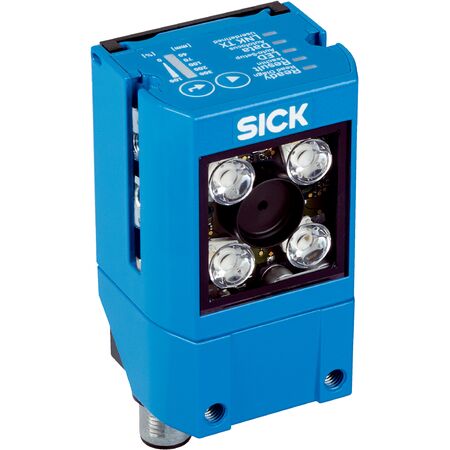

The SICK V2D621G-2MSXBB5 2D Code Reader is available for immediate purchase, ideal for industrial automation and quality control applications.
