2D LiDAR Collision Warning Sensor | IP65/IP67 Rated | Visual & Acoustic Alerts | by SICK
The 2D LiDAR Collision Warning Sensor is designed for vehicle rear end safety, featuring visual and acoustic collision warnings with configurable alarm levels up to 98 dB. With an IP65/IP67 rated enclosure, it’s perfect for both indoor and outdoor applications, ensuring reliable performance in various environments. Ideal for industrial and commercial use, this sensor helps prevent accidents and enhances safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Power consumption: 10 W (≤ 13 W)
- Machine operating voltage: 12 V / 24 V
- Machine reverse signal voltage: 12 V / 24 V
- Enclosure rating: IP65 / IP67
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014)
- Number of sensors: 1
- Number of laserscanners: 1
- Warning zones: 2
- Ambient operating temperature: -20 °C to +50 °C
- Ambient storage temperature: -25 °C to +55 °C
- Visual and acoustic collision warning functions
- Interfaces: USB (micro USB) for parameterization, HMI for signal light bar
- Dimensions (H x L x W): 100mm x 200mm x 150mm
- Weight: 1.53 kg
Key Features
- Visual and acoustic collision warning with configurable audible alarm levels up to 98 dB
- IP65 / IP67 rated enclosure for robust outdoor and indoor use
- Laser class 1 compliant with IEC 60825-1:2014 standards
- Includes 2D LiDAR sensor TiM351 and control module assembly
- Signal light bar with tri-color visual warning
- Mounting kit and connection cables included
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper setup and safety compliance.
Applications
- Indoor and outdoor areas up to 8 meters

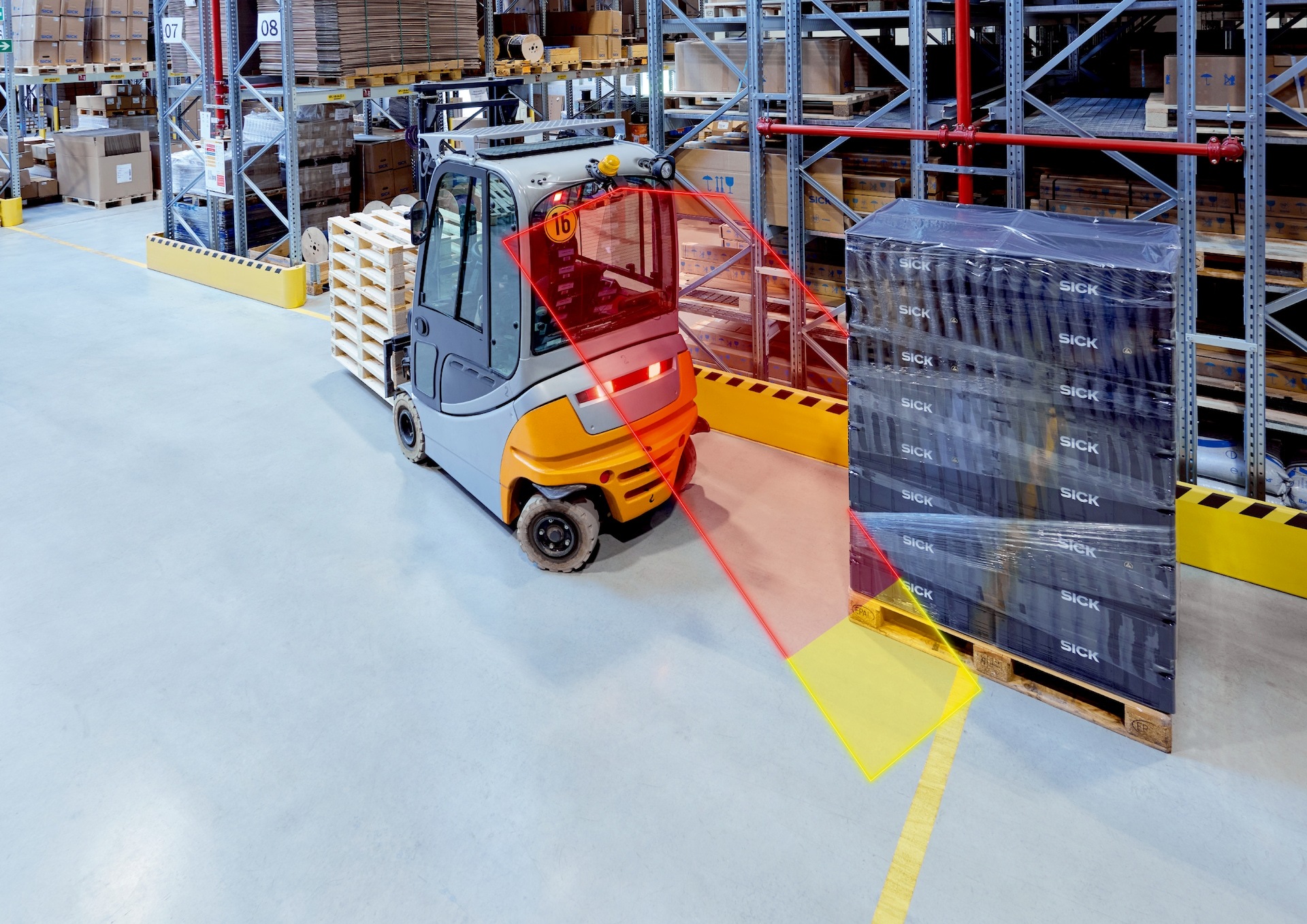

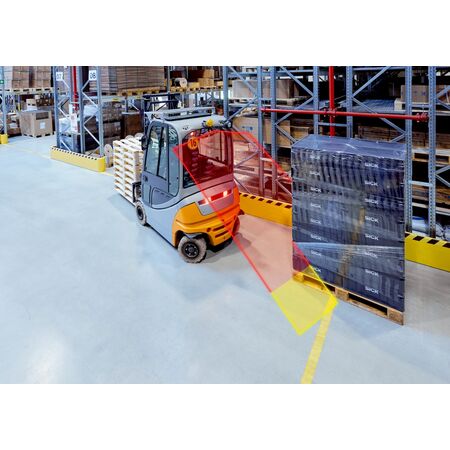

- Vehicle rear end monitoring for internal combustion engine vehicles
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Helps prevent vehicle collisions reducing environmental damage and waste
- Energy-efficient operation with low power consumption of 10 W
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK BAS3501-C 2D LiDAR sensor system is available for immediate purchase, ideal for vehicle safety and collision warning applications in industrial and commercial environments.
