2D LiDAR Collision Warning System BAS3502-C | Dual Sensors | IP65/IP67 Rated | Visual & Acoustic Alerts | by SICK
The 2D LiDAR Collision Warning System BAS3502-C features dual sensors for enhanced detection, providing visual and acoustic collision warnings. Ideal for monitoring vehicle blind spots in both indoor and outdoor environments, this system is designed for internal combustion engine vehicles, ensuring safety with its robust IP65/IP67 rated enclosure and configurable alarm levels up to 98 dB.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Number of sensors: 2
- Power consumption: 10 W (max 13 W)
- Operating voltage: 12 V / 24 V
- Machine reverse signal voltage: 12 V / 24 V
- Enclosure rating: IP65 / IP67
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014)
- Functions: Visual and acoustic collision warning
- Number of laserscanners: 2

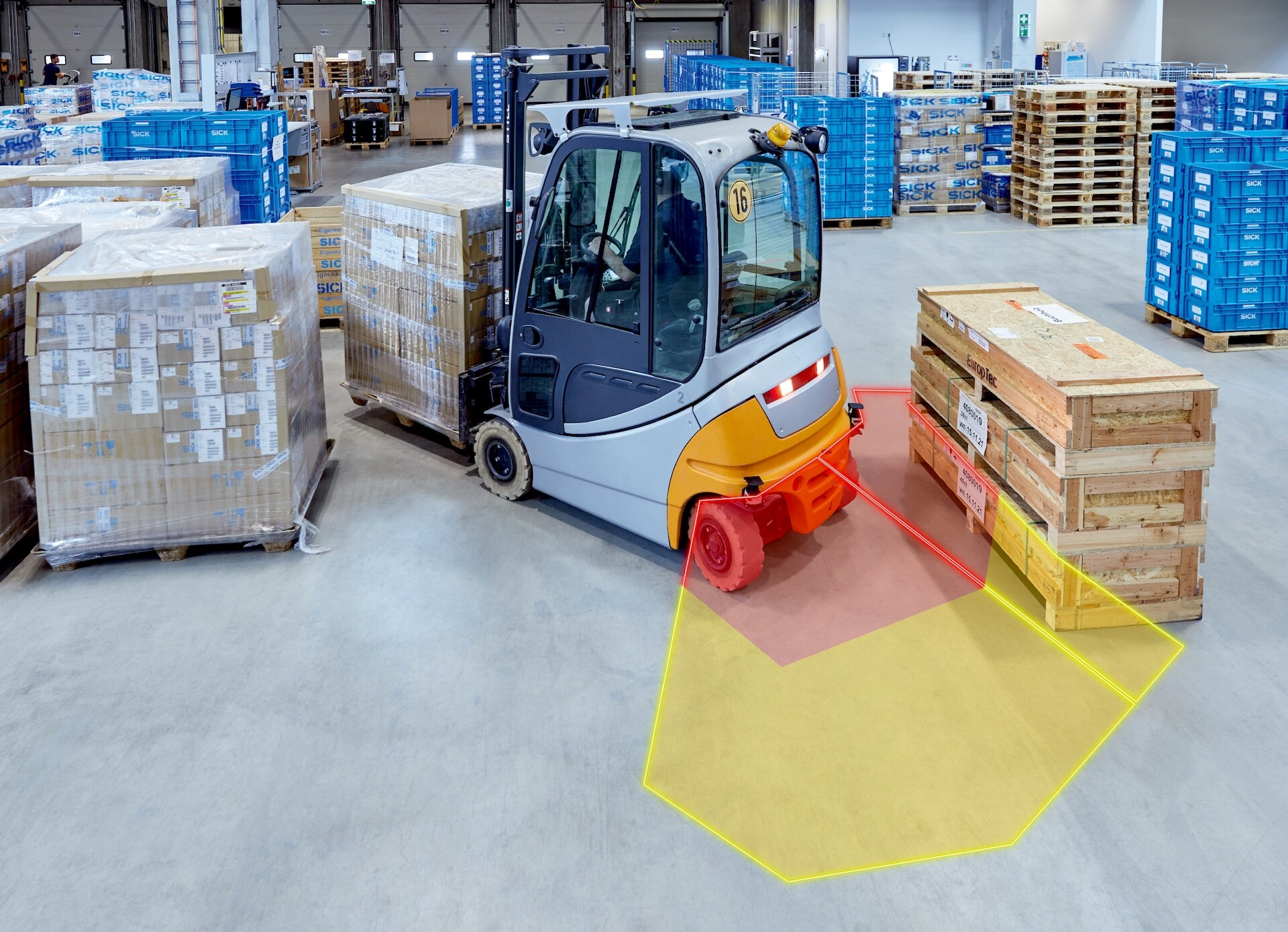

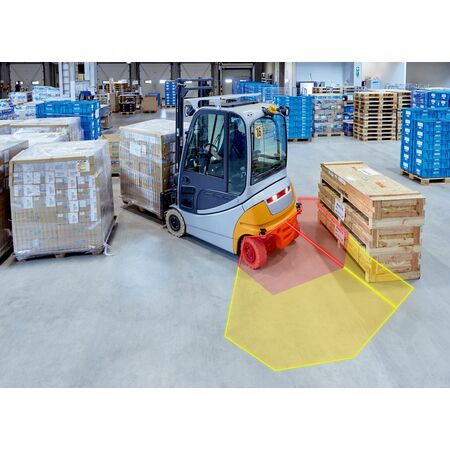

- Monitored area: Vehicle rear end blind spot or side cover
- Warning zones: 2
- Ambient operating temperature: -20 °C to +50 °C
- Storage temperature: -25 °C to +55 °C
- Interfaces: USB (micro USB) for parameterization, HMI for signal light bar control
- Dimensions (H x L x W): 100mm x 200mm x 150mm
- Weight: 2.32 kg
Key Features
- Dual 2D LiDAR sensors for enhanced detection
- Visual and acoustic collision warning with configurable audible alarm levels up to 98 dB
- IP65 / IP67 rated enclosure for robust outdoor and indoor use
- Laser class 1 safety compliant (IEC 60825-1:2014, EN 60825-1:2014)
- Two warning zones for precise hazard detection
- Includes signal light bar with tri-color visual alerts
- Supports USB and HMI interfaces for parameterization and signal light bar control
Professional Installation Requirements
- Professional installation by qualified technicians is recommended to ensure proper sensor alignment and system integration with vehicle electronics.
Applications
- Indoor and outdoor areas up to 8 meters
- Vehicle rear end blind spot or side cover monitoring
- Internal combustion engine vehicles
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Helps prevent vehicle collisions reducing environmental damage and waste
- Durable IP65/IP67 rated design extends product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK BAS3502-C 2D LiDAR Sensor Collision Warning System is available for immediate purchase, ideal for enhancing vehicle safety in industrial and commercial applications.
