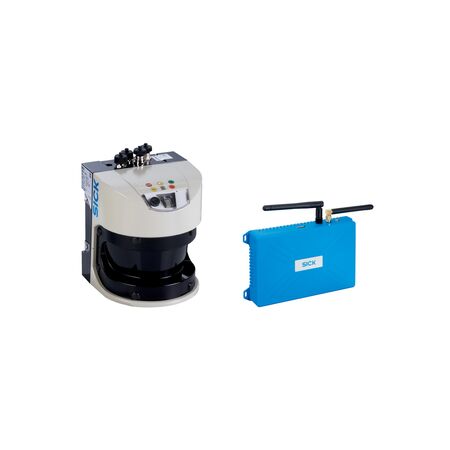

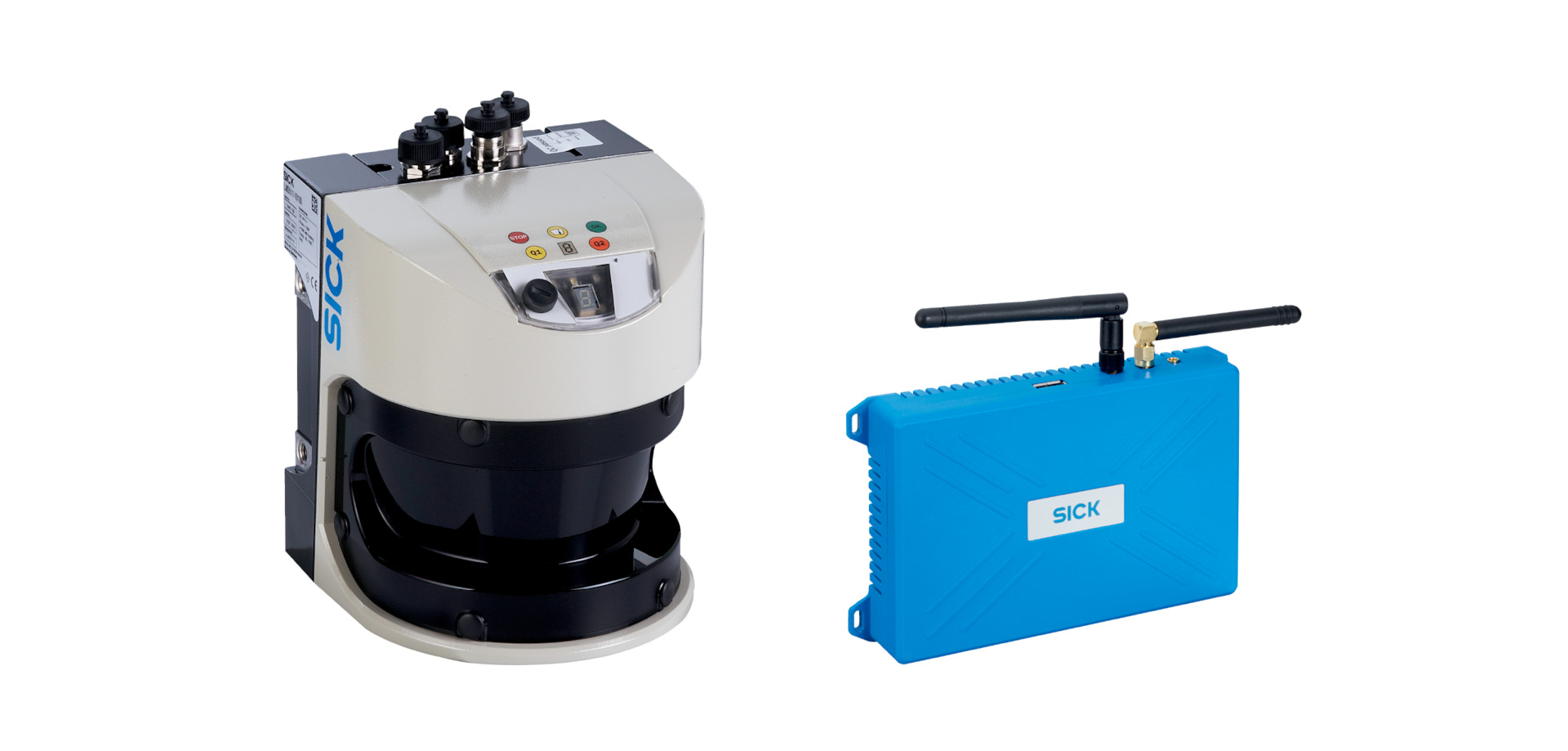

2D LiDAR Overheight Detector | Up to 3 Lane Coverage | 25 Hz Scanning Frequency | IP67 Rated | by SICK
The 2D LiDAR Overheight Detector is designed for vehicle height detection in tunnels and underpasses, featuring up to 3 lane coverage and a scanning frequency of 25 Hz horizontal and 100 Hz vertical. With an IP67 rated enclosure, it ensures reliable operation in harsh environments, making it ideal for traffic monitoring and industrial safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor Type: 2D LiDAR
- Number of Covered Lanes: Up to 3
- Scanning Frequency: 25 Hz (horizontal), 100 Hz (vertical)
- Aperture Angle: 190°
- Installation Height: 5 m to 8 m (vertical), at least 1 m above max vehicle height
- Enclosure Rating: IP67
- Laser Class: 1 (eye-safe, IEC 60825-1:2014)
- Inputs/Outputs: 6 analog inputs, 6 digital I/O, 2 additional digital inputs and outputs
- Data Transmission: Ethernet RJ45, Wireless LAN IEEE 802.11 b/g/n
- Detection Accuracy: ±30 mm at speeds up to 120 km/h
- Minimum Detectable Object Size: 250 mm diameter at 30 km/h (vertical mounting)
- Dimensions (H x L x W): 150mm x 400mm x 300mm
- Weight: 5 kg
Key Features
- 2D LiDAR sensor with up to 3 lane coverage
- Scanning frequency: 25 Hz horizontal, 100 Hz vertical
- 1-scanner solution with 190° aperture angle
- Heating for reliable operation in cold environments
- Stop-and-go functionality for dynamic traffic conditions
- Eye-safe laser class 1 compliant with IEC 60825-1:2014
- IP67 rated enclosure for harsh environments
- High detection accuracy with ±30 mm height measurement accuracy at speeds up to 120 km/h
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is required to ensure correct mounting height, alignment, and electrical connections according to local regulations.
Applications
- Vehicle overheight detection in tunnels and underpasses
- Traffic monitoring and lane assignment
- Industrial safety and automation requiring precise height measurement
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient traffic management reducing congestion and emissions
- Durable IP67 housing reduces need for frequent replacements
- Energy-efficient sensor technology
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK OHD5001-AC 2D LiDAR sensor is available for immediate purchase, ideal for vehicle overheight detection and traffic monitoring applications.
