2D LiDAR Quality Inspection Sensor | IP65 Rated | 8-Core ARM CPU | by SICK
The 2D LiDAR Quality Inspection Sensor is designed for industrial automation and quality inspection, featuring advanced image analysis technology and an 8-core ARM Cortex-A72 CPU. With multiple connectivity options and an IP65 rated enclosure, it ensures reliable performance in demanding environments, making it ideal for manufacturing and object detection applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D LiDAR, image analysis
- Processor: 8-core ARM Cortex-A72 CPU with NEON accelerator and FPGA co-processor
- Power supply: 24 V DC, ±10%
- Power consumption: Typically 45 W
- Output current: SENSOR S1-S4 ≤ 1 A, SENSOR S5-S6 ≤ 2.5 A
- Enclosure rating: IP65
- Electrical safety: EN 61010
- Connectivity: Ethernet (4x M12, 8-pin), PROFINET (2x), EtherNet/IP (2x), USB (Micro-B), CAN, SERIAL, Fieldbus
- Memory card: Industry-grade microSD up to 32 GB
- Operating temperature: 0 °C to +50 °C
- EMC: IEC 61000-6-2:2016 / EN IEC 61000-6-2:2019 / IEC 61000-6-3:2020
- Shock load: IEC 60068-2-27:2008
- Dimensions (H x L x W): 196mm x 176mm x 83mm
- Weight: 2 kg
Key Features
- 2D LiDAR and image analysis technology
- Configurable and programmable with SICK Nova Tool plug-in
- 8-core ARM Cortex-A72 CPU with NEON accelerator and FPGA co-processor
- Supports multiple languages including English, German, French, Italian, Spanish, Japanese, Korean, Chinese
- Multiple connectivity options including Ethernet (4x), PROFINET (2x), EtherNet/IP (2x), USB, CAN, SERIAL, and Fieldbus
- IP65 rated enclosure for robust industrial use
- Power consumption typically 45 W with 24 V DC supply
- Quality Inspection License included with device license bound to hardware ID
- Supports industry-grade microSD memory card up to 32 GB
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper configuration and integration with existing systems.
Applications
- Industrial automation and quality inspection
- Configurable and programmable 2D LiDAR applications
- Image analysis and object detection in manufacturing
- Integration with LMS4000 sensor systems
Standards & Compliance
- Complies with AS/NZS 61010 for electrical safety
Environmental Benefits
- Energy-efficient design with low power consumption (typ. 45 W)
- Durable IP65 rated housing reduces need for frequent replacements
- Supports digital and networked communication reducing wiring and material waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

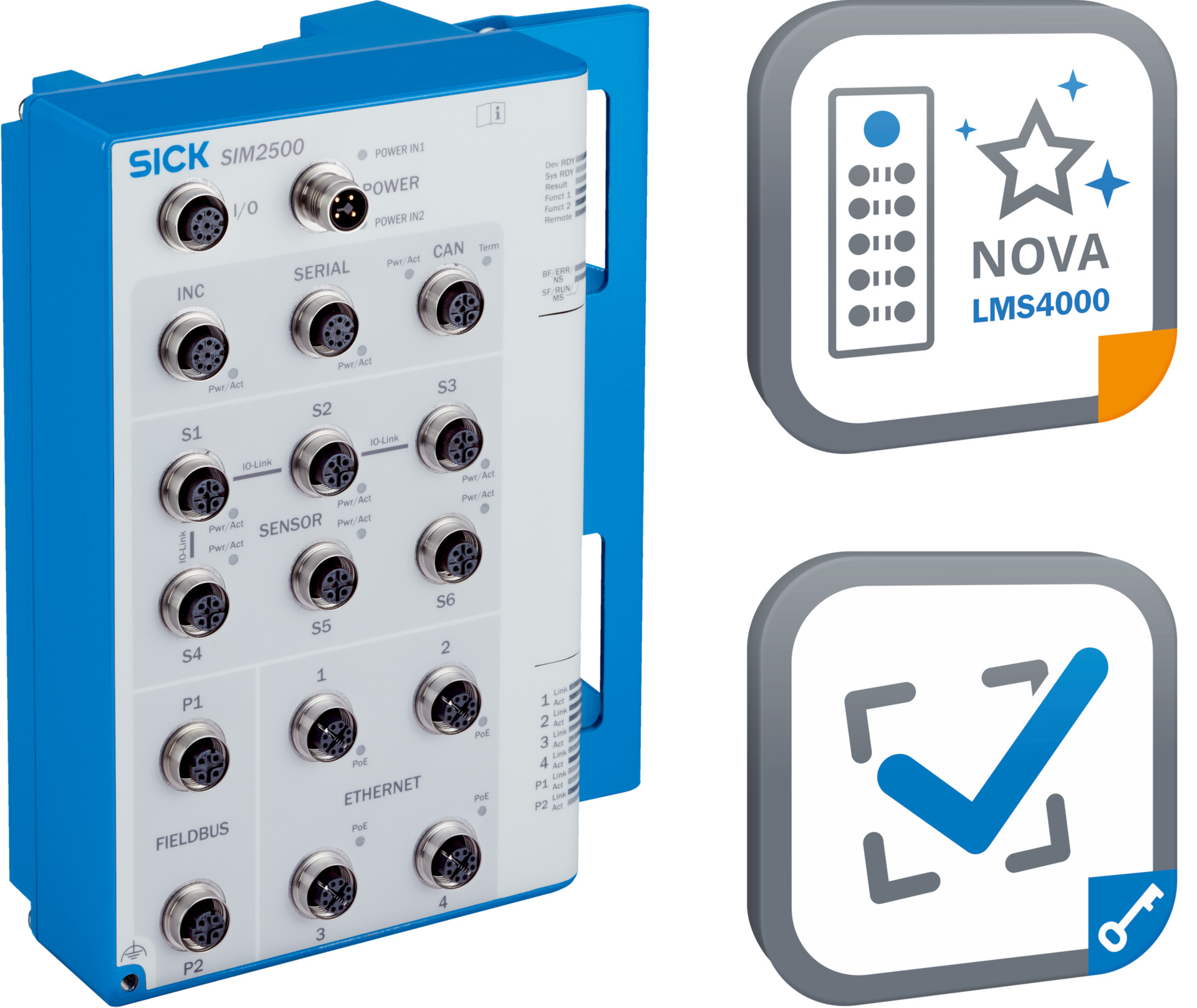

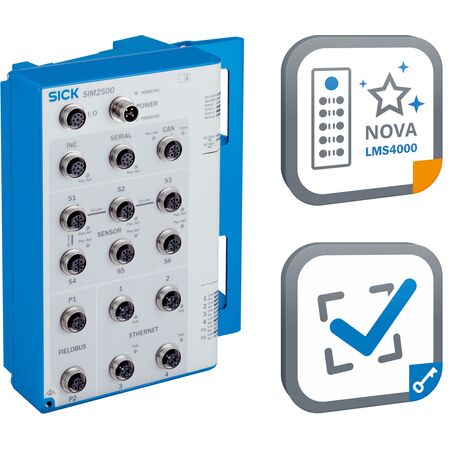

The SICK SIM2500-2AX1G10 Nova LMS4000 QI sensor is available for immediate purchase, ideal for industrial automation and quality inspection applications.
