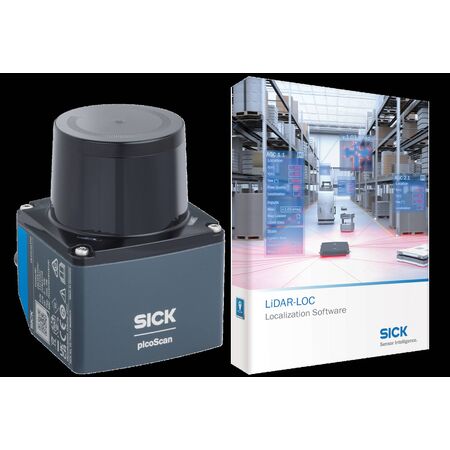

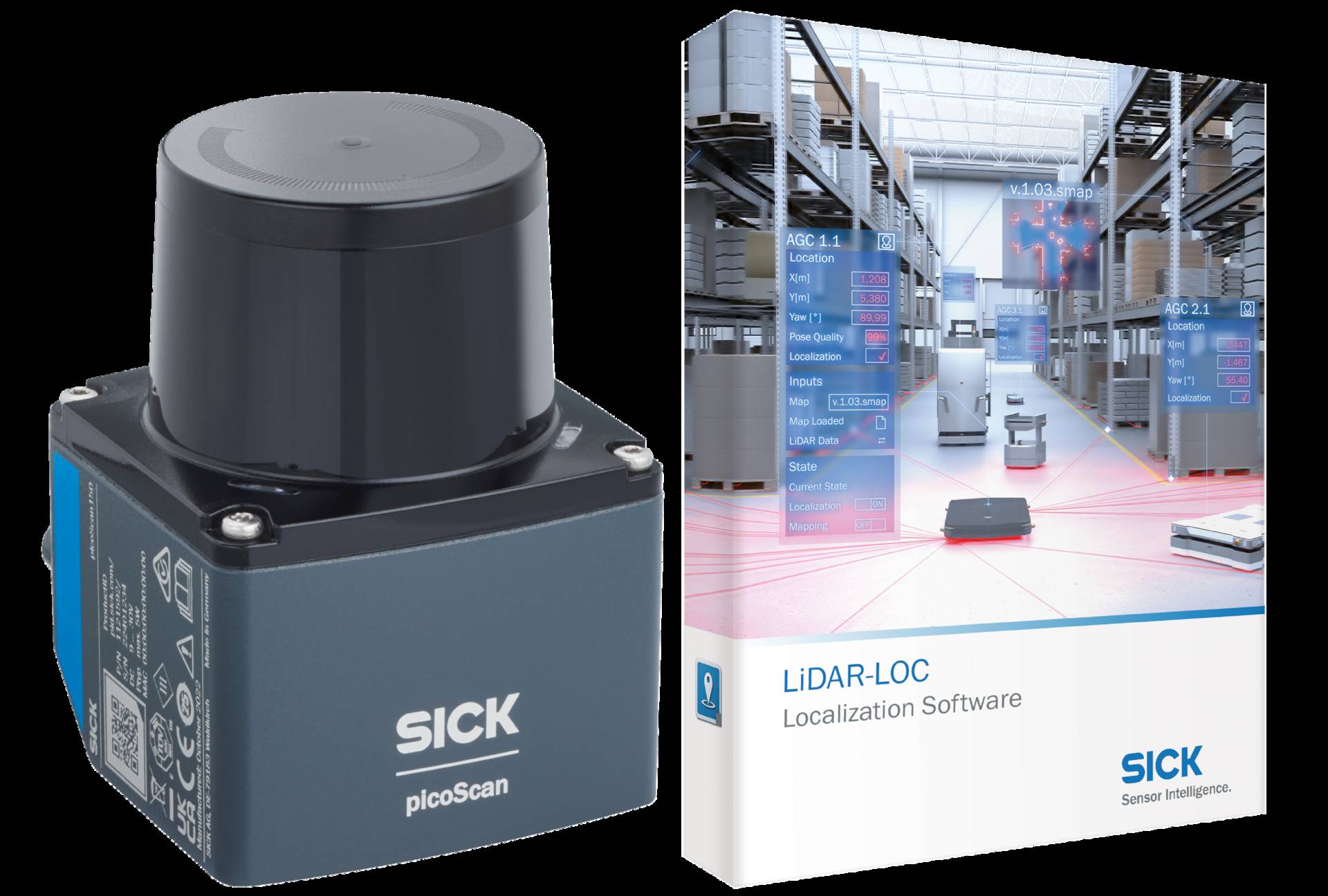

2D LiDAR Sensor picoScan100 | 120m Scanning Range | 0.05° Angular Resolution | Multi-Echo Technology | by SICK
The picoScan100 2D LiDAR sensor offers an impressive scanning range of up to 120 meters and fine angular resolution from 0.05° to 0.5°. Ideal for industrial automation and robotics, it features multi-echo technology for reliable detection of small and dark objects, making it perfect for navigation and mapping applications. With a compact design and rugged housing, it’s built to perform in harsh environments while ensuring high measurement accuracy.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 2D LiDAR Sensor picoScan100 | 120m Scanning Range | 0.05° Angular Resolution | Multi-Echo Technology | by SICK
Brand: SICK
SKU: 1141397
Alternatively Known As: 2D LiDAR sensor, picoScan LiDAR, SICK LiDAR sensor, industrial LiDAR scanner
Technical Specifications
- Scanning range: 120 m
- Horizontal aperture angle: 276°
- Angular resolution (horizontal): 0.05°, 0.1°, 0.125°, 0.25°, 0.33°, 0.5°
- Scanning frequency: 15 Hz, 20 Hz, 25 Hz
- Digital inputs/outputs: 6
- Integrated applications: 2D Object Detection, LiDAR-LOC 2, Virtual Line Navigation, CODE-LOC, output of measurement data
- Digital add-ons: Dynamic Sensing Profile package, Multi-echo technology, Data Reduction & Data Preparation package, Reliability package, LMDscandata format, Reflector detection, IMU (Inertial Measurement Unit)
- Scan rate: 15 Hz to 50 Hz
- Multi-echo technology for enhanced detection
- Drivers available for ROS, C++, and Python
- Dimensions (H x L x W): 100mm x 150mm x 100mm
- Weight: 1.5 kg
Key Features
- Large scanning range up to 120 m with 90% remission
- Fine angular resolution from 0.05° to 0.5°
- High measurement accuracy with low noise and flat scan field
- Multi-echo technology for reliable detection of small and dark objects
- Dynamic Sensing Profiles for adaptable sensing
- Scan rate adjustable between 15 Hz and 50 Hz
- Compact and rugged housing suitable for harsh ambient conditions
- Integrated applications including contour localization and virtual line navigation
- Supports multiple communication interfaces and drivers (ROS, C++, Python)
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with LiDAR sensor integration and electrical safety standards to ensure optimal performance and compliance.
Applications
- Industrial automation for indoor and outdoor environments
- Object detection and contour localization
- Navigation and mapping in robotics
- Safety and monitoring in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient sensor design reduces power consumption during operation
- Enables automation that can optimize resource use and reduce waste in industrial processes
Warranty Information
Standard manufacturer warranty of 2 years covering defects in materials and workmanship.
Available Now
The SICK picoScan100 2D LiDAR sensor is available for immediate purchase, ideal for industrial automation, robotics, and safety applications.
