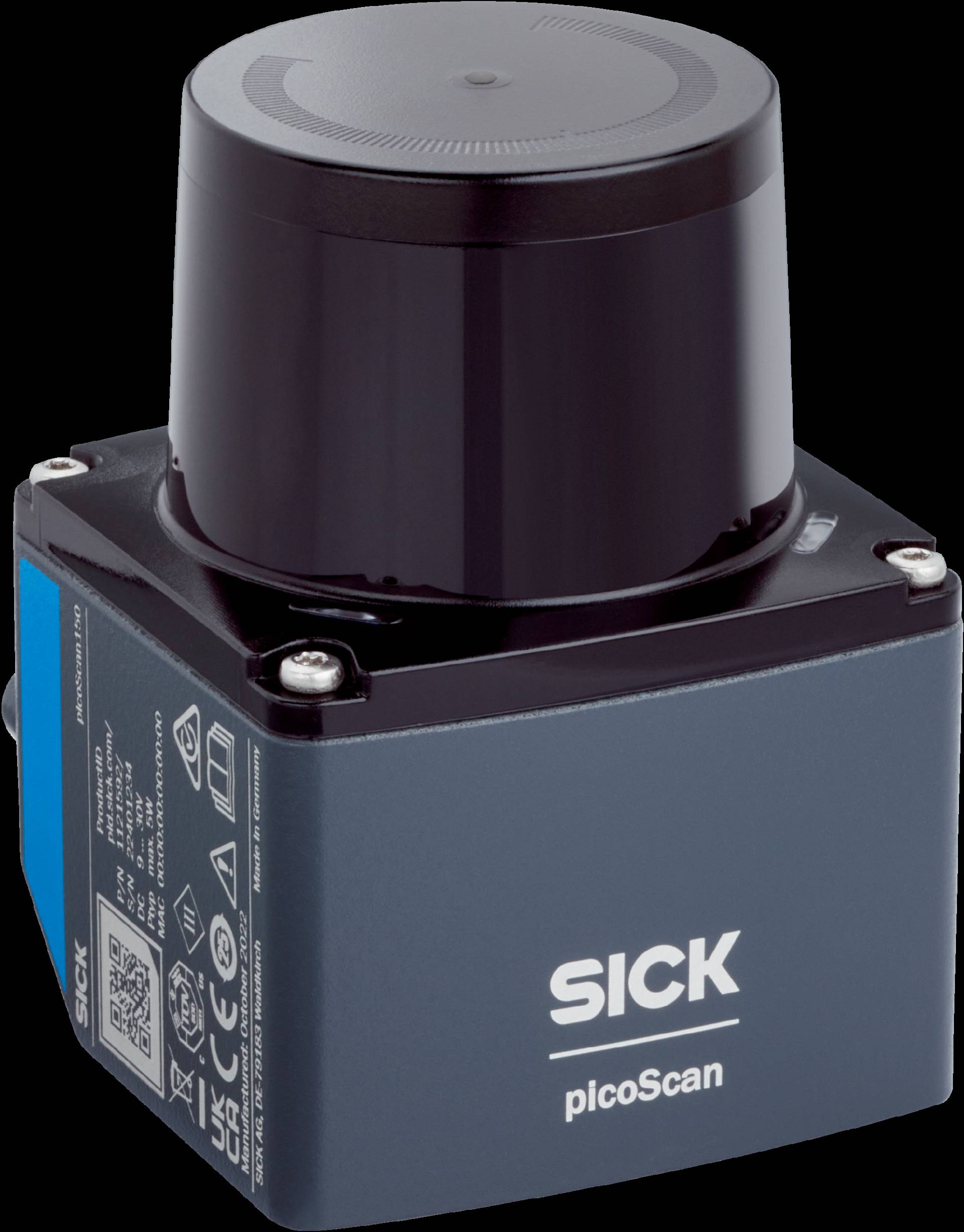

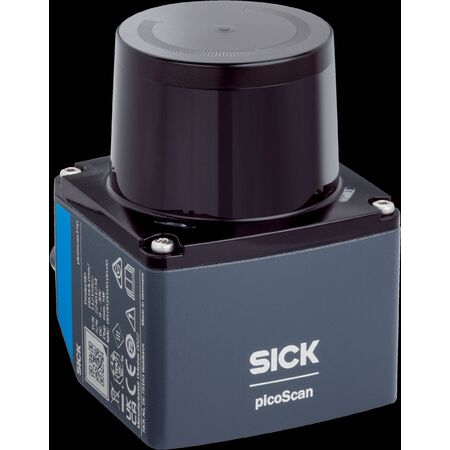

2D LiDAR Sensor picoScan100 | 120m Scanning Range | 0.05° Angular Resolution | Multi-Echo Technology | by SICK
The picoScan100 2D LiDAR sensor offers an impressive scanning range of up to 120 meters and fine angular resolution from 0.05° to 0.5°. Perfect for industrial automation and robotics, it features multi-echo technology for reliable object detection and contour localization. Built for harsh environments, this sensor is ideal for applications requiring precise 2D scanning and measurement data processing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 2D LiDAR Sensor picoScan100 | 120m Scanning Range | 0.05° Angular Resolution | Multi-Echo Technology | by SICK
Brand: SICK
SKU: 1134610
Alternatively Known As: 2D LiDAR sensor, picoScan LiDAR, SICK LiDAR sensor, industrial LiDAR scanner
Technical Specifications
- Scanning range: 120 m
- Horizontal aperture angle: 276°
- Angular resolution (horizontal): 0.05°, 0.1°, 0.125°, 0.25°, 0.33°, 0.5°, 1°
- Scanning frequency: 15 Hz to 50 Hz
- Digital inputs/outputs: 3
- Integrated applications: output of measurement data, 2D Object Detection, 2D Object Detection Advanced
- Digital add-ons: Dynamic Sensing Profile package, Data Reduction & Data Preparation package, Reliability package, Multi-echo technology, LMDscandata format, Reflector detection, IMU, PTP, Native ROS2
- Drivers supported: ROS, C++, Python
- Dimensions (H x L x W): 100mm x 150mm x 100mm
- Weight: 1.5 kg
Key Features
- Large scanning range up to 120 m with 90% remission
- Fine angular resolution from 0.05° to 0.5°
- High measurement accuracy with low noise and flat scan field
- Scan rate adjustable between 15 Hz and 50 Hz
- Multi-echo technology for reliable detection
- Compact and rugged housing suitable for harsh ambient conditions
- Dynamic Sensing Profiles for adaptable sensing
- Integrated applications including 2D Object Detection and contour localization
- Supports drivers for ROS, C++, and Python
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with LiDAR sensor integration and industrial automation systems to ensure optimal performance and safety.
Applications
- Industrial automation for indoor and outdoor environments
- Object detection including small and dark objects
- Contour localization and measurement data processing
- Robotics and autonomous systems requiring precise 2D scanning
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient sensor design reduces power consumption in industrial applications
- Durable rugged housing extends product lifespan, reducing waste
- Enables precise automation which can optimize resource use and reduce emissions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK picoScan100 2D LiDAR sensor is available for immediate purchase, ideal for industrial automation and robotics applications requiring precise and reliable 2D scanning.
