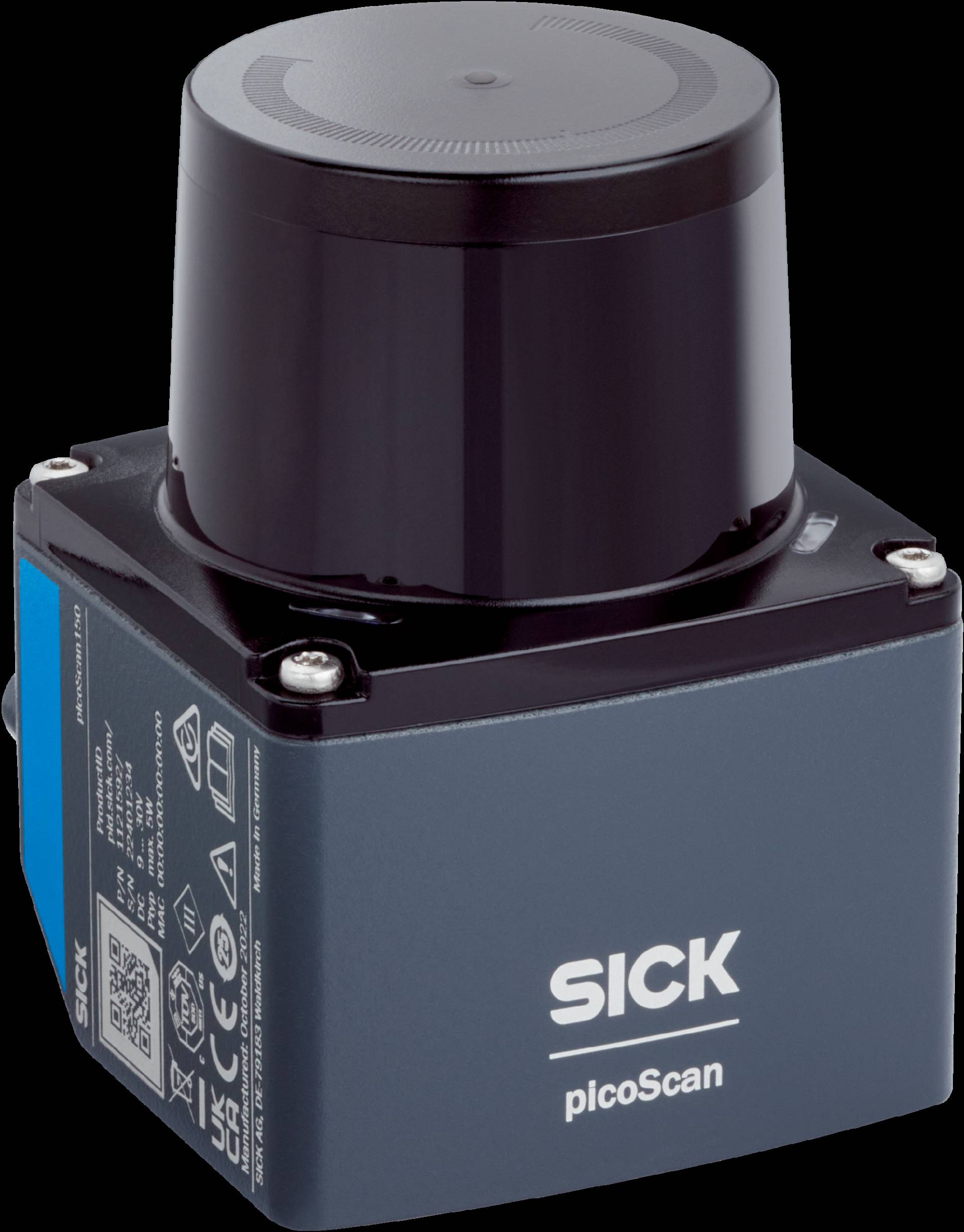

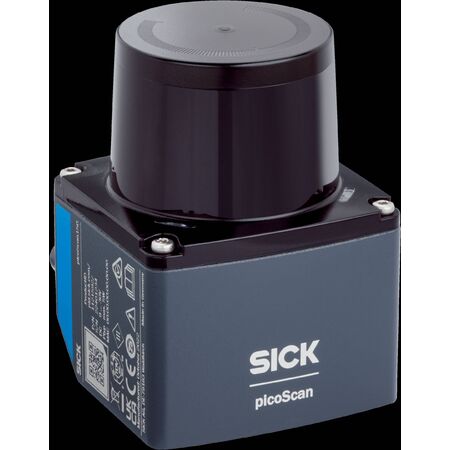

2D LiDAR Sensor picoScan100 | 120m Scanning Range | 0.05° Angular Resolution | Multi-Echo Technology | by SICK
The picoScan100 2D LiDAR sensor offers an impressive scanning range of up to 120 meters and fine angular resolution from 0.05° to 0.5°. Ideal for industrial automation and robotics, it features high sensitivity and multi-echo technology for reliable object detection, even in challenging environments. With integrated applications and support for multiple communication interfaces, this compact sensor is built for precision and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 2D LiDAR Sensor picoScan100 | 120m Scanning Range | 0.05° Angular Resolution | Multi-Echo Technology | by SICK
Brand: SICK
SKU: 1142273
Alternatively Known As: 2D LiDAR sensor, picoScan LiDAR, SICK LiDAR sensor, industrial LiDAR scanner, compact LiDAR sensor
Technical Specifications
- Scanning range: up to 120 m
- Horizontal aperture angle: 276°
- Angular resolution (horizontal): 0.05°, 0.1°, 0.125°, 0.25°, 0.33°, 0.5°, 1°
- Scanning frequency: 15 Hz to 50 Hz
- Digital inputs/outputs: 6
- Integrated applications: 2D Object Detection, 2D Object Detection Advanced, output of measurement data
- Digital add-ons: Dynamic Sensing Profile package, Data Reduction & Data Preparation package, Reliability package, Multi-echo technology, LMDscandata format, Reflector detection, IMU, PTP, Native ROS2
- Drivers supported: ROS, C++, Python
- Dimensions (H x L x W): 100mm x 150mm x 100mm
- Weight: 1.5 kg
Key Features
- Large scanning range up to 120 m with 90% remission
- Fine angular resolution from 0.05° to 0.5°
- High sensitivity and multi-echo technology for reliable detection
- Dynamic Sensing Profiles for adaptable sensing
- High measurement accuracy with low noise and flat scan field
- Scan rate adjustable from 15 Hz to 50 Hz
- Compact and rugged housing suitable for harsh conditions
- Integrated applications including contour localization
- Supports multiple communication interfaces and drivers (ROS, C++, Python)
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with LiDAR sensor integration and electrical wiring standards to ensure optimal performance and safety.
Applications
- Industrial automation for indoor and outdoor environments
- Object detection including small and dark objects
- Contour localization and measurement data processing
- Robotics and autonomous vehicle navigation
- Safety and monitoring in harsh ambient conditions
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation reduces power consumption in industrial settings
- Durable rugged housing extends product lifespan, reducing waste
- Enables automation that can optimize resource use and reduce emissions
Warranty Information
Standard manufacturer warranty of 2 years covering defects in materials and workmanship.
Available Now
The SICK picoScan100 2D LiDAR sensor is available for immediate purchase, ideal for industrial automation, robotics, and safety applications requiring precise and reliable object detection.
