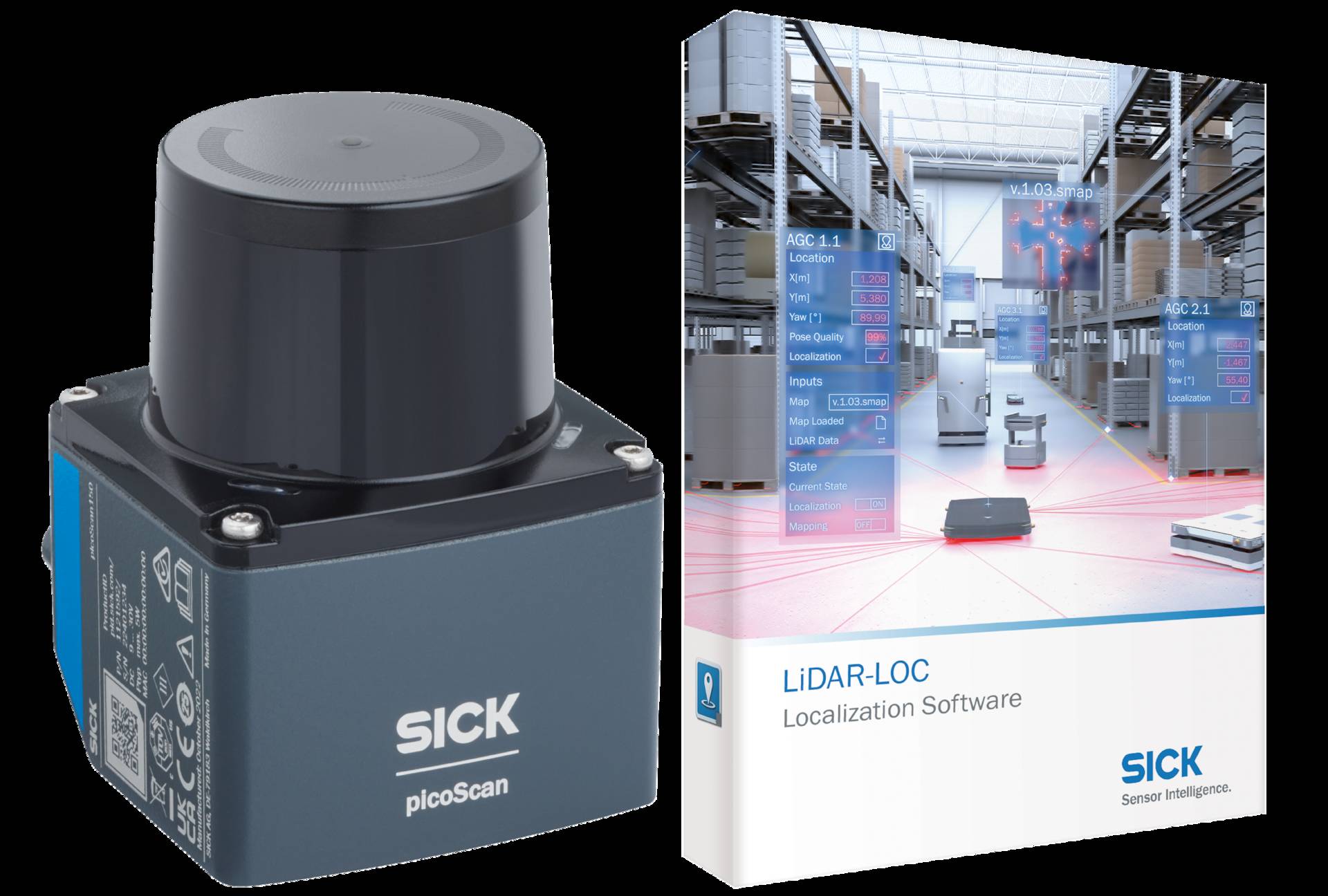

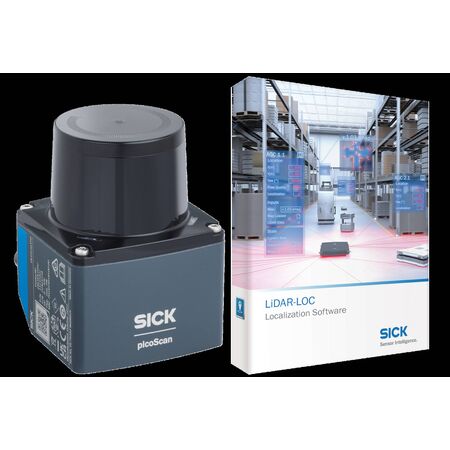

2D LiDAR Sensor picoScan100 | 25m Scanning Range | Multi-Echo Technology | Compact & Rugged | by SICK
The picoScan100 2D LiDAR sensor offers a scanning range of 25m, extendable to 75m with 90% remission, making it ideal for industrial automation and robotics. With features like multi-echo technology and a compact, rugged design, it ensures high measurement accuracy and reliable object detection in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 2D LiDAR Sensor picoScan100 | 25m Scanning Range | Multi-Echo Technology | Compact & Rugged | by SICK
Brand: SICK
SKU: 1141395
Alternatively Known As: 2D LiDAR sensor, picoScan LiDAR, SICK LiDAR sensor, industrial LiDAR scanner
Technical Specifications
- Scanning range: 25 m (standard), up to 75 m with 90% remission
- Horizontal aperture angle: 276°
- Angular resolution (horizontal): 0.25°, 0.33°
- Scanning frequency: 15 Hz, 25 Hz
- Digital inputs/outputs: 6
- Integrated applications: 2D Object Detection, LiDAR-LOC 2, Virtual Line Navigation, CODE-LOC
- Digital add-ons: Multi-echo technology, Data Reduction & Preparation package, Reliability package, LMDscandata format, Reflector detection, IMU
- Communication interfaces: Various standard industrial protocols supported
- Dimensions (H x L x W): 50mm x 150mm x 100mm
- Weight: 1.5 kg
Key Features
- Compact, rugged housing suitable for harsh ambient conditions
- Large scanning range up to 75 m with 90% remission
- Fine angular resolution from 0.5° to 0.05°
- High measurement accuracy with low noise and flat scan field
- Scan rate adjustable between 15 Hz and 50 Hz
- Multi-echo technology for reliable detection of small and dark objects
- Supports drivers for ROS, C++, and Python
- Integrated applications such as contour localization on picoScan150-LOC
Professional Installation Requirements
- Installation by qualified personnel with experience in industrial sensor integration and electrical safety is recommended to ensure optimal performance and compliance.
Applications
- Industrial automation for indoor and outdoor environments
- Object detection and contour localization
- Navigation and mapping in robotics
- Safety and monitoring in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient sensor design reduces power consumption in industrial automation
- Enables precise monitoring and control to optimize resource use and reduce waste
Warranty Information
Standard manufacturer warranty of 1 year covering defects in materials and workmanship.
Available Now
The SICK picoScan100 2D LiDAR sensor is available for immediate purchase, ideal for industrial automation, robotics, and safety monitoring applications.
