Trade Discount 20%

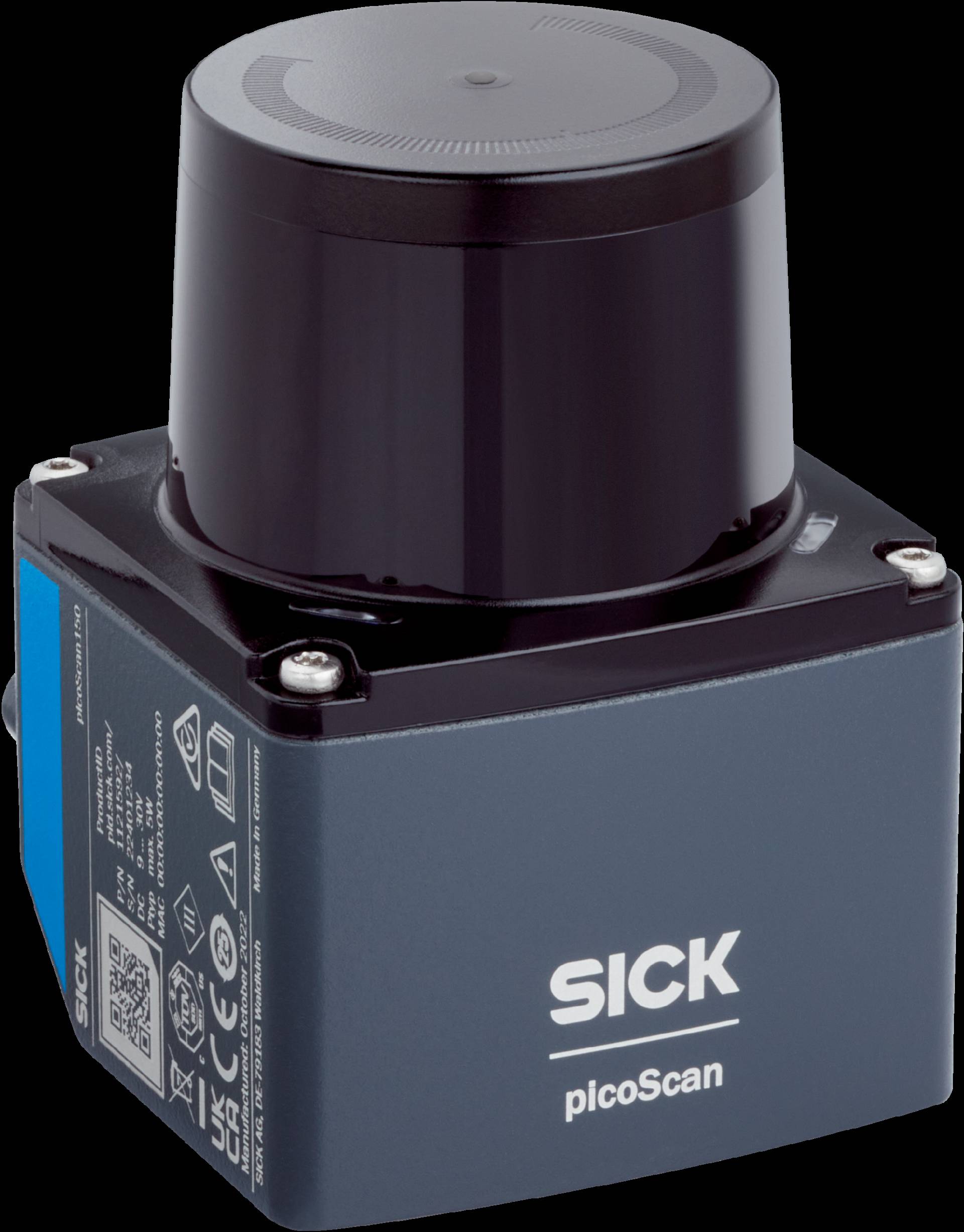

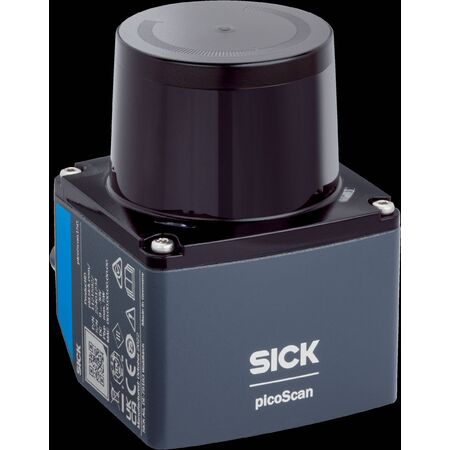

2D LiDAR Sensor picoScan100 | 25m Scanning Range | Multi-Echo Technology | Compact Design | by SICK
The picoScan100 2D LiDAR sensor is engineered for precision in industrial automation and robotics, featuring a scanning range of 25m (up to 75m with 90% remission) and multi-echo technology for reliable detection of small objects. Its compact and rugged design makes it suitable for harsh environments, ensuring high measurement accuracy and low noise for optimal performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 2D LiDAR Sensor picoScan100 | 25m Scanning Range | Multi-Echo Technology | Compact Design | by SICK
Brand: SICK
SKU: 1142270
Alternatively Known As: 2D LiDAR sensor, picoScan LiDAR, industrial LiDAR sensor, compact LiDAR scanner
Technical Specifications
- Scanning range: 25 m (up to 75 m with 90% remission)
- Horizontal aperture angle: 276°
- Angular resolution (horizontal): 0.25°, 0.33°, 1°
- Scanning frequency: 15 Hz, 25 Hz
- Integrated applications: output of measurement data, 2D object detection
- Digital add-ons: Data Reduction & Preparation package, Reliability package, Multi-echo technology, LMDscandata format, Reflector detection, IMU, PTP
- Digital inputs/outputs: 6
- Multi-echo technology for enhanced detection
- Dimensions (H x L x W): 50mm x 150mm x 100mm
- Weight: 1.5 kg
Key Features
- Compact, rugged housing suitable for harsh environments
- Large scanning range up to 75 m with 90% remission
- Fine angular resolution from 0.5° to 0.05°
- High measurement accuracy with low noise and flat scan field
- Scan rate adjustable between 15 Hz and 50 Hz
- Multi-echo technology for reliable detection of small and dark objects
- Supports integrated applications like contour localization
- Compatible with drivers for ROS, C++, and Python
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with LiDAR sensor integration and electrical wiring standards to ensure optimal performance and safety.
Applications
- Industrial automation for indoor and outdoor environments
- Object detection and contour localization
- Measurement and mapping in robotics and logistics
- Safety and monitoring in harsh ambient conditions
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient sensor design reduces power consumption
- Enables precise automation reducing waste and improving resource efficiency
Warranty Information
Standard manufacturer warranty of 2 years covering defects in materials and workmanship.
Available Now
The SICK picoScan100 2D LiDAR sensor is available for immediate purchase, ideal for industrial automation, robotics, and safety applications.
