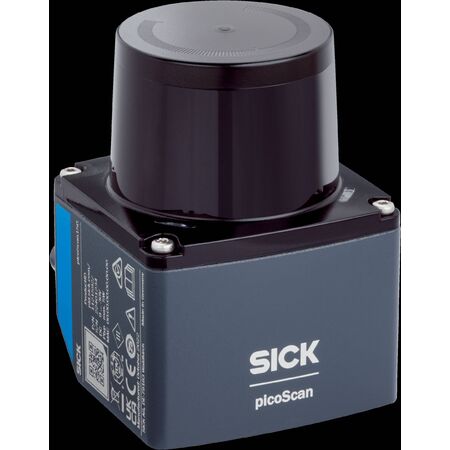

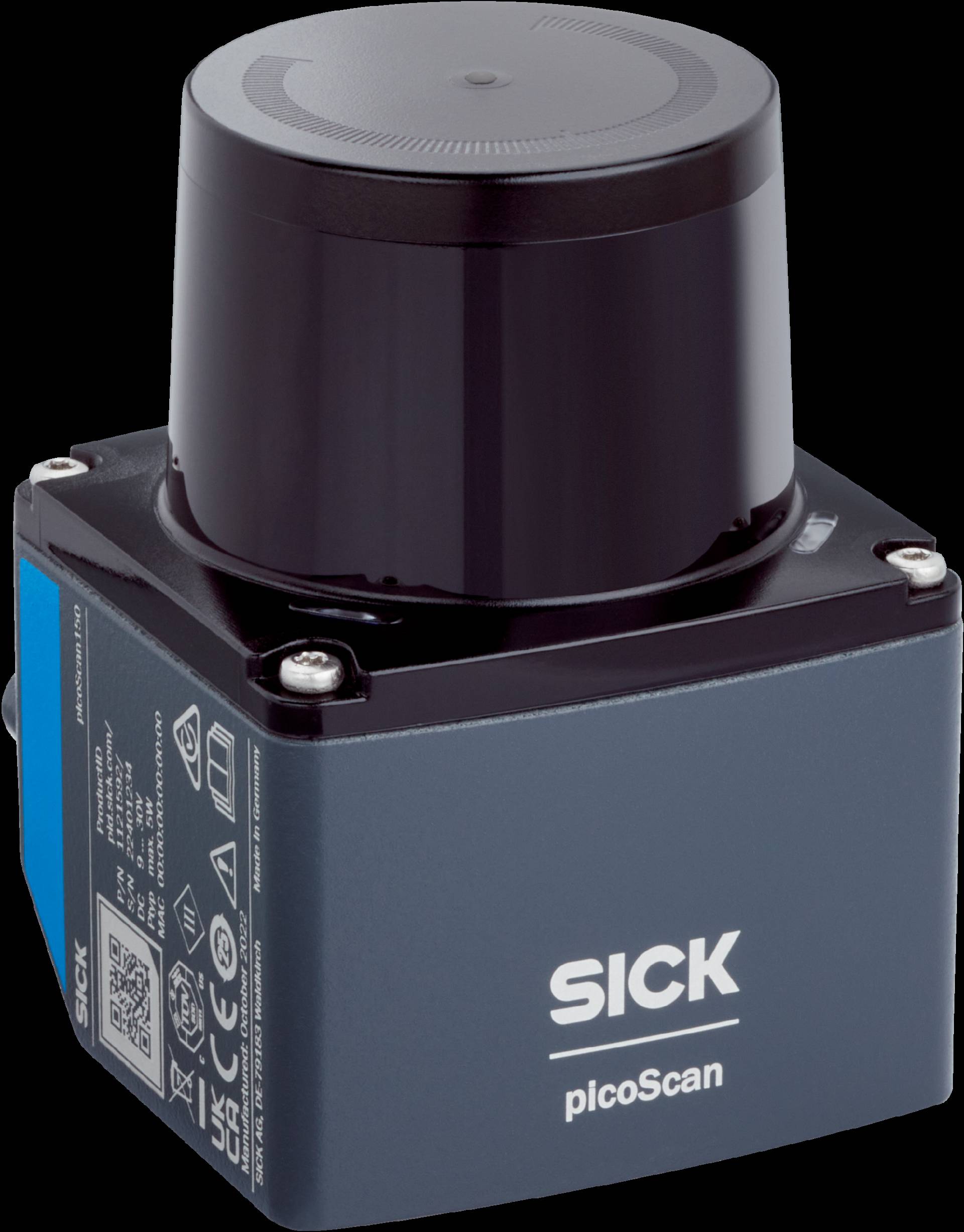

2D LiDAR Sensor picoScan100 | 25m Scanning Range | Compact & Rugged | by SICK
The picoScan100 2D LiDAR sensor offers a scanning range of 25m, extendable to 75m with 90% remission, making it ideal for industrial automation and robotics. With a compact and rugged design, it excels in harsh environments, providing high measurement accuracy and adjustable scan rates. Perfect for object detection and contour localization, this sensor is a reliable choice for precise 2D scanning applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 2D LiDAR Sensor picoScan100 | 25m Scanning Range | Compact & Rugged | by SICK
Brand: SICK
SKU: 1134608
Alternatively Known As: 2D LiDAR sensor, picoScan LiDAR, SICK LiDAR sensor, industrial LiDAR scanner
Technical Specifications
- Scanning range: 25 m (up to 75 m with 90% remission)
- Horizontal aperture angle: 276°
- Angular resolution (horizontal): 0.25°, 0.33°, 1° selectable
- Scanning frequency: 15 Hz, 25 Hz
- Integrated application: output of measurement data, 2D object detection
- Digital add-ons: Data Reduction & Preparation package, Reliability package, Multi-echo technology, LMDscandata format, Reflector detection, IMU, PTP
- Digital inputs/outputs: 3
- Dimensions (H x L x W): 50mm x 150mm x 100mm
- Weight: 1.5 kg
Key Features
- Compact, rugged housing suitable for harsh environments
- Large scanning range up to 75 m with 90% remission
- Fine angular resolution from 0.5° to 0.05°
- High measurement accuracy with low noise and flat scan field
- Scan rate adjustable between 15 Hz and 50 Hz
- Multi-echo technology for reliable detection of small and dark objects
- Supports drivers for ROS, C++, and Python
- Integrated applications such as contour localization on picoScan150-LOC
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with LiDAR sensor integration and electrical safety standards.
Applications
- Industrial automation for indoor and outdoor environments
- Object detection and contour localization
- Measurement and scanning in harsh ambient conditions
- Robotics and autonomous systems requiring precise 2D scanning
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient sensor design reduces power consumption during operation
- Enables precise automation reducing waste and improving resource efficiency
Warranty Information
Standard manufacturer warranty of 2 years covering defects in materials and workmanship.
Available Now
The SICK picoScan100 2D LiDAR sensor is available now for immediate purchase. Ideal for industrial automation, robotics, and object detection applications.
