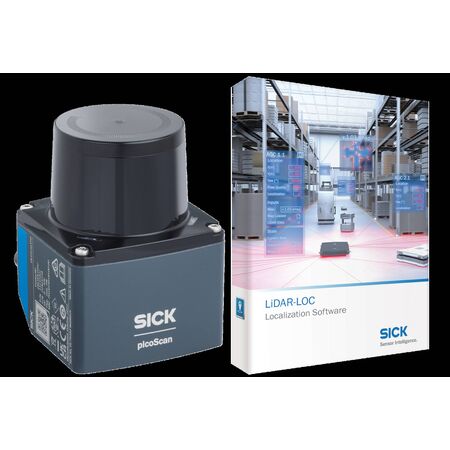

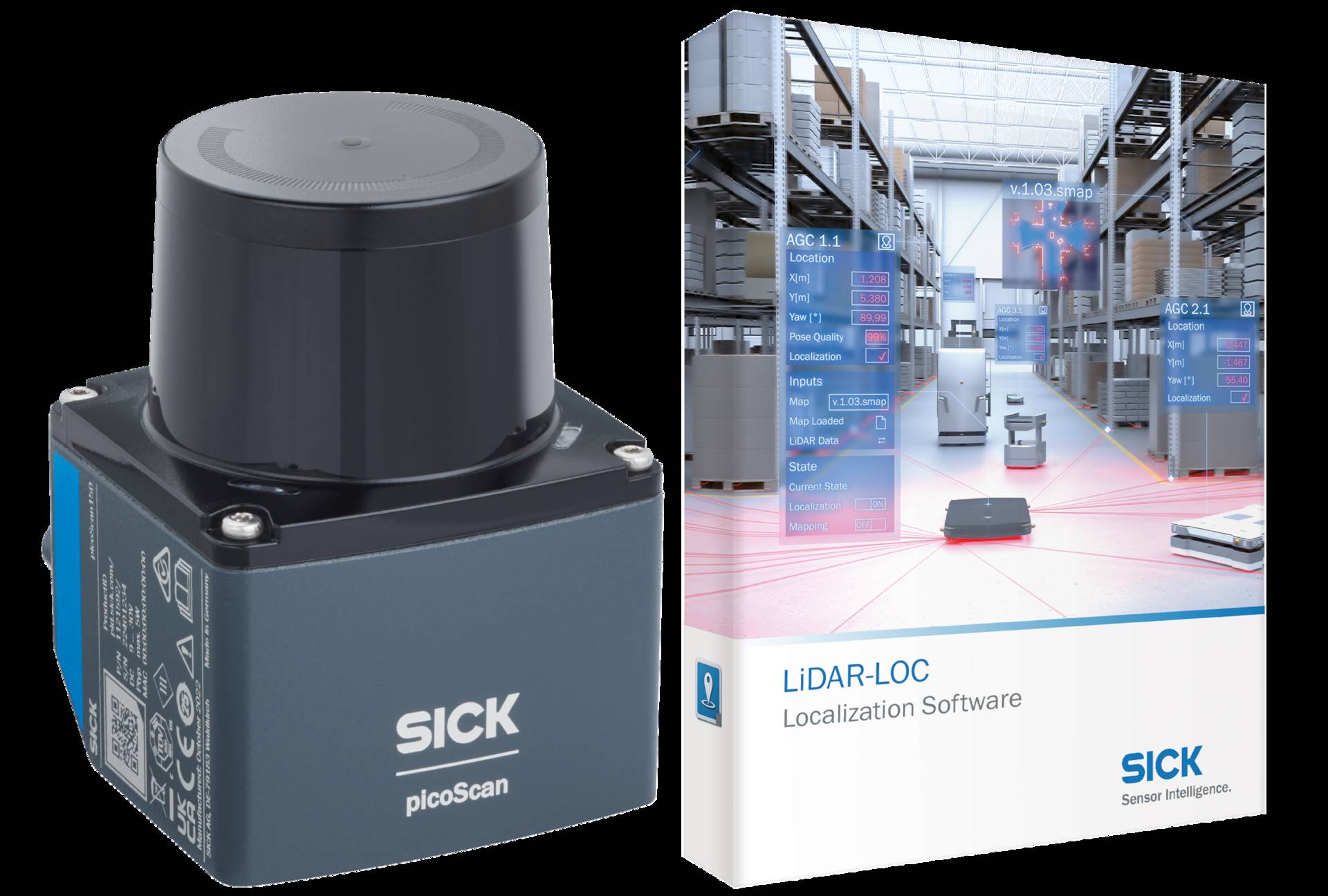

2D LiDAR Sensor picoScan100 | 60m Scanning Range | 276° Horizontal Aperture | Multi-Echo Technology | by SICK
The picoScan100 2D LiDAR sensor offers a remarkable 60m scanning range and a 276° horizontal aperture, making it ideal for industrial automation and robotics applications. With features like multi-echo technology for reliable detection and dynamic sensing profiles, this sensor ensures high measurement accuracy and optimized performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 2D LiDAR Sensor picoScan100 | 60m Scanning Range | 276° Horizontal Aperture | Multi-Echo Technology | by SICK
Brand: SICK
SKU: 1141396
Alternatively Known As: 2D LiDAR sensor, picoScan LiDAR, SICK LiDAR sensor, industrial LiDAR scanner
Technical Specifications
- Scanning range: 60 m
- Horizontal aperture angle: 276°
- Angular resolution (horizontal): 0.1°, 0.25°
- Scanning frequency: 15 Hz, 20 Hz, 25 Hz
- Digital inputs/outputs: 6
- Integrated applications: 2D Object Detection, LiDAR-LOC 2, Virtual Line Navigation, CODE-LOC, output of measurement data
- Digital add-ons: Dynamic Sensing Profile package, Multi-echo technology, Data Reduction & Data Preparation package, Reliability package, LMDscandata data format, Reflector detection, IMU (Inertial Measurement Unit)
- Dimensions (H x L x W): 50mm x 150mm x 100mm
- Weight: 1.5 kg
Key Features
- Compact, rugged housing suitable for harsh ambient conditions
- Large scanning range up to 75 m with 90% remission
- Fine angular resolution from 0.5° to 0.05°
- High measurement accuracy with low noise and flat scan field
- Scan rate adjustable between 15 Hz and 50 Hz
- Multi-echo technology for reliable detection of small and dark objects
- Dynamic Sensing Profiles for optimized sensing
- Supports drivers for ROS, C++, and Python
- Integrated applications such as contour localization on picoScan150-LOC
Professional Installation Requirements
- Installation by a qualified technician or engineer experienced with LiDAR sensors and industrial automation systems is recommended to ensure optimal performance and safety.
Applications
- Industrial automation for indoor and outdoor environments
- Object detection and contour localization
- Navigation and mapping in robotics
- Safety and monitoring in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient sensor design reduces power consumption in industrial automation
- Enables precise monitoring and control to optimize resource use and reduce waste
Warranty Information
Standard manufacturer warranty of 2 years covering defects in materials and workmanship.
Available Now
The SICK picoScan100 2D LiDAR sensor is available for immediate purchase, ideal for industrial automation, robotics, and safety monitoring applications.
