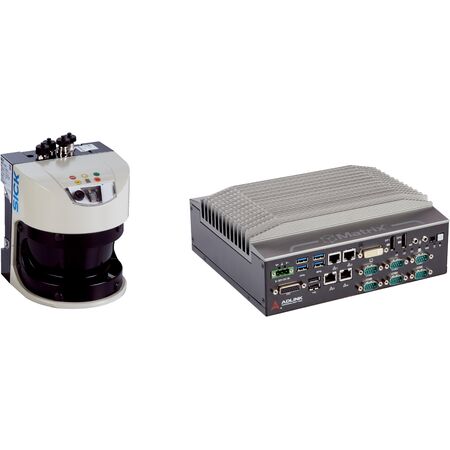

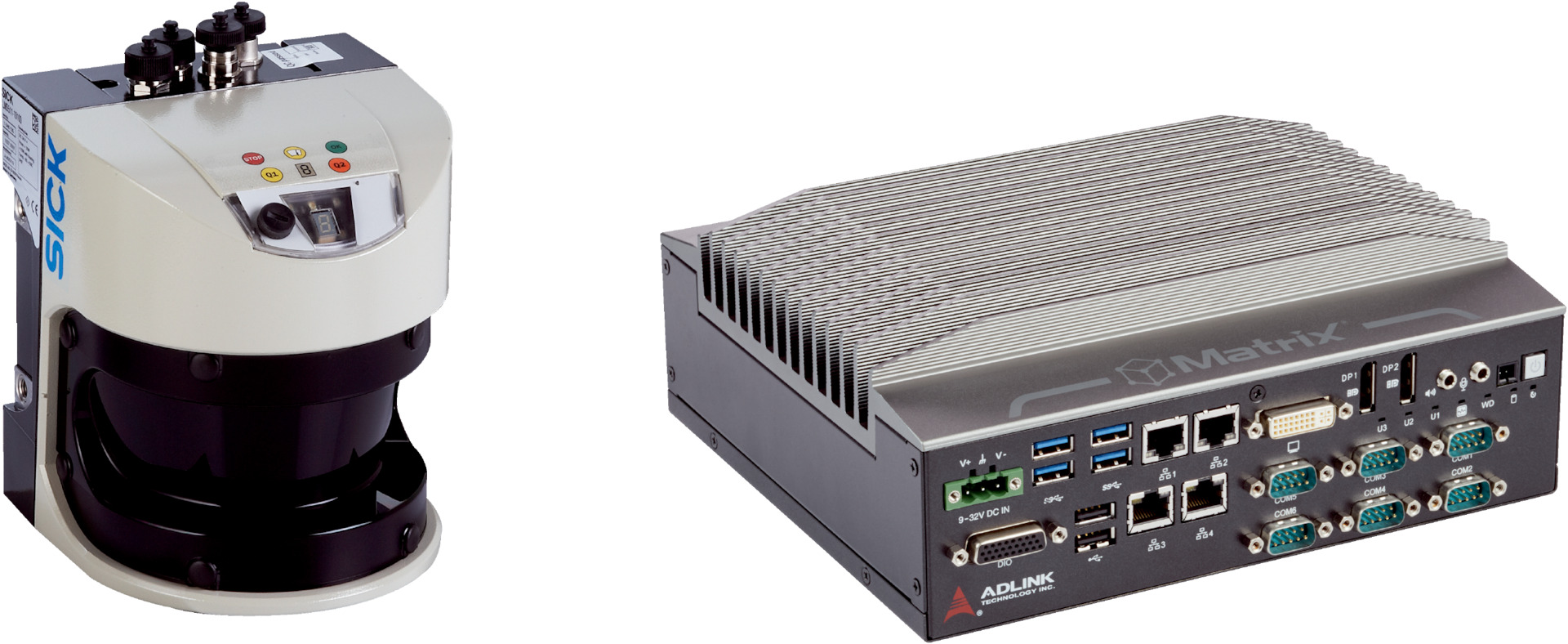

2D LiDAR Vehicle Measurement Sensor LVM5552 | 190° Aperture Angle | 40m Max Range | Stop-and-Go Functionality | by SICK
The 2D LiDAR Vehicle Measurement Sensor LVM5552 is designed for precise traffic monitoring and vehicle classification. With a 190° aperture angle and a maximum range of 40 meters, it captures detailed vehicle data including load volume and dimensions. Ideal for logistics and traffic management, this sensor features stop-and-go functionality and an internal Application Processing Unit with 256 GB SSD for reliable performance in dynamic environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Number of covered lanes: 1
- Vehicle data: Load volume, vehicle classes, driving direction, lane assignment, confidence level, 3D point cloud, vehicle dimensions
- Sensor type: 2D LiDAR
- Recommended distance between max vehicle height and sensor: ≥ 1 m
- Stop-and-go functionality: Yes
- Max range with 10% reflectivity: 40 m
- Aperture angle: 190°
- Laser class: 1, eye-safe (IEC 60825-1:2014)
- Heating: Included
- Internal computer: Application Processing Unit (APU)
- Internal memory: 256 GB SSD
- Installation position: Overhead or side
- Installation height: 5 m to 8 m, at least 1 m higher than max vehicle height
- Minimum object size: 1 m x 0.6 m x 0.6 m
- Maximum object size: 32 m x 3.5 m x 5 m
- Minimum detectable object: 190 mm x 130 mm x 130 mm
- Output data: Vehicle data including load volumes
- Dimensions (H x L x W): 200mm x 300mm x 400mm
- Weight: 15 kg
Key Features
- 2D LiDAR sensor with 190° aperture angle
- Max range of 40 m with 10% reflectivity
- Stop-and-go functionality for dynamic traffic conditions
- Internal Application Processing Unit (APU) with 256 GB SSD memory
- Eye-safe laser class 1 compliant with IEC 60825-1:2014
- Heating for reliable operation in various environments
- Overhead or side installation at 5 to 8 meters height
Professional Installation Requirements
- Installation should be performed by qualified professionals experienced with LiDAR sensor systems and electrical installations to ensure optimal performance and safety.
Applications
- Traffic monitoring and vehicle classification
- Load volume measurement for logistics and transport
- Vehicle dimension detection for tolling and access control
- Stop-and-go traffic management systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables efficient traffic management reducing congestion and emissions
- Supports optimized logistics through accurate load volume measurement
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK LVM5552 2D LiDAR Vehicle Measurement Sensor is available for immediate purchase, ideal for traffic management, logistics, and vehicle classification applications.
