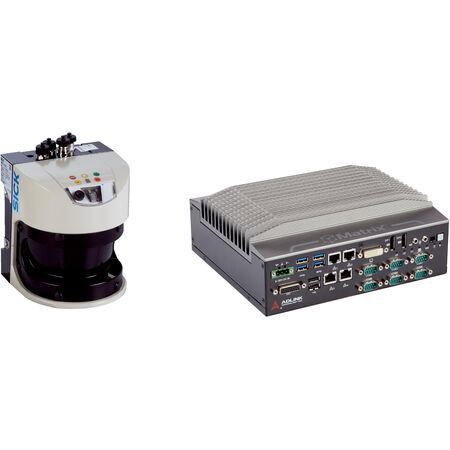

2D LiDAR Vehicle Measurement Sensor LVM5532 | 190° Aperture Angle | 40m Max Range | Stop-and-Go Functionality | by SICK
The 2D LiDAR Vehicle Measurement Sensor LVM5532 is designed for accurate traffic monitoring and vehicle classification. With a 190° aperture angle and a maximum range of 40 meters, it excels in dynamic traffic conditions. Ideal for logistics and industrial applications, this sensor features an internal Application Processing Unit (APU) with 256 GB SSD memory, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 2D LiDAR Vehicle Measurement Sensor LVM5532 | 190° Aperture Angle | 40m Max Range | Stop-and-Go Functionality | by SICK
Brand: SICK
SKU: 1114632
Alternatively Known As: Vehicle LiDAR Sensor, Traffic LiDAR, Vehicle Measurement Sensor, 2D LiDAR Vehicle Detector
Technical Specifications
- Number of covered lanes: 1
- Vehicle data: Residual load volume, vehicle classes, driving direction, lane assignment, confidence level, 3D point cloud, vehicle dimensions
- Sensor type: 2D LiDAR
- Recommended distance between max vehicle height and sensor: ≥ 1 m
- Stop-and-go functionality: Yes
- Max range with 10% reflectivity: 40 m
- Aperture angle: 190°
- Laser class: 1, eye-safe (IEC 60825-1:2014)
- Heating: Yes
- Internal computer: Application Processing Unit (APU)
- Internal memory: 256 GB SSD
- Installation position: Overhead or at the side
- Installation height: 5 m to 8 m, at least 1 m higher than max vehicle height
- Minimum object size: 1 m x 0.6 m x 0.6 m
- Maximum object size: 32 m x 3.5 m x 5 m
- Minimum detectable object: 190 mm x 130 mm x 130 mm
- Output data: Vehicle data including load volumes
- Dimensions (H x L x W): 150mm x 400mm x 300mm
- Weight: 15 kg
Key Features
- 2D LiDAR sensor with 190° aperture angle
- Max range of 40 m with 10% reflectivity
- Stop-and-go functionality for dynamic traffic conditions
- Eye-safe laser class 1 compliant with IEC 60825-1:2014
- Internal Application Processing Unit (APU) with 256 GB SSD memory
- Heating for reliable operation in various environments
Professional Installation Requirements
- Professional installation by qualified technicians is recommended to ensure correct sensor positioning and compliance with electrical safety standards.
Applications
- Traffic monitoring and vehicle classification
- Logistics and warehouse vehicle tracking
- Industrial vehicle load volume measurement
- Overhead or side installation for vehicle data collection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient traffic management reducing congestion and emissions
- Supports optimized vehicle load monitoring to improve fuel efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK LVM5532 2D LiDAR Vehicle Measurement Sensor is available for immediate purchase, ideal for traffic monitoring, logistics, and industrial vehicle measurement applications.
