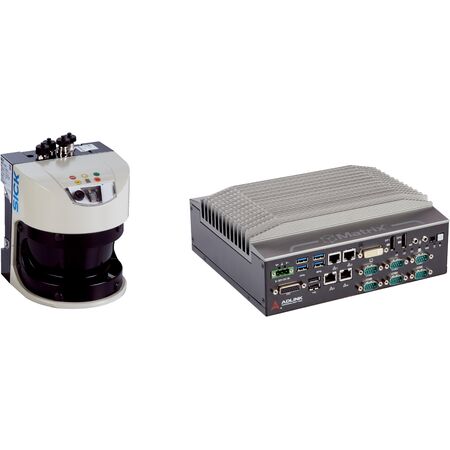

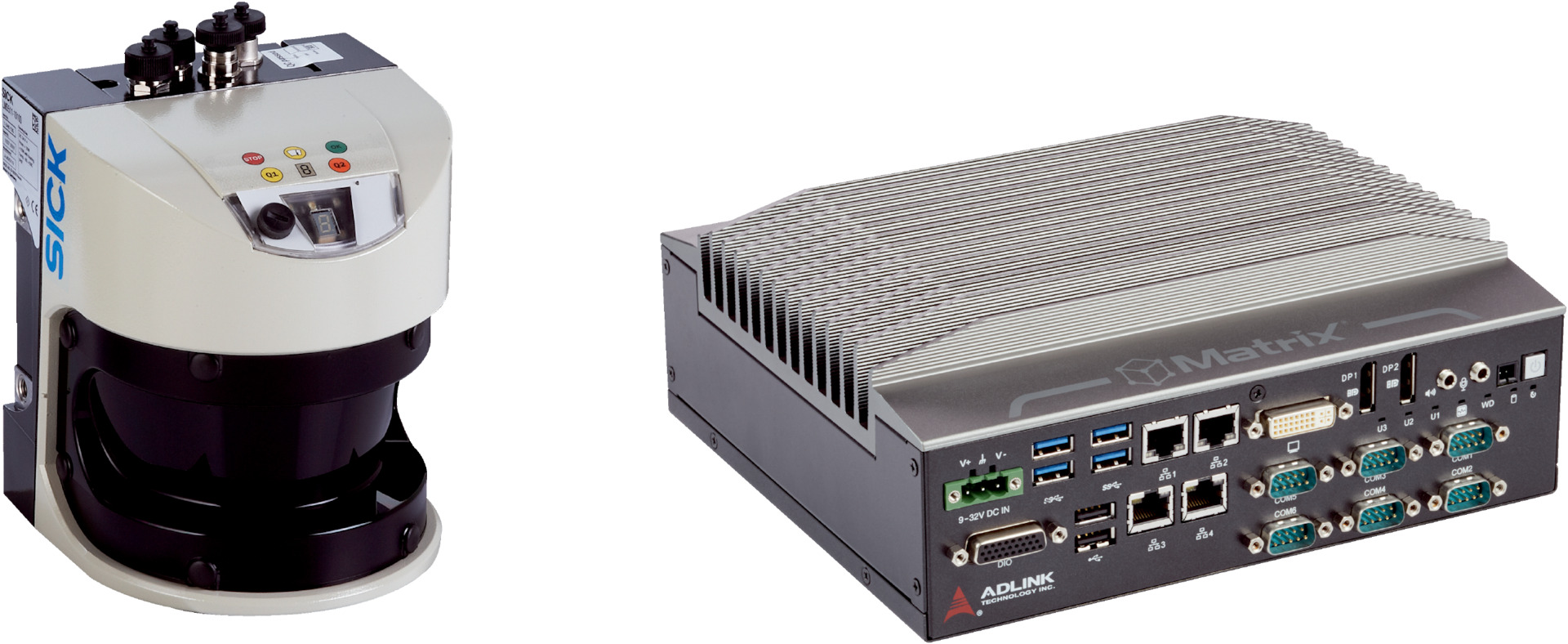

2D LiDAR Vehicle Measurement Sensor LVM5572 | 190° Aperture Angle | 40m Max Range | Stop-and-Go Functionality | by SICK
The 2D LiDAR Vehicle Measurement Sensor LVM5572 is designed for precise traffic monitoring and vehicle classification. With a 190° aperture angle and a maximum range of 40 meters, it captures detailed vehicle data including load volume and dimensions. Ideal for logistics and transport applications, this sensor features an internal Application Processing Unit (APU) with 256 GB SSD memory, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Number of covered lanes: 1
- Vehicle data: Load volume, vehicle classes, driving direction, lane assignment, confidence level, 3D point cloud, vehicle dimensions
- Sensor type: 2D LiDAR
- Recommended distance between max vehicle height and sensor: ≥ 1 m
- Stop-and-go functionality: Yes
- Max range with 10% reflectivity: 40 m
- Aperture angle: 190°
- Laser class: 1, eye-safe (IEC 60825-1:2014)
- Heating: Yes
- Internal computer: Application Processing Unit (APU)
- Internal memory: 256 GB SSD
- Installation position: Overhead or at the side
- Installation height: 5 m to 8 m, at least 1 m higher than max vehicle height
- Minimum object size: 1 m x 0.6 m x 0.6 m
- Maximum object size: 32 m x 3.5 m x 5 m
- Minimum detectable object: 190 mm x 130 mm x 130 mm
- Output data: Vehicle data including load volumes
- Dimensions (H x L x W): 200mm x 300mm x 400mm
- Weight: 15 kg
Key Features
- 2D LiDAR sensor with 190° aperture angle
- Max range of 40 m with 10% reflectivity
- Stop-and-go functionality
- Internal Application Processing Unit (APU) with 256 GB SSD memory
- Eye-safe laser class 1 (IEC 60825-1:2014)
- Heating for reliable operation in various environments
Professional Installation Requirements
- Installation should be performed by qualified professionals to ensure correct positioning and compliance with electrical safety standards.
Applications
- Traffic monitoring and vehicle classification
- Load volume measurement for logistics and transport
- Overhead or side installation for vehicle data collection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables efficient traffic and logistics management reducing fuel consumption and emissions
- Eye-safe laser technology minimizes environmental and human impact
Warranty Information
Standard manufacturer warranty applies, typically 12 months.
Available Now
The SICK LVM5572 2D LiDAR Vehicle Measurement Sensor is available for immediate purchase, ideal for traffic monitoring and logistics applications.
