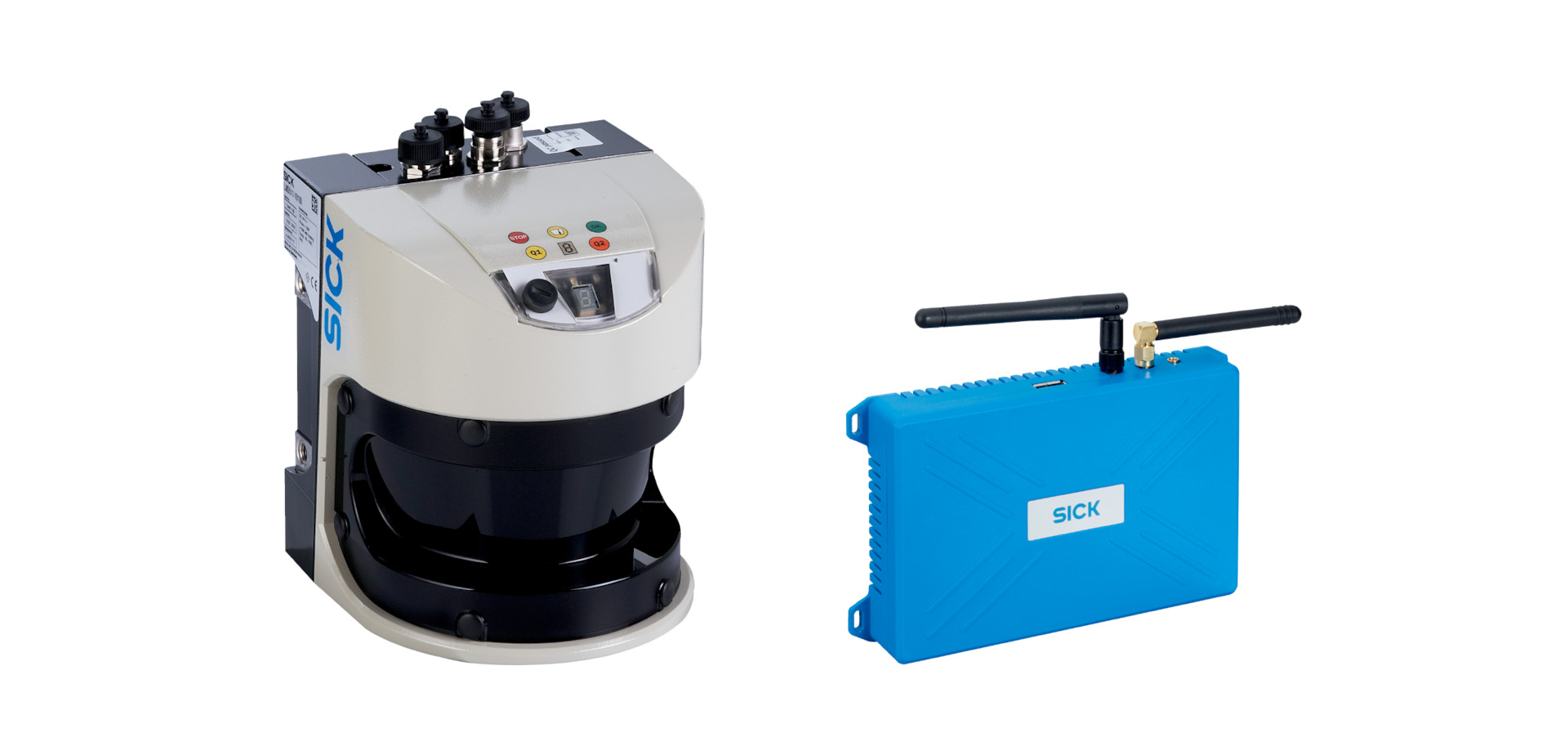

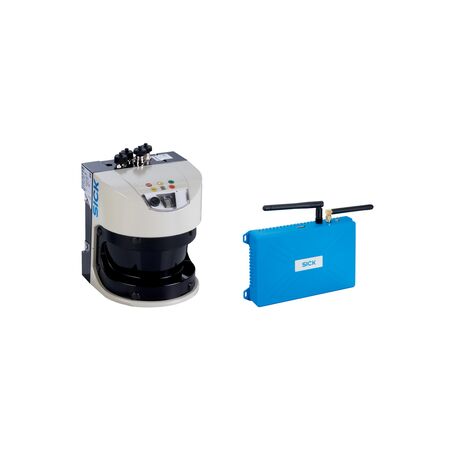

2D LiDAR Vehicle Sensor OHD5001-GC | 190° Aperture Angle | Covers Up to 3 Lanes | IP67 Rated | by SICK
The 2D LiDAR Vehicle Sensor OHD5001-GC is designed for precise traffic monitoring and vehicle detection, featuring a 190° aperture angle and the ability to cover up to 3 lanes simultaneously. With a scanning frequency of 25 Hz horizontal and 100 Hz vertical, this sensor is perfect for overheight vehicle detection in parking garages and tunnels, ensuring reliable operation even in harsh environments thanks to its IP67 rating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor Type: 2D LiDAR
- Number of Covered Lanes: Up to 3
- Scanning Frequency: 25 Hz (horizontal), 100 Hz (vertical)
- Aperture Angle: 190°
- Installation Height: 5 m to 8 m (vertical), at height limit (horizontal)
- Enclosure Rating: IP67 (outdoor), IP20 (indoor)
- Laser Class: 1 (eye-safe)
- Measurement Accuracy: ±30 mm at speeds under 120 km/h
- Minimum Detectable Object Size: 250 mm diameter at 30 km/h (vertical)
- Interfaces: 6 analog inputs, 6 digital I/O, Ethernet RJ45, Wireless LAN IEEE 802.11 b/g/n
- Data Transmission Rate: Up to 1,000 Mbit/s Ethernet, 65 Mbit/s WLAN
- Dimensions (H x L x W): 150mm x 300mm x 200mm
- Weight: 5 kg
Key Features
- 2D LiDAR sensor with 190° aperture angle
- Covers up to 3 tracks simultaneously
- Scanning frequency: 25 Hz horizontal, 100 Hz vertical
- Stop-and-go functionality for dynamic traffic conditions
- Eye-safe laser class 1 compliant with IEC 60825-1:2014
- IP67 rated enclosure for harsh environments
- Heating for reliable operation in cold conditions
Professional Installation Requirements
- Installation should be performed by qualified professionals to ensure correct mounting height, orientation, and secure electrical connections according to AS/NZS standards.
Applications
- Traffic monitoring and vehicle detection on up to 3 lanes
- Overheight vehicle detection in parking garages and tunnels
- Industrial vehicle monitoring and safety systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient traffic management reducing congestion and emissions
- Durable IP67 housing reduces need for frequent replacements
- Energy-efficient sensor operation minimizes power consumption
Warranty Information
Standard manufacturer warranty of 2 years covering defects in materials and workmanship.
Available Now
The SICK OHD5001-GC 2D LiDAR Sensor is available for immediate purchase, ideal for traffic monitoring, vehicle detection, and safety applications in industrial and municipal environments.
