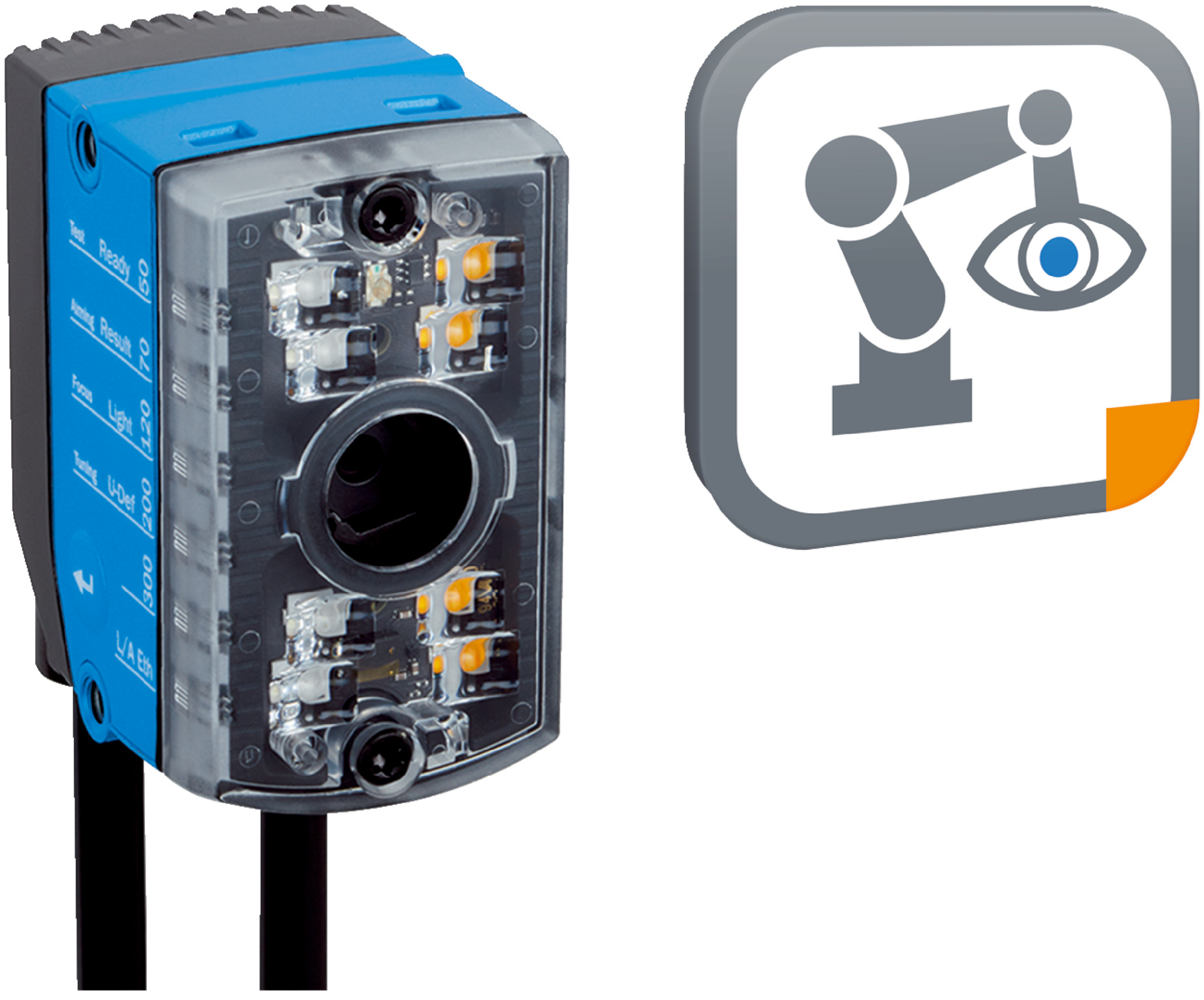

2D Localization Sensor | 1.2 Megapixel Resolution | Integrated Optics | IP54 Rated | by SICK
The 2D Localization Sensor is designed for precise part localization in industrial automation and robotics. Featuring a 1.2 Megapixel resolution and integrated optics with a 6 mm focal length, it ensures fast localization times of under 0.5 seconds. With robust IP54-rated housing and multiple internal LED light sources, this sensor is perfect for quality control and inspection systems, providing reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1280 px x 960 px (1.2 Mpixel)
- Working distance: 50 mm to 300 mm
- Light sources: Internal LEDs - red (617 nm), green (525 nm), blue (470 nm); Laser adjustment aid (630 nm)
- Laser class: Class 1, IEC 60825-1:2014 compliant
- Optical focus: Teach auto focus (liquid lens)
- Mounting method: Integrated
- Focal length: 6 mm
- Connection type: 1 x M12 17-pin male connector, 1 x M12 4-pin female connector (Ethernet)
- Supply voltage: 12 V to 24 V ± 15%
- Power consumption: 3.5 W
- Housing material: Die-cast zinc
- Window material: PMMA
- Enclosure rating: IP54
- Data transmission rate: 100 Mbit/s
- Protocols supported: TCP/IP XML and CSV, PROFINET, EtherNet/IP, FTP
- User interface: Web server
- Data storage: microSD memory card and external FTP
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Shock and vibration: EN 60068-2-27 and EN 60068-2-6 compliant
- Dimensions (H x L x W): 30mm x 50mm x 40mm
- Weight: 0.165 kg
Key Features
- Stand-alone sensor with easy teach for 2D part localization
- Medium resolution 1.2 Megapixel sensor (1280 px x 960 px)
- Integrated optics with 6 mm focal length lens
- Multiple internal LED light sources: red, green, and blue
- Laser class 1 compliant with IEC 60825-1:2014
- Fast localization time: <0.5 seconds for first part, <100 ms for additional parts
- Robust die-cast zinc housing with IP54 rating
- Ethernet connectivity with multiple protocols including TCP/IP, PROFINET, EtherNet/IP
- Web server user interface and microSD data logging
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper integration and compliance with safety standards.
Applications
- Industrial automation for part localization
- Robotics and manufacturing process control
- Quality control and inspection systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Low power consumption at 3.5 W reduces energy usage
- Durable housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now

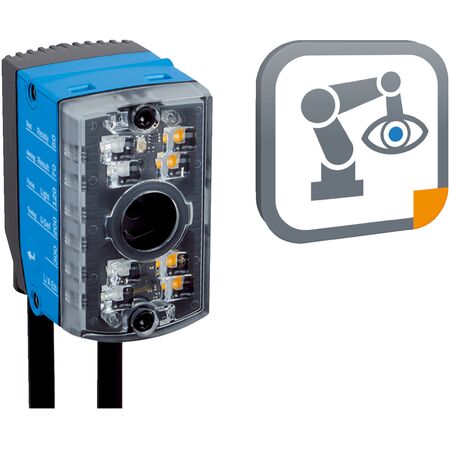

The SICK PLOC2D-611-6RB-LL sensor is available for immediate purchase, ideal for industrial automation and robotics applications requiring precise part localization.
