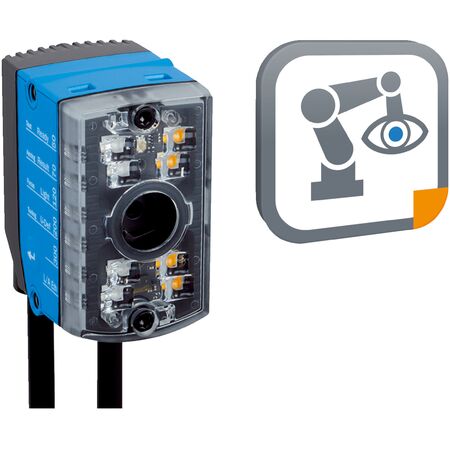

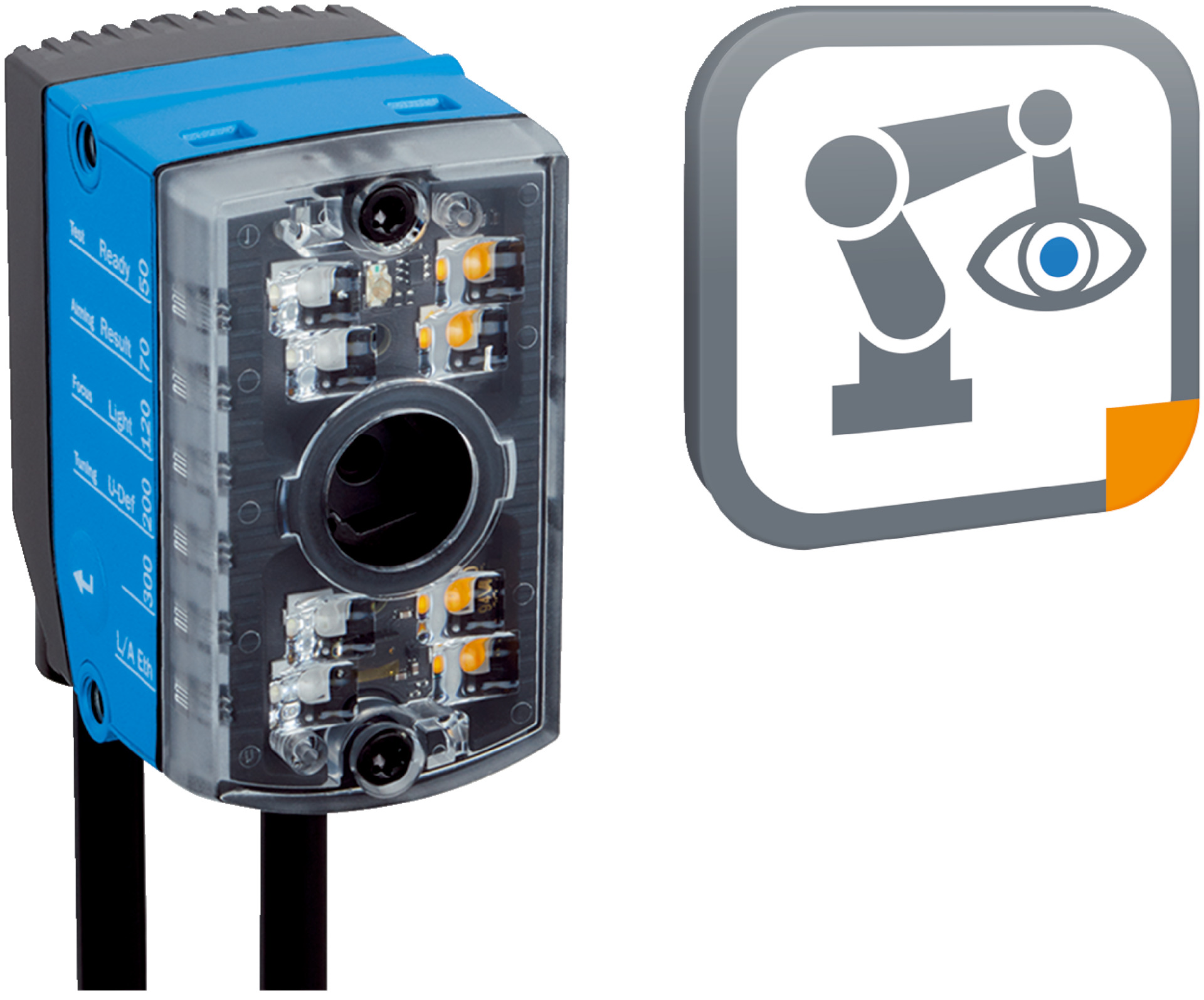

2D Localization Sensor PLOC2D-611-12RB-LL | 1.2 Megapixel | IP54 Rated | Fast Localization Time | by SICK
The 2D Localization Sensor PLOC2D-611-12RB-LL features a 1.2 Megapixel resolution and a working distance of 50 mm to 300 mm, making it ideal for industrial automation and robotics applications. With its IP54 rated housing and integrated optics, this sensor ensures durability and precision in part localization, while the fast localization time of under 0.5 seconds enhances efficiency in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1280 px x 960 px (1.2 Megapixel)
- Working distance: 50 mm to 300 mm
- Light sources: Internal LED blue (470 nm), feedback LED green (525 nm), adjustment laser red (630 nm)
- Laser class: Class 1, IEC 60825-1:2014 compliant
- Lens focal length: 12 mm integrated
- Connection: 1 x M12 17-pin male (serial, I/Os, power), 1 x M12 4-pin female (Ethernet)
- Supply voltage: 12 V to 24 V ±15%
- Power consumption: 3.5 W
- Housing: Die-cast zinc, light blue (RAL 5012), PMMA window
- Enclosure rating: IP54
- Data transmission: 100 Mbit/s Ethernet supporting TCP/IP, PROFINET, EtherNet/IP, FTP
- User interface: Web server
- Data storage: microSD card and external FTP
- Operating temperature: 0°C to +40°C
- Storage temperature: -20°C to +70°C
- Shock and vibration: EN 60068-2-27 and EN 60068-2-6 compliant
- Dimensions (H x L x W): 30mm x 50mm x 40mm
- Weight: 0.165 kg
Key Features
- Stand-alone sensor with easy teach for 2D part localization
- Medium resolution 1.2 Megapixel sensor (1280 x 960 px)
- Working distance from 50 mm to 300 mm
- Integrated optics with 12 mm focal length lens
- Multiple visible LED light sources for internal lighting, feedback, and adjustment
- Laser class 1 compliant with IEC 60825-1:2014
- IP54 rated die-cast zinc housing with PMMA window
- Fast localization time: <0.5 seconds for first part, <100 ms for additional parts
- Ethernet interface with 100 Mbit/s data rate supporting TCP/IP, PROFINET, EtherNet/IP protocols
- Web server user interface and microSD data logging
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper electrical connections and system integration.
Applications
- Industrial automation for part localization
- Robotics and manufacturing process control
- Quality control and inspection systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption at 3.5 W reduces energy usage
- Durable IP54 rated housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK PLOC2D-611-12RB-LL sensor is available for immediate purchase, ideal for industrial automation and robotics applications requiring precise 2D part localization.
