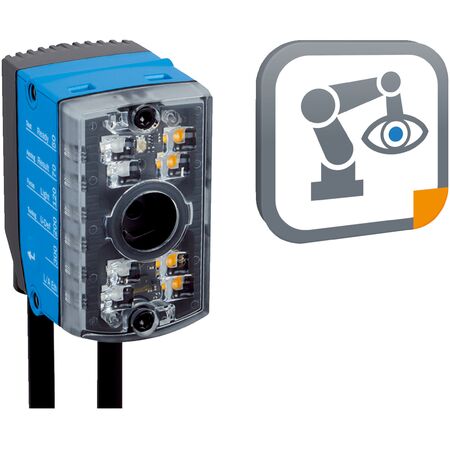

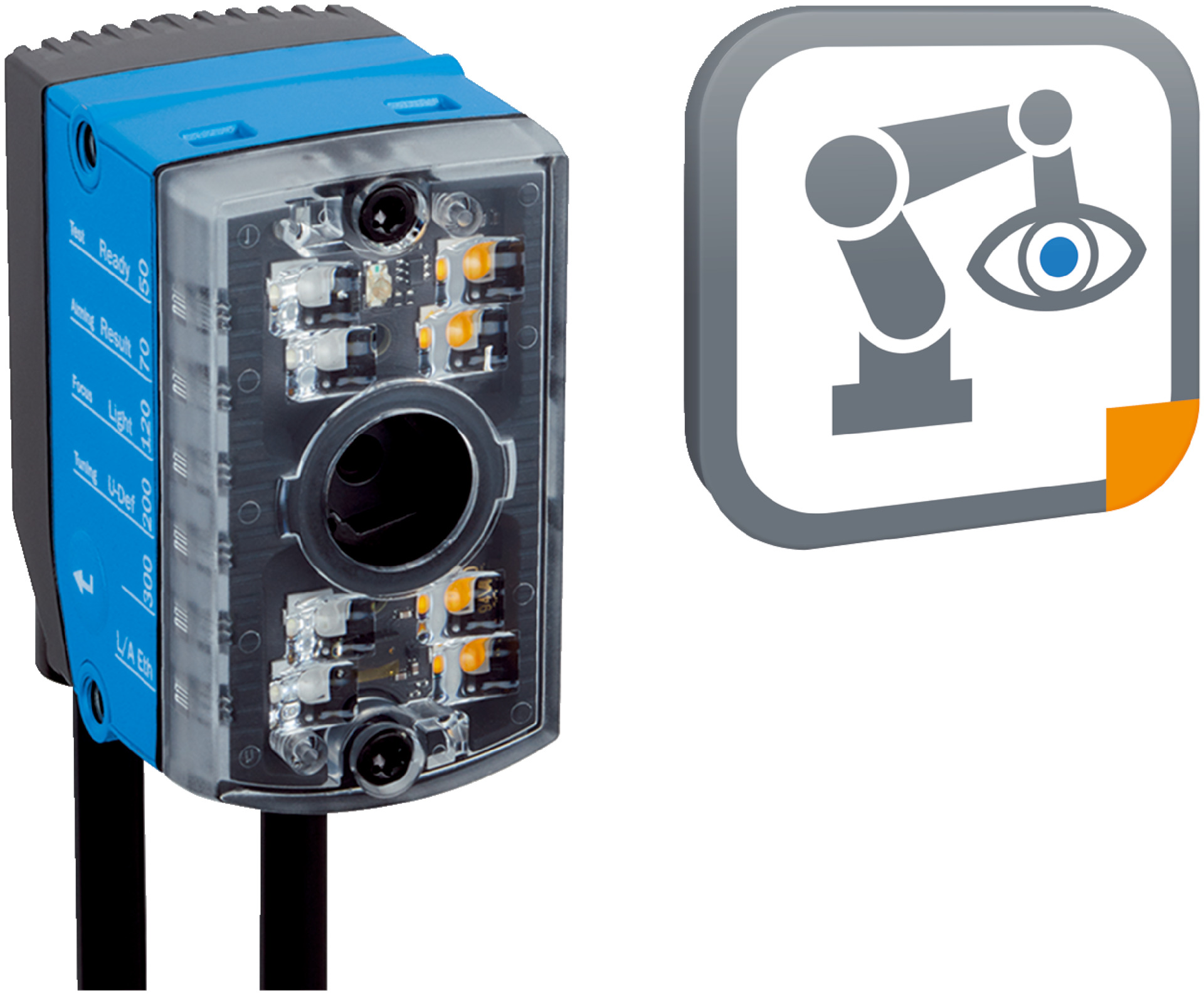

2D Localization Sensor PLOC2D-611-6RB | 1.2 Megapixel Resolution | IP54 Rated | by SICK
The 2D Localization Sensor PLOC2D-611-6RB features a 1.2 Megapixel resolution and an IP54 rating, making it perfect for industrial automation and robotics applications. With fast localization times and integrated LED lighting, this sensor is designed for precise part localization and quality control in manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1280 px x 960 px (1.2 Megapixel)
- Working distance: 50 mm to 300 mm
- Light sources: LED visible red (617 nm), green (525 nm), blue (470 nm), and laser red (630 nm)
- Laser class: 1 (IEC 60825-1:2014 compliant)
- Housing material: Die-cast zinc
- Enclosure rating: IP54
- Connection: 1 x M12 17-pin male connector, 1 x M12 4-pin female Ethernet connector
- Supply voltage: 12 V to 24 V ±15%
- Power consumption: 3.5 W
- Data transmission rate: 100 Mbit/s
- Protocols supported: TCP/IP XML and CSV, PROFINET, EtherNet/IP, FTP
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Dimensions (H x L x W): 30mm x 50mm x 40mm
- Weight: 0.165 kg
Key Features
- Stand-alone sensor with easy teach for 2D part localization
- Adjustable optical focus (manual)
- Medium resolution 1.2 Megapixel sensor (1280 px x 960 px)
- Integrated optics with 6 mm focal length lens
- Internal LED lighting with visible red, green, and blue light sources
- Laser class 1 compliant with IEC 60825-1:2014
- Fast localization time: <0.5 seconds for first part, <100 ms for additional parts
- Output data includes X, Y coordinates and rotation around Z axis
- Robust die-cast zinc housing with IP54 rating
- Ethernet interface with 100 Mbit/s data transmission and multiple protocols (TCP/IP, PROFINET, EtherNet/IP)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper electrical connection and sensor integration.
Applications
- Industrial automation for part localization
- Robotics for precise positioning
- Quality control in manufacturing
- Medium to large field of view 2D measurements
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of 3.5 W reduces energy usage
- Durable housing extends product lifespan, reducing waste
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK PLOC2D-611-6RB sensor is available for immediate purchase, ideal for industrial automation and robotics applications.
