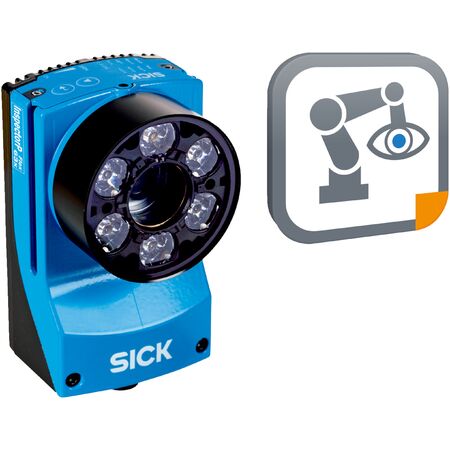

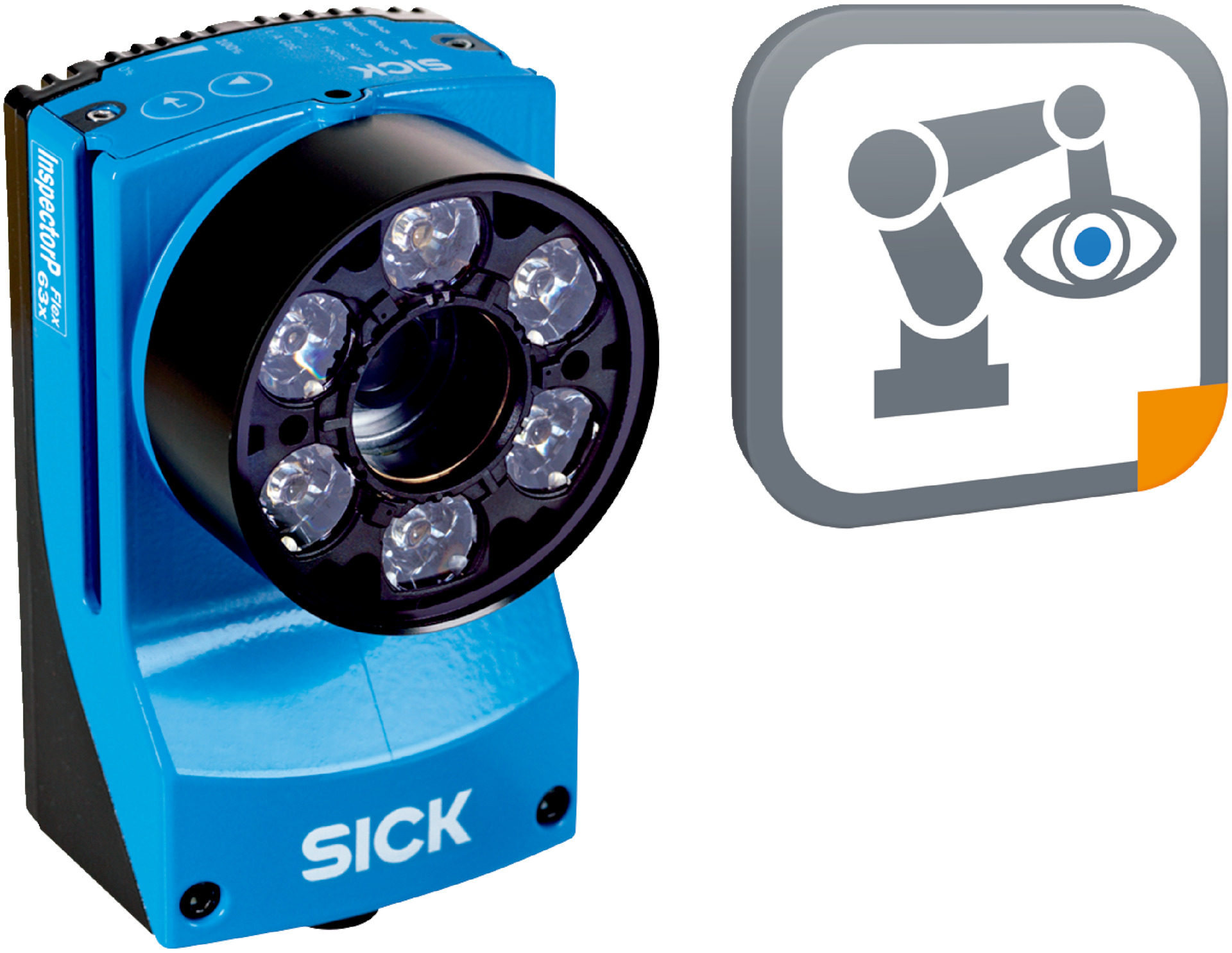

2D Localization Sensor PLOC2D-631S | 1280 x 1024 Resolution | Adjustable Optical Focus | IP65 Rated | by SICK
The 2D Localization Sensor PLOC2D-631S offers high precision with a 1280 x 1024 resolution and adjustable optical focus, making it ideal for industrial automation and robotics applications. With a robust aluminum housing and IP65 rating, this sensor ensures durability and reliability in demanding environments, supporting multiple communication protocols for seamless integration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1280 px x 1024 px (1.3 Mpixel)
- Optical focus: Adjustable manually
- Lens: S-mount, changeable, optical format 1/1.8"
- Connection types: 1x M12 17-pin male, 1x M8 4-pin female USB (not used), 2x M12 8-pin socket Gigabit Ethernet (one used), 1x M12 4-pin male external illumination
- Supply voltage: 12 V to 24 V ± 20%
- Power consumption: 10 W ± 20%
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Localization accuracy: ± 0.5 px, ± 0.1°
- Output data: X, Y (mm), rotation around Z (degrees)
- Data transmission rate: 100 Mbit/s
- Protocols supported: TCP/IP XML and CSV (robot), TCP/IP (operator), PROFINET, EtherNet/IP, FTP
- User interface: Web server
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Shock and vibration tested to EN 60068-2-27 and EN 60068-2-6
- Dimensions (H x L x W): 46mm x 108mm x 63mm
- Weight: 0.43 kg
Key Features
- Stand-alone sensor with easy teach for 2D part localization
- Adjustable optical focus with S-mount lens
- High sensor resolution of 1280 px x 1024 px (1.3 Mpixel)
- Fast localization time: <0.5 seconds for first part, <100 ms for additional parts
- Robust aluminum die cast housing with IP65 rating
- Supports multiple communication protocols including TCP/IP, PROFINET, EtherNet/IP
- Image and data logging via microSD and external FTP
- Laser class 1 compliant with IEC 60825-1:2014 standards
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper connection and configuration of sensor and network interfaces.
Applications
- Industrial automation for part localization
- Robotics and manufacturing process control
- Quality inspection and image analysis
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient operation with low power consumption of 10 W
- Durable aluminum housing extends product life reducing waste
- Supports digital data logging reducing paper usage
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK PLOC2D-631S 2D Localization Sensor is available for immediate purchase. Ideal for industrial automation and robotics applications requiring precise part localization.
