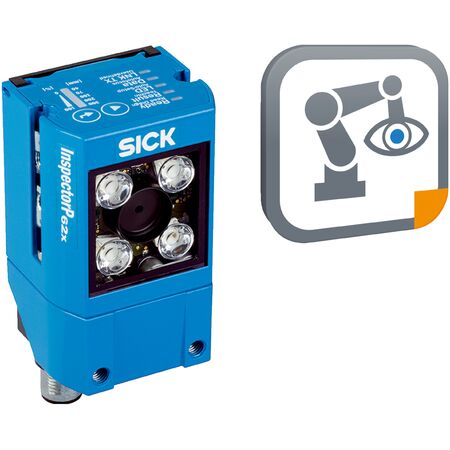

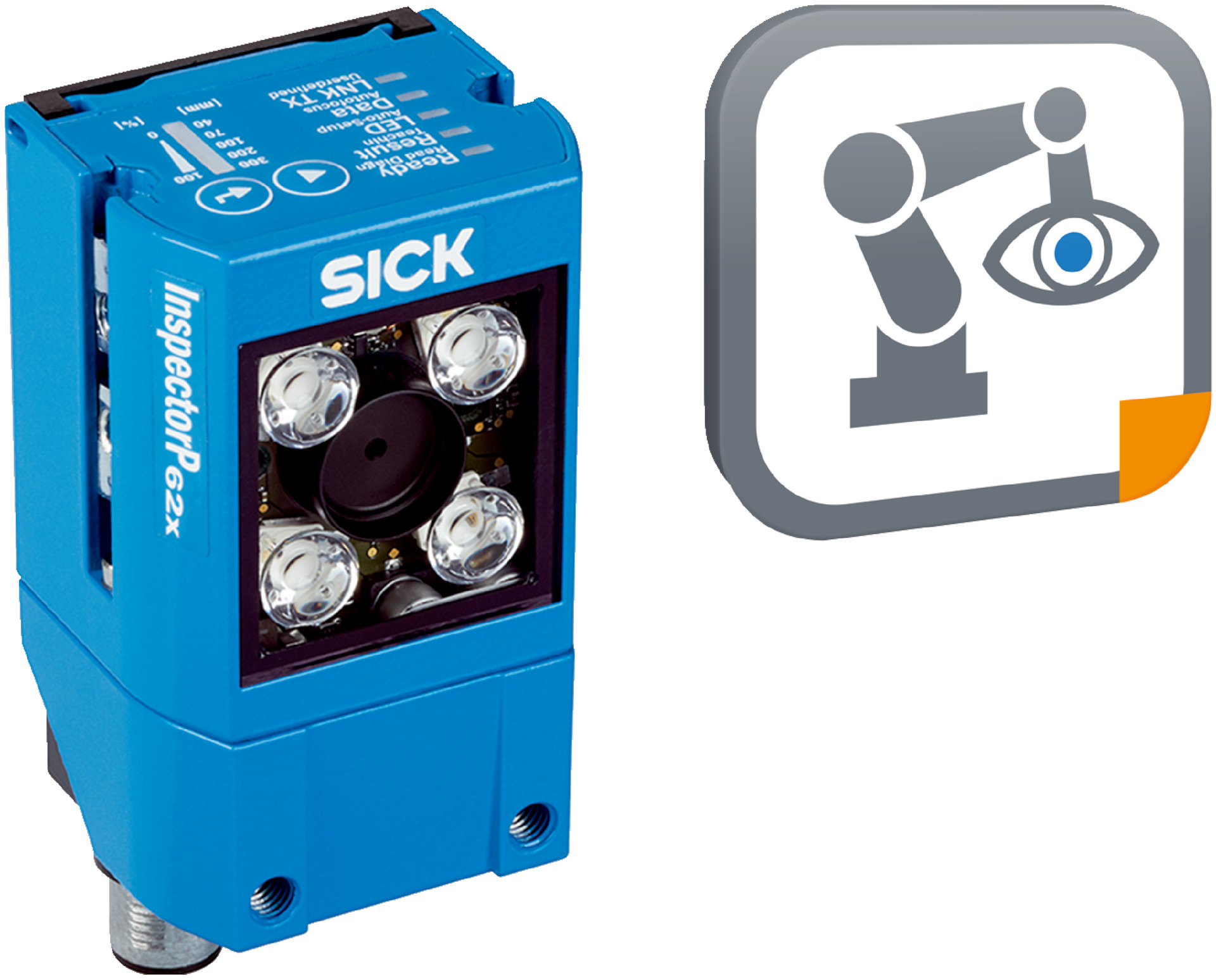

2D Localization Sensor PLOC2D-621-17NIR | 1280 x 1024 Resolution | IP65 Rated | by SICK
The 2D Localization Sensor PLOC2D-621-17NIR offers high precision with a resolution of 1280 x 1024 pixels, making it ideal for industrial automation and robotics applications. With an adjustable optical focus and fast localization time under 0.5 seconds, this sensor ensures accurate part positioning. Its robust aluminum housing and IP65 rating provide durability in demanding environments, while supporting multiple communication protocols for seamless integration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1280 px x 1024 px (1.3 Mpixel)
- Working distance: 300 mm to 1500 mm
- Light source: Internal LED infrared 850 nm ± 25 nm
- Adjustment aid: Laser visible red light 630 nm to 680 nm
- Feedback spot: LED visible green light 525 nm ± 15 nm
- Laser class: Class 1 (IEC 60825-1:2014 compliant)
- LED class: Risk group 1 (IEC 62471)
- Mounting method: Integrated
- Focal length: 17.1 mm
- Connection type: 1 x M12 17-pin male connector, 1 x M12 4-pin female connector (Ethernet)
- Supply voltage: 24 V ± 20%
- Power consumption: 4 W ± 20%
- Housing material: Aluminum die cast
- Window material: PMMA
- Enclosure rating: IP65
- Data transmission rate: 100 Mbit/s
- Protocols supported: TCP/IP XML and CSV, PROFINET, EtherNet/IP, FTP
- User interface: Web server
- Data storage: microSD card and external FTP
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Shock and vibration tested to EN 60068 standards
- Dimensions (H x L x W): 35.6mm x 71mm x 43mm
- Weight: 0.17 kg
Key Features
- Stand-alone sensor with easy teach for localization of parts using 2D measurements
- Adjustable electric optical focus
- Infrared internal LED lighting at 850 nm
- Laser adjustment aid with visible red light
- Feedback spot with visible green LED
- High localization accuracy ± 0.5 px and ± 0.1° rotation
- Fast part localization time under 0.5 seconds for first part
- Integrated optics and illumination
- Robust aluminum die cast housing with IP65 rating
- Supports Ethernet communication with multiple protocols including PROFINET and EtherNet/IP
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor alignment for optimal performance.
Applications
- Industrial automation for part localization
- Robotics for precise 2D measurements
- Quality control and inspection systems
- Manufacturing processes requiring shape comparison and positioning
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption at 4 W reduces energy usage
- Durable aluminum housing extends product lifespan, reducing waste
- Complies with RoHS regulations limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK PLOC2D-621-17NIR sensor is available for immediate purchase, ideal for industrial automation and robotics applications requiring precise 2D part localization.
