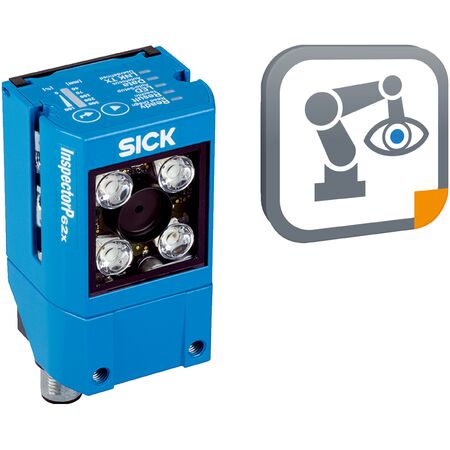

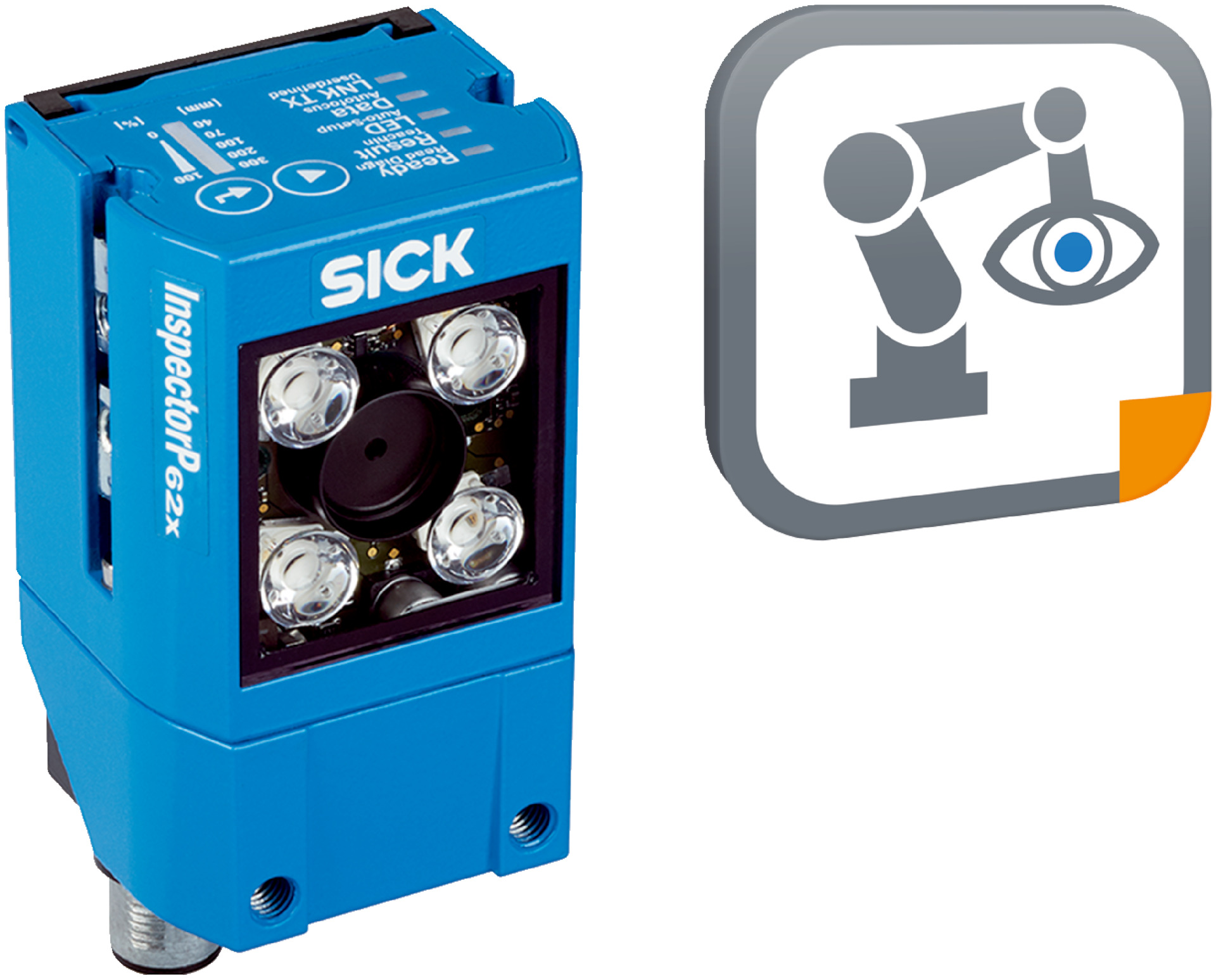

2D Localization Sensor PLOC2D-621-10NIR | 1280 x 1024 Resolution | IP65 Rated | by SICK
The 2D Localization Sensor PLOC2D-621-10NIR offers high precision with a resolution of 1280 x 1024 pixels, making it ideal for industrial automation and robotics applications. With an adjustable optical focus and fast localization time, this sensor ensures accurate part detection in various environments. Its robust IP65-rated aluminum housing guarantees durability, while the infrared LED lighting enhances visibility without contributing to light pollution.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1280 px x 1024 px (1.3 Mpixel)
- Working distance: 70 mm to 1500 mm
- Light source: Infrared LED 850 nm ± 25 nm
- Feedback spot: Visible green LED 525 nm ± 15 nm
- Adjustment aid: Visible red laser 630-680 nm
- Laser class: Class 1 (IEC 60825-1:2014 compliant)
- Localization principle: Shape comparison
- Focal length: 9.6 mm
- Connection: 1 x M12 17-pin male (serial, I/Os, power), 1 x M12 4-pin female (Ethernet)
- Supply voltage: ≤ 24 V ± 20%
- Power consumption: 4 W ± 20%
- Housing material: Aluminum die cast
- Enclosure rating: IP65 with optics cover and connector
- Data transmission rate: 100 Mbit/s
- Protocols supported: TCP/IP XML and CSV, PROFINET, EtherNet/IP, FTP
- User interface: Web server
- Data storage: microSD card and external FTP
- Operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- Shock and vibration: EN 60068-2-27 and EN 60068-2-6 compliant
- Dimensions (H x L x W): 35.6mm x 71mm x 43mm
- Weight: 0.17 kg
Key Features
- Stand-alone sensor with easy teach for 2D part localization
- Adjustable electric optical focus
- Infrared LED internal lighting (850 nm) with visible green feedback spot
- Laser adjustment aid with visible red light
- High localization accuracy ±0.5 px and ±0.1° rotation
- Fast localization time: <0.5 seconds for first part, <100 ms for additional parts
- Robust aluminum die cast housing with IP65 rating
- Integrated optics and illumination
- Supports multiple communication protocols including TCP/IP, PROFINET, EtherNet/IP
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for part localization
- Robotics for precise 2D positioning
- Quality control and inspection systems
- Manufacturing lines requiring medium to long distance part detection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption of 4 W reduces energy usage
- Durable IP65 rated housing extends product life and reduces waste
- Non-visible infrared LED reduces light pollution
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK PLOC2D-621-10NIR sensor is available for immediate purchase, ideal for industrial automation and robotics applications requiring precise 2D part localization.
