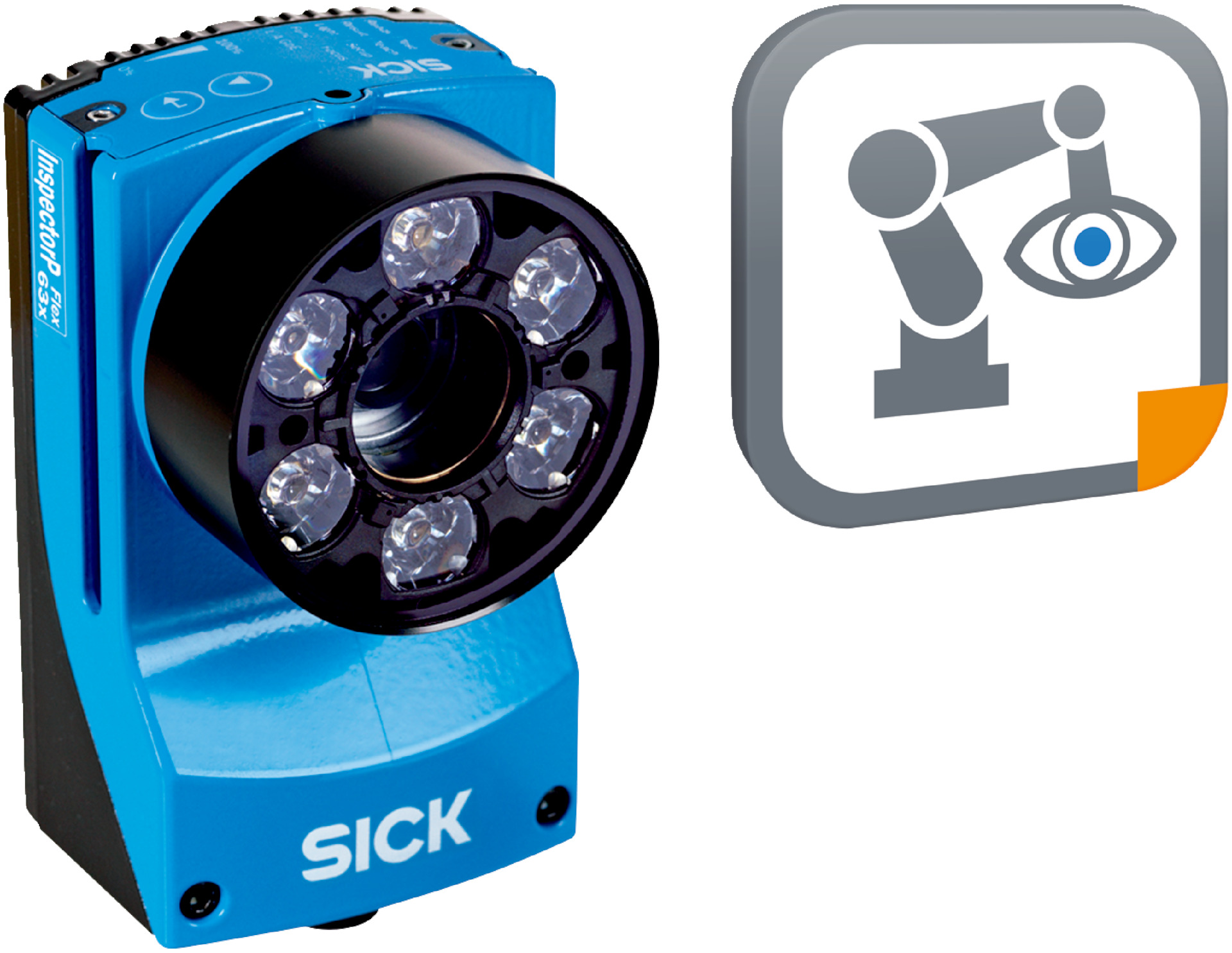

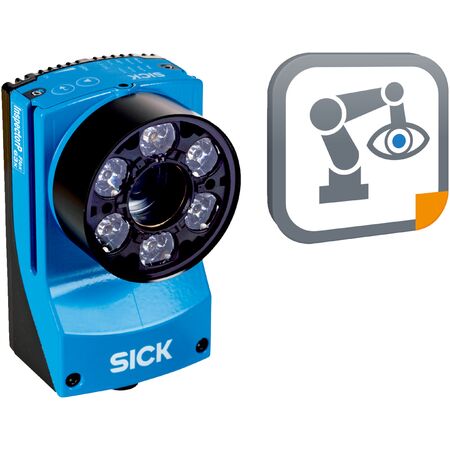

2D Localization Sensor PLOC2D-632S | 1600 x 1200 Resolution | IP65 Rated | by SICK
The 2D Localization Sensor PLOC2D-632S offers high precision with a resolution of 1600 px x 1200 px, making it ideal for industrial automation and robotics applications. With fast localization times and an adjustable optical focus, this sensor is built for efficiency and reliability. Its robust aluminum housing and IP65 rating ensure durability in demanding environments, while the web server interface allows for easy data logging and monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1600 px x 1200 px (1.9 Mpixel)
- Light source: Illumination LEDs (ordered separately)
- Laser class: 1, compliant with IEC 60825-1:2014
- Optical focus: Adjustable manually
- Localization principle: Shape comparison
- Technology: 2D snapshot and image analysis
- Connection types: M12 17-pin male, M8 4-pin female (USB not used), M12 8-pin socket (Gigabit Ethernet), M12 4-pin male (external illumination)
- Supply voltage: 12 V to 24 V ± 20%
- Power consumption: 10 W ± 20%
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Localization accuracy: ± 0.5 px, ± 0.1°
- Output data: X, Y (mm), rotation around Z (degrees)
- Data transmission rate: 100 Mbit/s
- Protocols supported: TCP/IP XML and CSV, PROFINET, EtherNet/IP, FTP
- User interface: Web server
- Data storage: microSD memory card and external FTP
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Shock and vibration tested to EN 60068 standards
- Dimensions (H x L x W): 46mm x 108mm x 63mm
- Weight: 0.43 kg
Key Features
- Stand-alone sensor with easy teach for 2D part localization
- Adjustable optical focus with S-mount lens
- High sensor resolution of 1600 px x 1200 px (1.9 Mpixel)
- Fast localization time: <0.5 seconds for first part, <100 ms for additional parts
- Robust aluminum die cast housing with IP65 rating
- Supports Ethernet communication with multiple protocols including PROFINET and EtherNet/IP
- Web server user interface and data logging via microSD and FTP
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for part localization
- Robotics and manufacturing process control
- Quality inspection and image analysis
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient operation with low power consumption of 10 W
- Durable aluminum housing extends product lifespan reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK PLOC2D-632S 2D Localization Sensor is available for immediate purchase, ideal for industrial automation and robotics applications.
