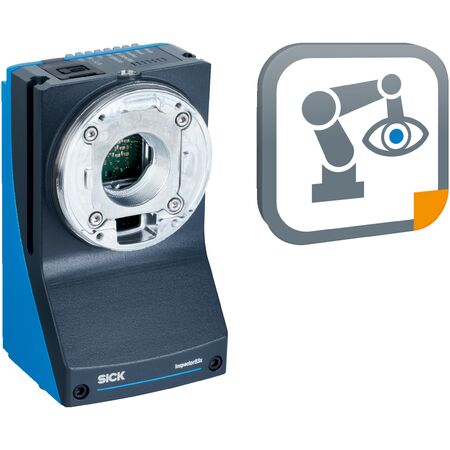

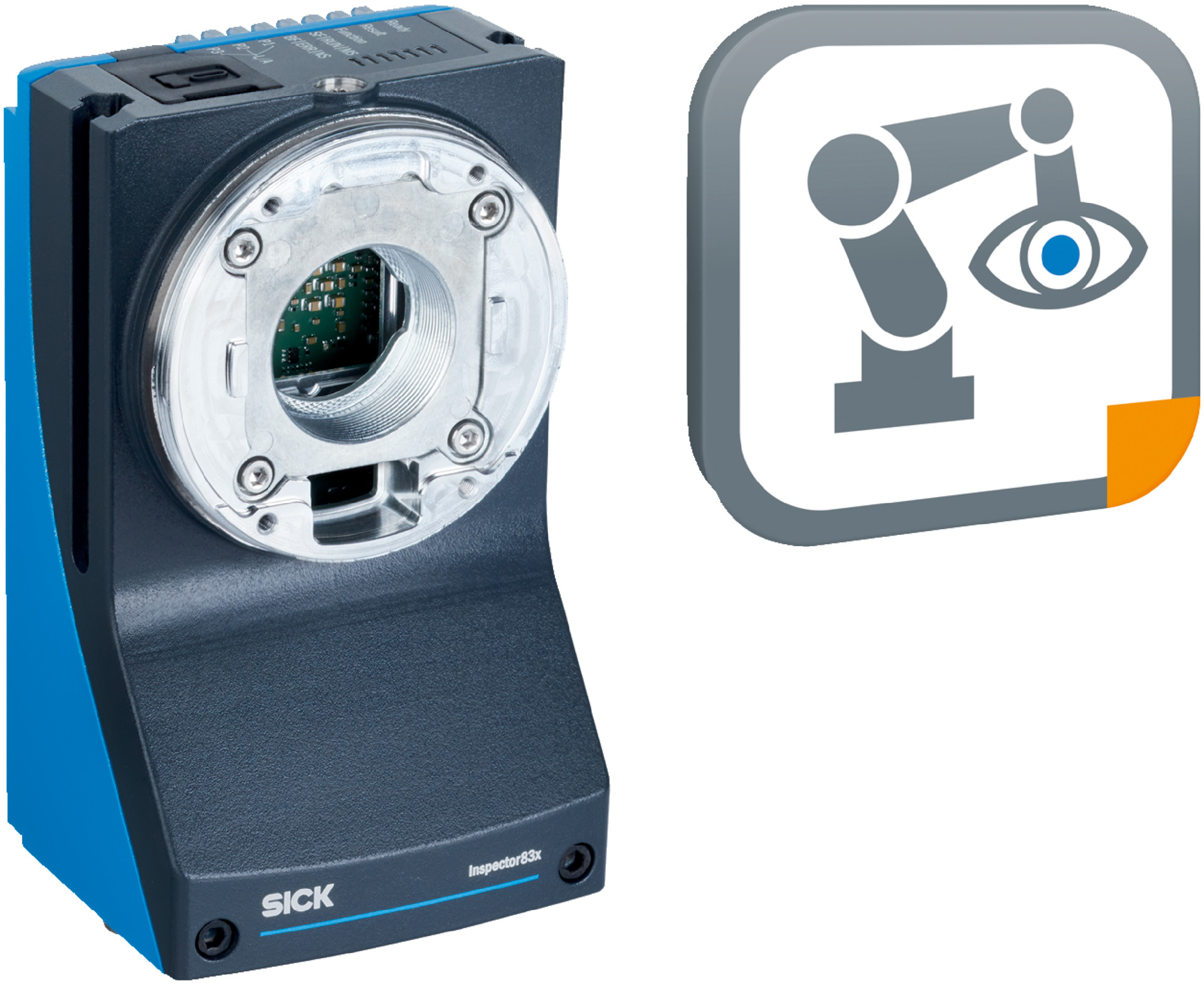

2D Localization Sensor PLOC2D-8305 | 2464 x 2048 Resolution | IP65 Rated | by SICK
The 2D Localization Sensor PLOC2D-8305 offers high-resolution 2464 x 2048 pixel imaging, perfect for precise part localization in industrial automation. With a fast localization time of 140 ms for the first part and an IP65 enclosure for durability, this sensor is designed for medium to large field applications, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 2464 px x 2048 px (5.1 Mpixel)
- Power consumption: 21 W
- Supply voltage: 24 V DC ± 20%
- Connection types: 1x M12 17-pin male (Power, I/O), 1x M8 4-pin female (external illumination), 1x M12 8-pin female (Gigabit Ethernet), 2x M12 4-pin female (fieldbus Ethernet)
- Localization accuracy: ± 0.5 px, ± 0.1°
- Part localization time: 140 ms first part, < 60 ms additional parts
- Enclosure rating: IP65 with optics protection hood
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Shock and vibration tested to EN 60068-2-6 and EN 60068-2-64 standards
- User interface: Web server
- Data storage: microSD memory card and external FTP
- Dimensions (H x L x W): 108mm x 63mm x 55mm
- Weight: 0.545 kg
Key Features
- Stand-alone sensor with easy teach functionality
- High resolution 2D snapshot image analysis technology
- Adjustable optical focus (manual)
- Shape comparison localization principle
- Fast part localization time: 140 ms for first part, < 60 ms for additional parts
- Multiple connection types including M12 and M8 connectors
- IP65 rated enclosure with optics protection hood
- Supports Ethernet data transmission at 100 Mbit/s with TCP/IP XML and CSV protocols
- Web server user interface and image/data logging via microSD and FTP
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and configuration of sensor and network interfaces.
Applications
- Localization of parts using 2D measurements in industrial automation
- Medium to large field of view part localization
- Medium to long reading distance applications
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy efficient 24 V DC operation reduces power consumption
- Durable aluminum die cast housing extends product lifespan
- IP65 rating protects against dust and water, reducing maintenance and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK PLOC2D-FLEX0024 sensor is available for immediate purchase, ideal for industrial automation and part localization applications.
