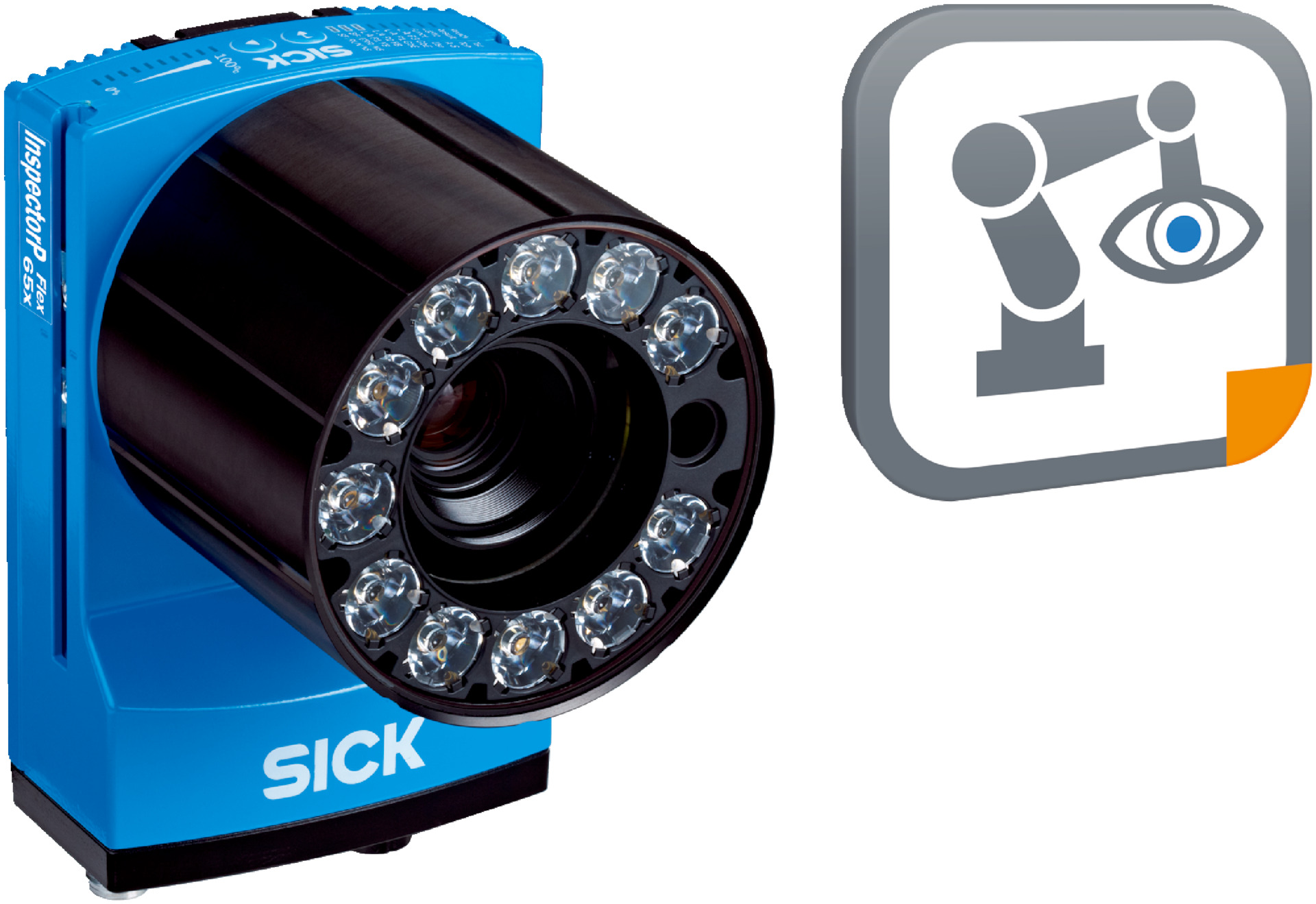

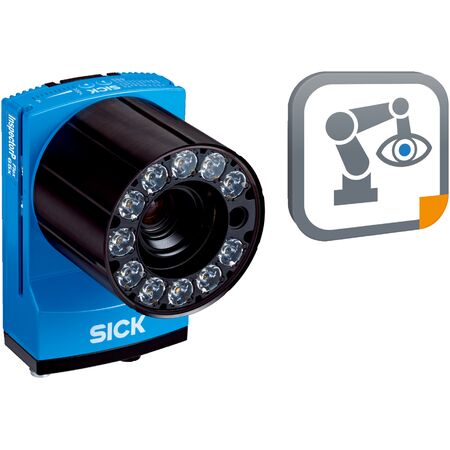

2D Localization Sensor PLOC2D-2000 | 4.2 Megapixel Resolution | IP65 Rated | by SICK
The 2D Localization Sensor PLOC2D-2000 offers high-resolution 4.2 Megapixel image analysis, making it ideal for industrial automation and robotics applications. With a robust IP65-rated aluminum housing and fast localization times, this sensor ensures precise part localization and quality control in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 2048 px x 2048 px (4.2 Megapixel)
- Field of view: 2000 mm x 2000 mm
- Working distance: up to 3000 mm
- Light source: Blue ring light with visible red laser alignment aid (630-680 nm)
- Laser class: Class 1, IEC 60825-1:2014 compliant
- Optical focus: Fixed
- Lens: C-mount, 1" optical format
- Power supply: 24 V ± 20%
- Power consumption: 10 W ± 20%
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Communication: Ethernet 100 Mbit/s, TCP/IP, PROFINET, EtherNet/IP, FTP
- User interface: Web server
- Data storage: microSD card and external FTP
- Operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- Shock and vibration: EN 60068-2-27 and EN 60068-2-6 compliant
- Dimensions (H x L x W): 106mm x 143mm x 90mm
- Weight: 0.635 kg
Key Features
- Stand-alone sensor with easy teach for 2D part localization
- High resolution 2D snapshot image analysis with 4.2 Megapixel sensor
- Factory calibrated for 2000 mm x 2000 mm field of view at approx. 3 m distance
- Fast localization time: < 0.5 seconds for first part, < 100 ms for additional parts
- Fixed optical focus with C-mount lens and 1" optical format
- Robust aluminum die cast housing with IP65 rating
- Multiple communication protocols including TCP/IP, PROFINET, EtherNet/IP
- Data logging via microSD and external FTP
- Laser class 1 safety compliant with IEC 60825-1:2014
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper electrical connections and network configuration.
Applications
- Industrial automation for part localization
- Robotics for precise positioning
- Quality control and inspection systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient operation with low power consumption (10 W)
- Durable aluminum housing reduces need for frequent replacements
- Supports digital data logging reducing paper usage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms and duration.
Available Now
The SICK PLOC2D-2000 is available for immediate purchase, ideal for industrial automation and robotics applications requiring precise 2D part localization.
