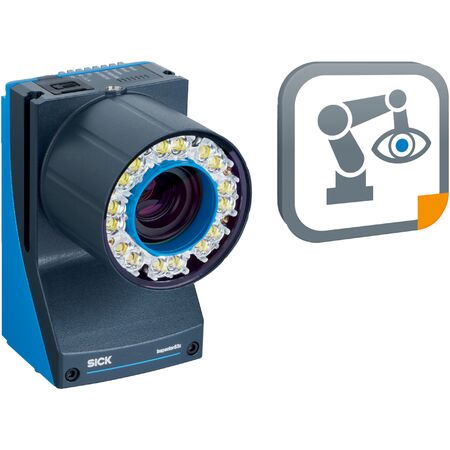

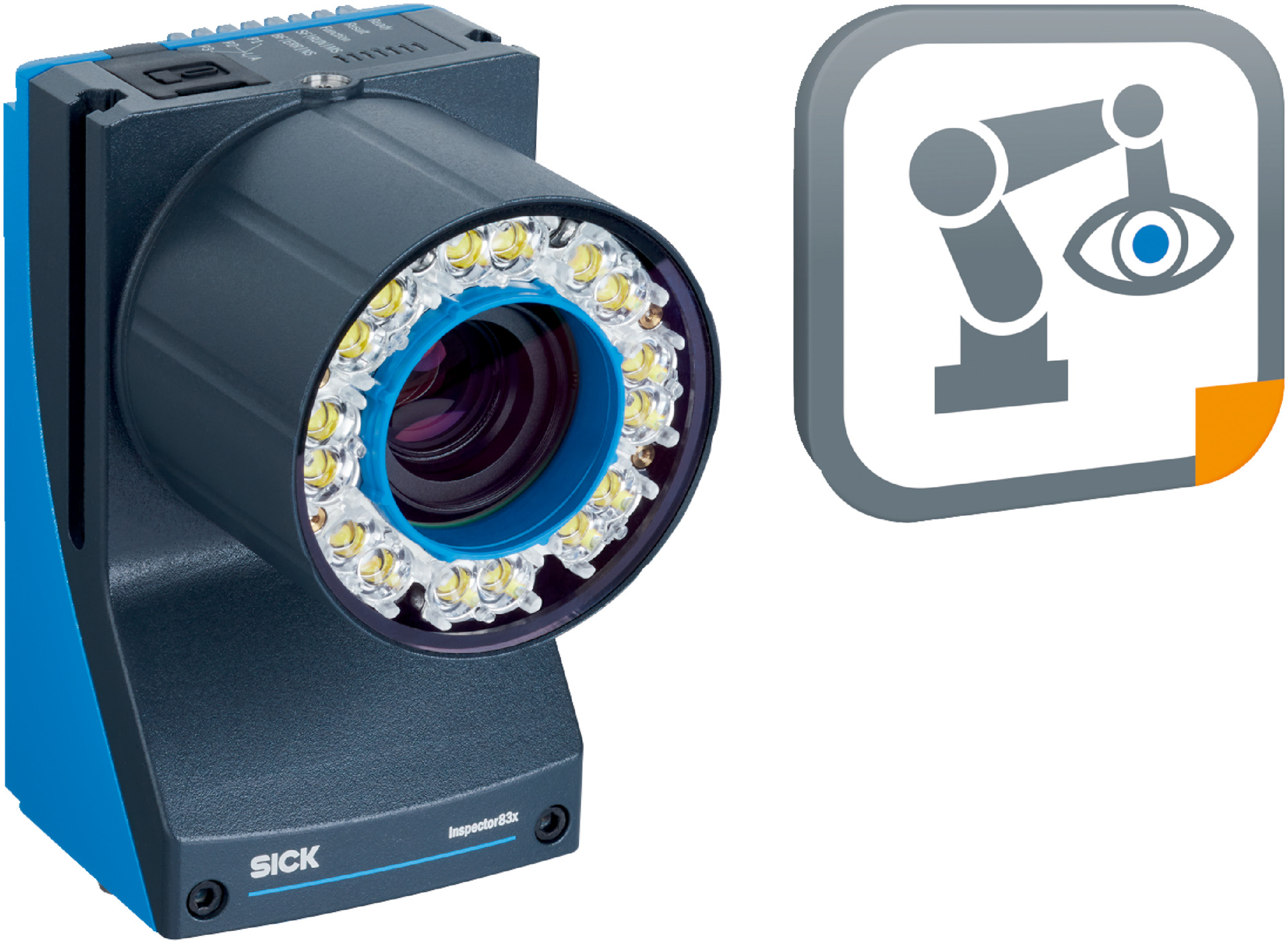

2D Localization Sensor | 5.1 Megapixel Resolution | Adjustable Focus | IP65 Rated | by SICK
The 2D Localization Sensor is designed for high-resolution part localization in industrial automation and robotics. With a 5.1 Megapixel sensor and adjustable optical focus, it ensures precise positioning and fast localization times. Ideal for quality control and medium to large field of view measurements, this sensor features robust IP65 rated housing for durability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 2464 px x 2048 px (5.1 Megapixel)
- Light source: Internal white LED, 6500 K ± 1000 K
- Optical focus: Adjustable manually
- Lens: C-mount, 12 mm focal length
- Power supply: 24 V DC ± 20%
- Power consumption: 21 W
- Enclosure rating: IP65
- Connection types: M12 17-pin male (Power, I/O), M8 4-pin female (external illumination), M12 8-pin female (Gigabit Ethernet), M12 4-pin female (fieldbus Ethernet)
- Data transmission: 100 Mbit/s Ethernet, TCP/IP XML and CSV protocols
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Shock and vibration tested to EN 60068 standards
- Dimensions (H x L x W): 108mm x 63mm x 85mm
- Weight: 0.545 kg
Key Features
- Stand-alone sensor with easy teach for localization of parts using 2D measurements
- High resolution 2D localization with 5.1 Megapixel sensor
- Adjustable optical focus (manually)
- Internal white LED lighting with 6500 K color temperature
- IP65 rated aluminum die cast housing for robust industrial use
- Fast localization time: 140 ms for first part, < 60 ms for additional parts
- Output data includes X, Y coordinates and rotation around Z axis
- Multiple Ethernet and fieldbus interfaces with 100 Mbit/s data rate
- Web server user interface and data logging via microSD and FTP
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper electrical and network connections and compliance with safety standards.
Applications
- Industrial automation for part localization
- Robotics for precise positioning
- Quality control in manufacturing
- Medium to large field of view 2D measurements
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED lighting reduces power consumption
- Durable IP65 housing extends product lifespan reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK PLOC2D-8305-12 sensor is available for immediate purchase, ideal for industrial automation and robotics applications requiring precise 2D part localization.
