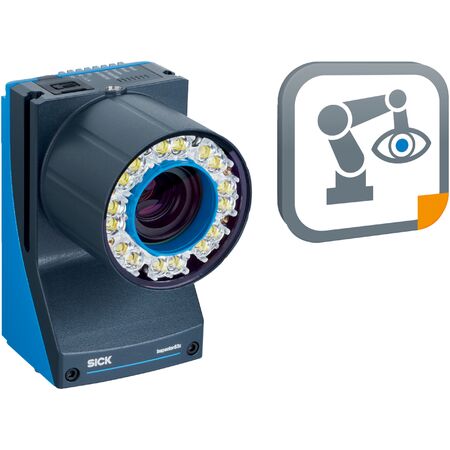

2D Localization Sensor PLOC2D-8305-16 | 5.1 Megapixel Resolution | Adjustable Optical Focus | IP65 Rated | by SICK
The 2D Localization Sensor PLOC2D-8305-16 offers high-resolution 5.1 Megapixel imaging and adjustable optical focus, making it ideal for industrial automation and robotics applications. With a robust IP65-rated aluminum housing and internal white LED lighting, this sensor ensures precise part localization and reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 2464 px x 2048 px (5.1 Megapixel)
- Light source: Internal white LED, 6,500 K ± 1,000 K
- Optical focus: Adjustable (manual)
- Lens: C-mount, 16 mm focal length
- Power consumption: 21 W
- Supply voltage: 24 V DC ± 20%
- Enclosure rating: IP65
- Connection types: M12 17-pin male (Power, I/O), M8 4-pin female (external illumination), M12 8-pin female (Gigabit Ethernet), 2x M12 4-pin female (fieldbus Ethernet)
- Data transmission rate: 100 Mbit/s
- Protocols: TCP/IP XML and CSV (robot), TCP/IP (operator)
- User interface: Web server
- Data storage: microSD memory card and external FTP
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Shock and vibration tested to EN 60068 standards
- Dimensions (H x L x W): 108mm x 63mm x 85mm
- Weight: 0.545 kg
Key Features
- Stand-alone sensor with easy teach for localization of parts using 2D measurements
- High resolution 2D localization with 5.1 Megapixel sensor
- Adjustable optical focus (manual)
- Internal white LED lighting (6,500 K ± 1,000 K)
- Shape comparison localization principle
- Fast part localization time: 140 ms for first part, < 60 ms for additional parts
- Output data includes X, Y (mm) and rotation around Z (degrees)
- Robust aluminum die cast housing with IP65 rating
- Multiple connection types including Gigabit Ethernet and fieldbus Ethernet
- Data logging via microSD and external FTP
- Web server user interface
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and configuration, especially for Ethernet and fieldbus interfaces.
Applications
- Industrial automation for part localization
- Robotics for precise positioning
- Quality control in manufacturing
- Medium to large field of view 2D measurements
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED lighting reduces power consumption
- Durable aluminum housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK PLOC2D-8305-16 sensor is available for immediate purchase, ideal for industrial automation and robotics applications requiring precise 2D part localization.
