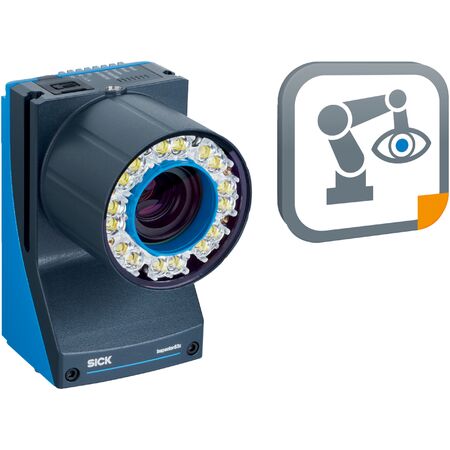

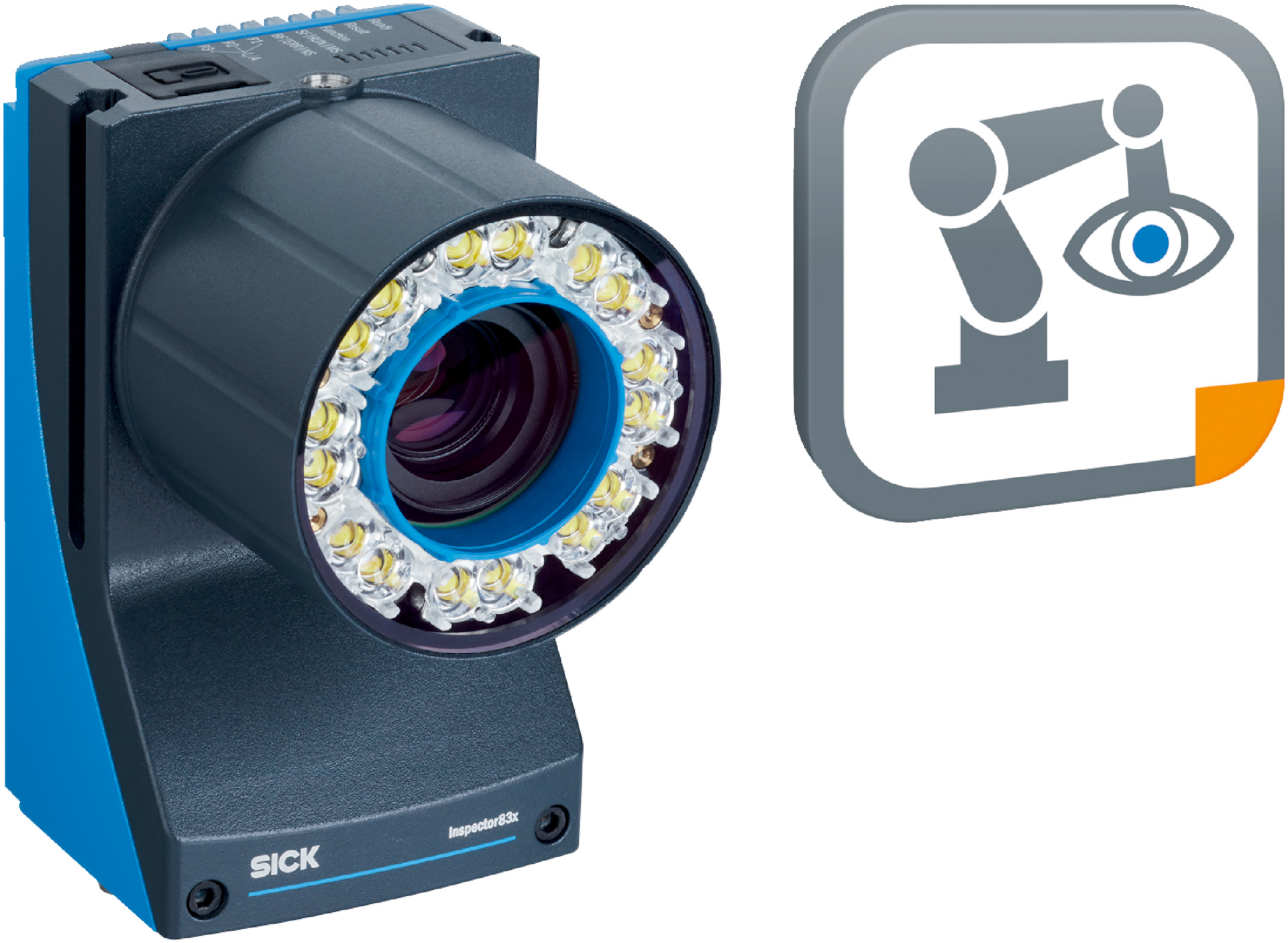

2D Localization Sensor PLOC2D-8305-25 | 5.1 Megapixel Resolution | Adjustable Optical Focus | IP65 Rated | by SICK
The 2D Localization Sensor PLOC2D-8305-25 is designed for precise part localization in industrial automation and robotics. Featuring a high-resolution 5.1 Megapixel sensor and adjustable optical focus, it ensures accurate measurements with a fast localization time of 140 ms for the first part. With robust IP65-rated housing and multiple connection types, this sensor is perfect for quality control and medium to large field of view applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 2464 px x 2048 px (5.1 Megapixel)
- Light source: Internal white LED, 6500 K ± 1000 K
- Optical focus: Adjustable (manual)
- Lens: C-mount, 25 mm focal length
- Power consumption: 21 W
- Supply voltage: 24 V DC ± 20%
- Enclosure rating: IP65
- Connection types: M12 17-pin male (Power, I/O), M8 4-pin female (external illumination), M12 8-pin female (Gigabit Ethernet), 2x M12 4-pin female (fieldbus Ethernet)
- Data transmission rate: 100 Mbit/s
- Protocols: TCP/IP XML and CSV (robot), TCP/IP (operator)
- User interface: Web server
- Data storage: microSD memory card and external FTP
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Shock and vibration tested to EN 60068 standards
- Dimensions (H x L x W): 108mm x 63mm x 85mm
- Weight: 0.545 kg
Key Features
- Stand-alone sensor with easy teach for localization of parts using 2D measurements
- High resolution 2D localization with 5.1 Megapixel sensor
- Adjustable optical focus (manual)
- Internal white LED lighting with 6500 K color temperature
- Risk group 1 LED class (low risk)
- Fast part localization time: 140 ms for first part, < 60 ms for additional parts
- Output data includes X, Y coordinates and rotation around Z axis
- Robust aluminum die cast housing with IP65 rating
- Multiple connection types including Gigabit Ethernet and fieldbus Ethernet
- Web server user interface and data logging via microSD and FTP
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical connections to ensure proper setup and safety.
Applications
- Industrial automation for part localization
- Robotics for precise positioning
- Quality control in manufacturing
- Medium to large field of view 2D measurements
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED lighting reduces power consumption
- Durable aluminum housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK PLOC2D-8305-25 sensor is available for immediate purchase, ideal for industrial automation and robotics applications requiring precise 2D part localization.
