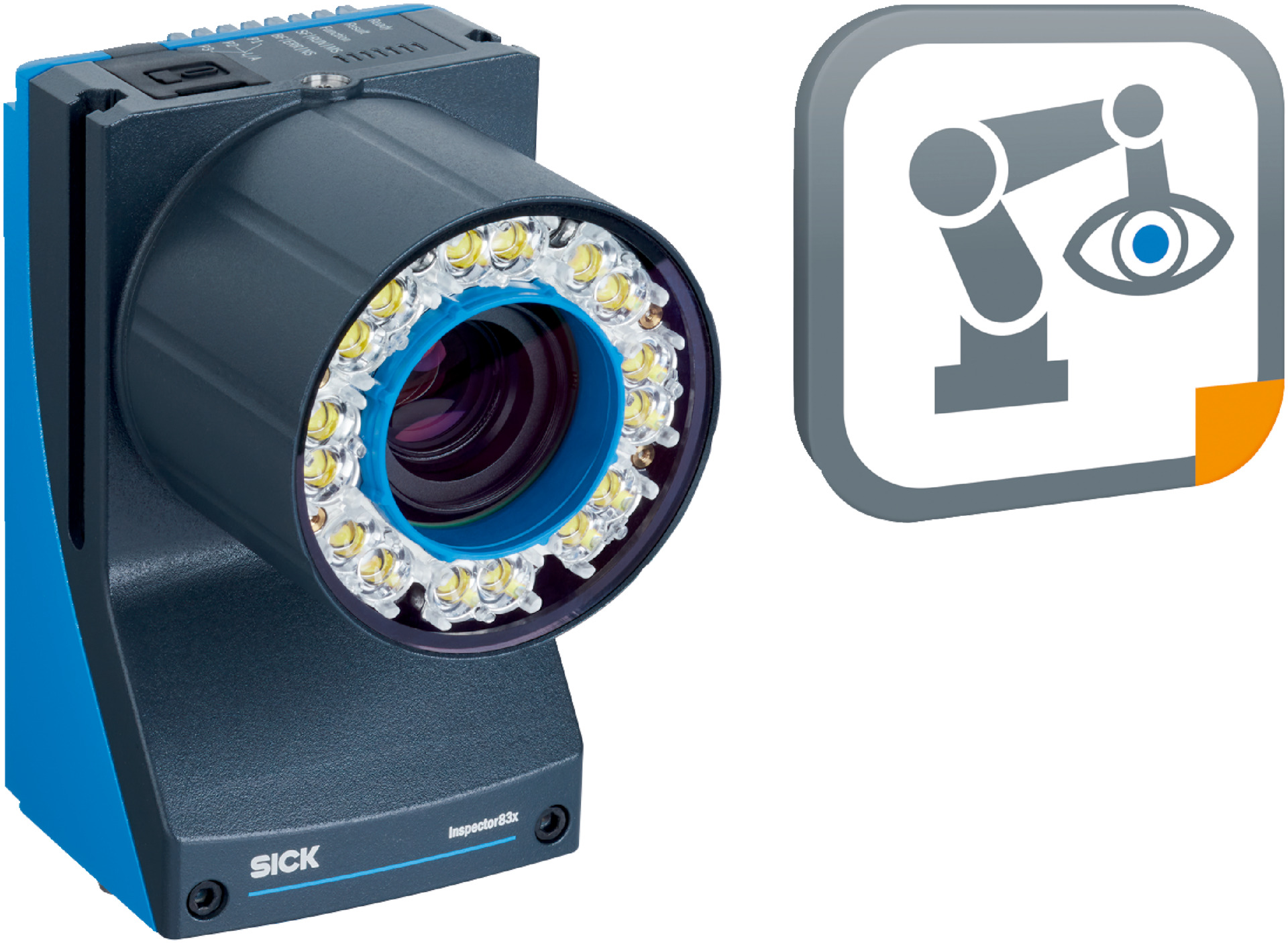

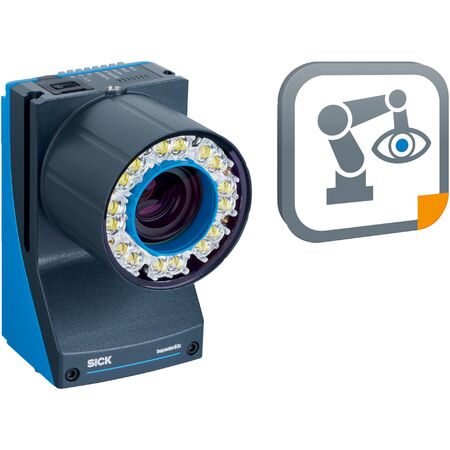

2D Localization Sensor PLOC2D-8305-8 | 5.1 Megapixel | IP65 Rated | Adjustable Focus | by SICK
The 2D Localization Sensor PLOC2D-8305-8 offers high-resolution 5.1 Megapixel imaging and fast localization times, making it ideal for industrial automation and robotics applications. With an adjustable optical focus and robust IP65-rated aluminum housing, this sensor ensures precise part localization in various environments, enhancing efficiency and accuracy in manufacturing and quality control processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 2464 px x 2048 px (5.1 Megapixel)
- Working distance: 200 mm to 2500 mm
- Light source: Internal white LED, 6500 K ± 1000 K
- Optical focus: Adjustable manually
- Localization principle: Shape comparison
- Localization accuracy: ± 0.5 px, ± 0.1°
- Part localization time: 140 ms for first part, < 60 ms for additional parts
- Output data: X, Y (mm), rotation around Z (degrees)
- Connection types: M12 17-pin male (Power, I/O), M8 4-pin female (external illumination), M12 8-pin female (Gigabit Ethernet), M12 4-pin female (fieldbus Ethernet)
- Supply voltage: 24 V DC ± 20%
- Power consumption: 21 W
- Housing material: Aluminum die cast
- Window material: PMMA
- Enclosure rating: IP65
- Data transmission rate: 100 Mbit/s
- Protocols: TCP/IP XML and CSV (robot), TCP/IP (operator)
- User interface: Web server
- Data storage: microSD memory card and external FTP
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Shock and vibration tested to EN 60068 standards
- Dimensions (H x L x W): 108mm x 63mm x 85mm
- Weight: 0.545 kg
Key Features
- Stand-alone sensor with easy teach for localization of parts using 2D measurements
- High resolution 2D localization with 5.1 Megapixel sensor
- Adjustable optical focus (manually)
- Internal white LED lighting with 6500 K color temperature
- Fast localization time: 140 ms for first part, < 60 ms for additional parts
- Robust aluminum die cast housing with IP65 rating
- Multiple connection types including Gigabit Ethernet and fieldbus Ethernet
- Supports image and data logging via microSD and external FTP
- Web server user interface for easy operation
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical connections to ensure proper setup and safety.
Applications
- Industrial automation for part localization
- Robotics for precise positioning
- Quality control in manufacturing
- Medium to large field of view 2D measurements
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED lighting reduces power consumption
- Durable housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK PLOC2D-8305-8 sensor is available for immediate purchase, ideal for industrial automation and robotics applications requiring precise 2D part localization.
