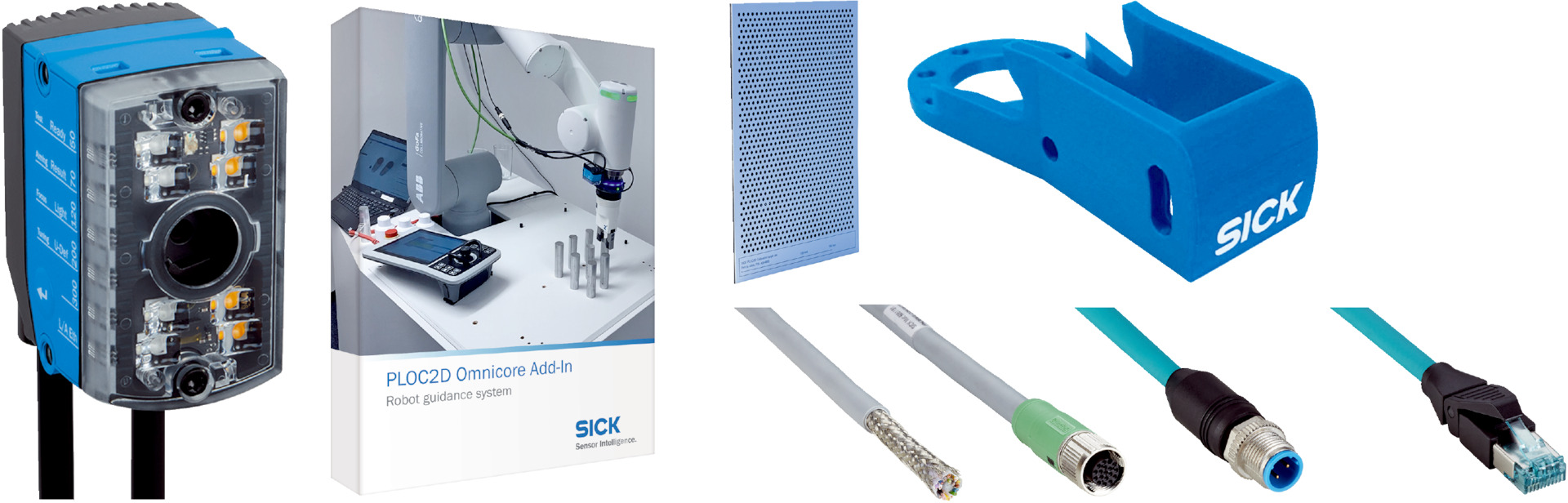

2D Localization Sensor ABB GoFa | 1.2 Megapixel Resolution | IP54 Rated | by SICK
The 2D Localization Sensor ABB GoFa is designed for precise part localization in industrial automation. Featuring a medium resolution of 1.2 Megapixels and multiple light sources, it ensures fast localization times of under 0.5 seconds. Ideal for robotic systems using ABB Omnicore controllers, this sensor offers robust performance with an IP54 rating, making it perfect for various applications in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1280 px x 960 px (1.2 Mpixel)
- Working distance: 50 mm to 300 mm
- Light sources: Red LED (617 nm), Green LED (525 nm), Blue LED (470 nm), Red laser (630 nm)
- Laser class: Class 1, compliant with IEC 60825-1:2014
- LED class: Risk group 1 (low risk) IEC 62471
- Localization principle: Shape comparison
- Mounting method: Integrated
- Power consumption: 3.5 W
- Supply voltage: 12 V to 24 V ±15%
- Connection: 1 x M12 17-pin male connector, 1 x M12 4-pin female Ethernet connector
- Data transmission rate: 100 Mbit/s
- Protocols supported: TCP/IP XML, CSV, PROFINET, EtherNet/IP, FTP
- Enclosure rating: IP54
- Operating temperature: 0°C to +40°C
- Storage temperature: -20°C to +70°C
- Shock and vibration tested to EN 60068-2-27 and EN 60068-2-6
- Dimensions (H x L x W): 30mm x 50mm x 40mm
- Weight: 0.165 kg
Key Features
- Stand-alone sensor with easy teach for 2D part localization
- Medium resolution 1.2 Megapixel sensor (1280 x 960 px)
- Integrated optics with 6 mm focal length lens
- Multiple visible light sources: red, green, blue LEDs and red laser for adjustment
- Fast localization time: <0.5 seconds for first part, <100 ms for additional parts
- Robust die-cast zinc housing with IP54 rating
- Ethernet interface with 100 Mbit/s data transmission and multiple protocols (TCP/IP XML, CSV, PROFINET, EtherNet/IP, FTP)
- Image and data logging via microSD and external FTP
- Operating temperature range 0°C to +40°C
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper integration with ABB Omnicore robot controllers and network configuration.
Applications
- Industrial automation for part localization
- Robotic systems using ABB Omnicore controller
- Medium to large field of view 2D image analysis
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED and laser light sources reduce power consumption
- Durable housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

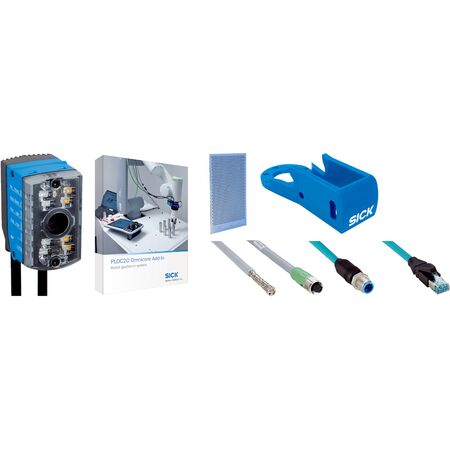

The PLOC2D-611-6RB ABB GoFa sensor by SICK is available for immediate purchase, ideal for industrial automation and robotic part localization applications.
