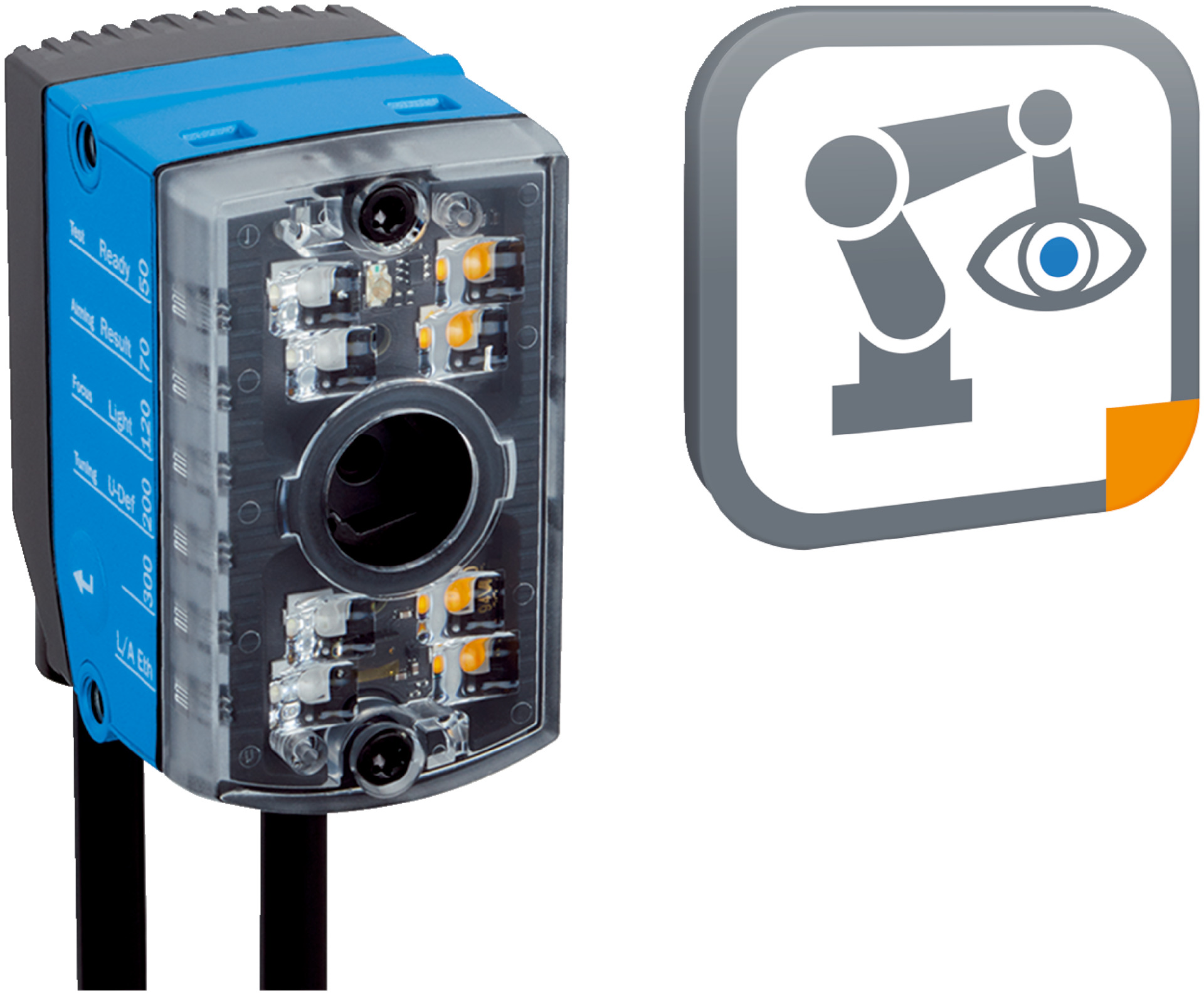

2D Localization Sensor | High Resolution 1280 x 960 | Fast Localization Time | IP54 Rated | by SICK
The 2D Localization Sensor is designed for precise part localization in industrial automation, featuring a high-resolution 1280 x 960 pixel sensor and fast localization times of less than 0.5 seconds for the first part. With adjustable optical focus and robust IP54-rated housing, it's perfect for robotics, manufacturing process control, and quality inspection systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Working distance: 50 mm to 300 mm
- Light sources: Visible red LED (617 nm), green LED (525 nm), blue LED (470 nm), laser (630 nm)
- Laser class: Class 1, compliant with IEC 60825-1:2014
- Sensor resolution: 1280 x 960 pixels
- Focal length: 12 mm
- Power consumption: 3.5 W
- Supply voltage: 12 V to 24 V ± 15%
- Connection types: 1 x M12 17-pin male connector, 1 x M12 4-pin female Ethernet connector
- Data transmission rate: 100 Mbit/s
- Protocols supported: TCP/IP XML and CSV, PROFINET, EtherNet/IP, FTP
- Operating temperature: 0°C to +40°C
- Storage temperature: -20°C to +70°C
- Enclosure rating: IP54
- Housing material: Die-cast zinc
- Window material: PMMA
- Dimensions (H x L x W): 30mm x 50mm x 40mm
- Weight: 0.165 kg
Key Features
- Stand-alone sensor with easy teach for 2D part localization
- Adjustable optical focus for precise measurements
- High resolution 1,280 px x 960 px (1.2 Mpixel) sensor
- Fast localization time: < 0.5 seconds for first part, < 100 ms for additional parts
- Integrated optics and illumination with visible red, green, and blue LEDs
- Robust die-cast zinc housing with IP54 rating
- Supports multiple communication protocols including TCP/IP, PROFINET, EtherNet/IP
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Industrial automation for part localization
- Robotics and manufacturing process control
- Quality control and inspection systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

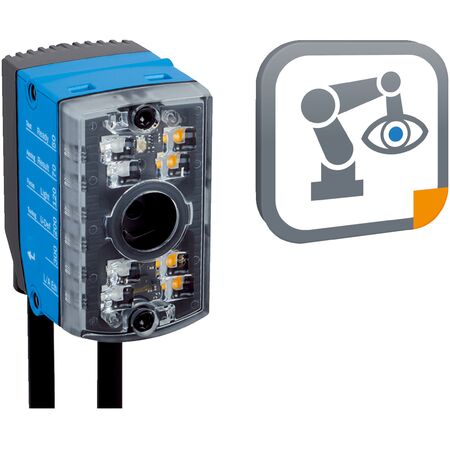

The SICK PLOC2D-611-12RB 2D Localization Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
