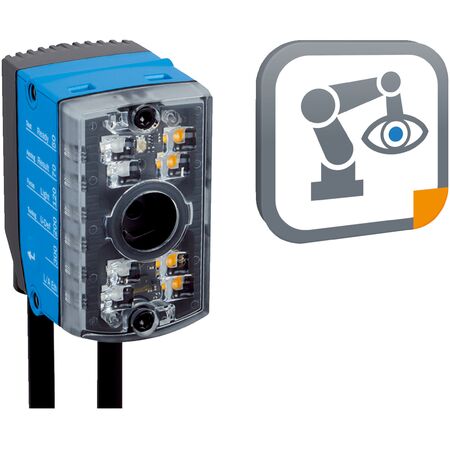

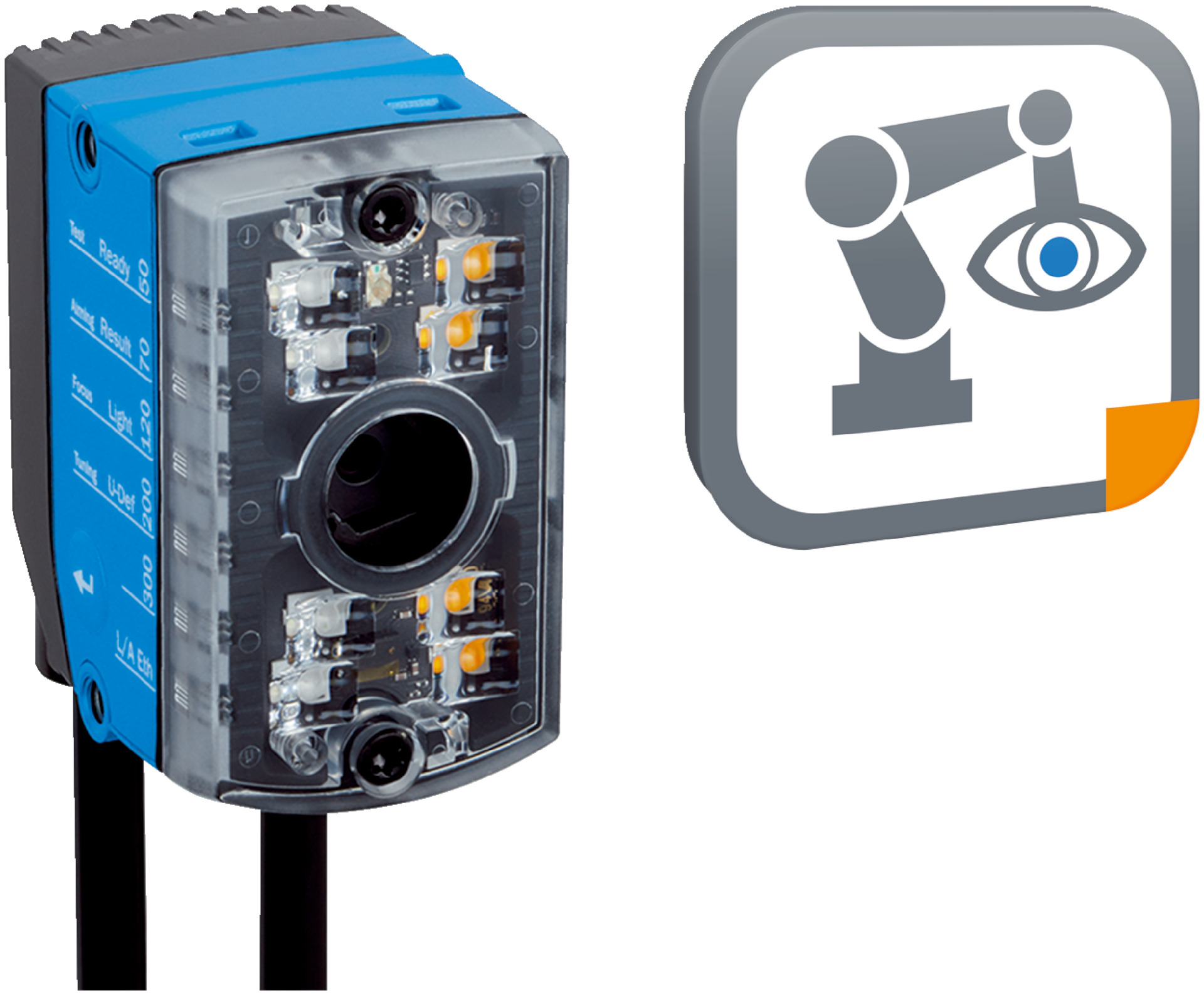

2D Localization Sensor PLOC2D-611-12NIR | 1280 x 960 Resolution | Infrared LED & Laser Adjustment Aid | IP54 Rated | by SICK
The 2D Localization Sensor PLOC2D-611-12NIR offers high precision with a resolution of 1280 x 960 pixels, making it ideal for industrial automation and robotics applications. With an adjustable optical focus and fast localization time, this sensor ensures efficient part localization and quality control. Its robust IP54-rated housing and support for multiple communication protocols enhance its reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1280 px x 960 px (1.2 Mpixel)
- Working distance: 50 mm to 300 mm
- Light source: Infrared LED 850 nm ± 15 nm
- Feedback spot: Visible green LED 525 nm ± 15 nm
- Adjustment aid: Visible red laser 630 nm ± 15 nm, Laser class 1
- Localization principle: Shape comparison
- Connection type: 1 x M12 17-pin male connector, 1 x M12 4-pin female connector (Ethernet)
- Supply voltage: 12 V to 24 V ± 15%
- Power consumption: 3.5 W
- Housing material: Die-cast zinc
- Window material: PMMA
- Enclosure rating: IP54
- Data transmission rate: 100 Mbit/s
- Protocols supported: TCP/IP XML and CSV, PROFINET, EtherNet/IP, FTP
- Operating temperature: 0°C to +40°C
- Storage temperature: -20°C to +70°C
- Shock and vibration tested to EN 60068 standards
- Dimensions (H x L x W): 30mm x 50mm x 40mm
- Weight: 0.165 kg
Key Features
- Stand-alone sensor with easy teach for 2D part localization
- Adjustable optical focus with 12 mm focal length lens
- Infrared LED internal lighting (850 nm) with visible green feedback spot
- Laser adjustment aid with visible red light (630 nm)
- High localization accuracy ±0.5 px, ±0.1° rotation
- Fast localization time: <0.5 seconds for first part, <100 ms for additional parts
- Robust die-cast zinc housing with IP54 rating
- Supports Ethernet communication with multiple protocols including PROFINET and EtherNet/IP
- Data logging via microSD and external FTP
- Operating temperature range 0°C to +40°C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper electrical connections and sensor calibration.
Applications
- Industrial automation for part localization
- Robotics and manufacturing process control
- Quality control and inspection systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation with low power consumption (3.5 W)
- Durable housing reduces need for frequent replacements
- Supports digital data logging reducing paper usage
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK PLOC2D-611-12NIR 2D Localization Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
