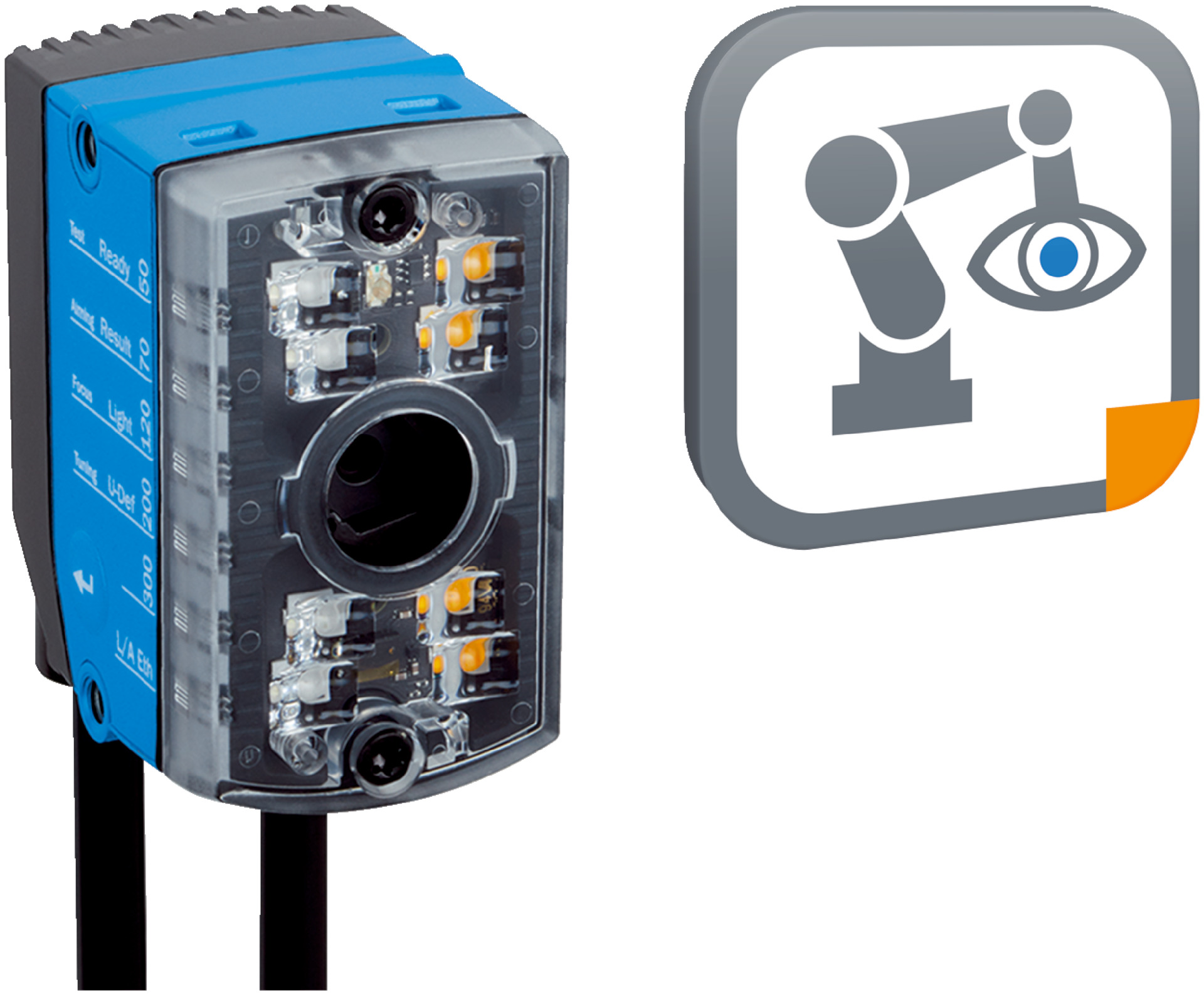

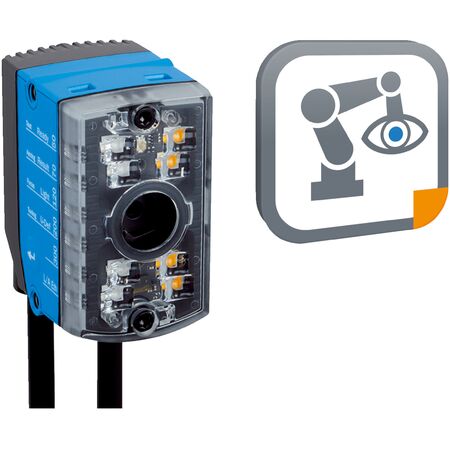

2D Localization Sensor PLOC2D-611-6NIR | Infrared LED | 1280 x 960 Resolution | IP54 Rated | by SICK
The 2D Localization Sensor PLOC2D-611-6NIR is designed for precise part localization in industrial automation and robotics. With a high resolution of 1280 x 960 pixels and an infrared LED light source, it ensures fast localization times of under 0.5 seconds. Built for durability with an IP54 rating, this sensor is perfect for quality control and logistics applications, providing reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Working distance: 50 mm to 300 mm
- Light source: Infrared LED 850 nm ±15 nm, feedback LED 525 nm, adjustment laser 630 nm
- Laser class: Class 1, compliant with IEC 60825-1:2014
- Sensor resolution: 1280 px x 960 px (1.2 Mpixel)
- Mounting method: Integrated
- Connection type: 1 x M12 17-pin male connector, 1 x M12 4-pin female connector (Ethernet)
- Supply voltage: 12 V to 24 V ±15%
- Power consumption: 3.5 W
- Housing material: Die-cast zinc
- Enclosure rating: IP54
- Data transmission rate: 100 Mbit/s
- Protocols supported: TCP/IP XML and CSV, PROFINET, EtherNet/IP, FTP
- Operating temperature: 0°C to +40°C
- Storage temperature: -20°C to +70°C
- Shock and vibration tested to EN 60068-2-27 and EN 60068-2-6
- Dimensions (H x L x W): 30mm x 50mm x 40mm
- Weight: 0.165 kg
Key Features
- Stand-alone sensor with easy teach for 2D part localization
- Adjustable optical focus with 6 mm focal length lens
- Infrared LED internal lighting (850 nm) with visible green feedback spot and red laser adjustment aid
- High sensor resolution of 1280 px x 960 px (1.2 Mpixel)
- Fast localization time: <0.5 seconds for first part, <100 ms for additional parts
- Robust die-cast zinc housing with IP54 rating
- Supports multiple communication protocols including TCP/IP, PROFINET, EtherNet/IP
- Data logging via microSD and external FTP
- Operating temperature range 0°C to +40°C with shock and vibration resistance
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper electrical connections and sensor calibration.
Applications
- Industrial automation for part localization
- Robotics for precise positioning
- Quality control in manufacturing
- Logistics and material handling systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation with low power consumption of 3.5 W
- Durable housing reduces need for frequent replacements
- Supports digital data logging reducing paper usage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK PLOC2D-611-6NIR 2D Localization Sensor is available for immediate purchase, ideal for industrial automation and robotics applications.
