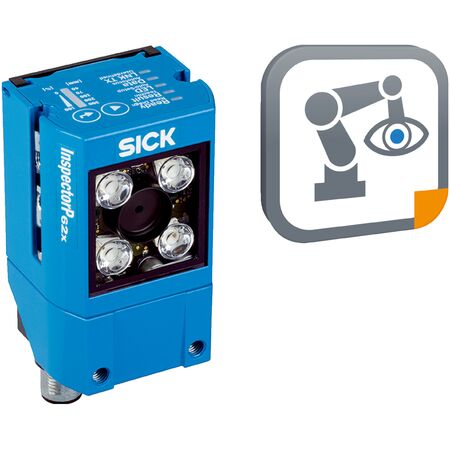

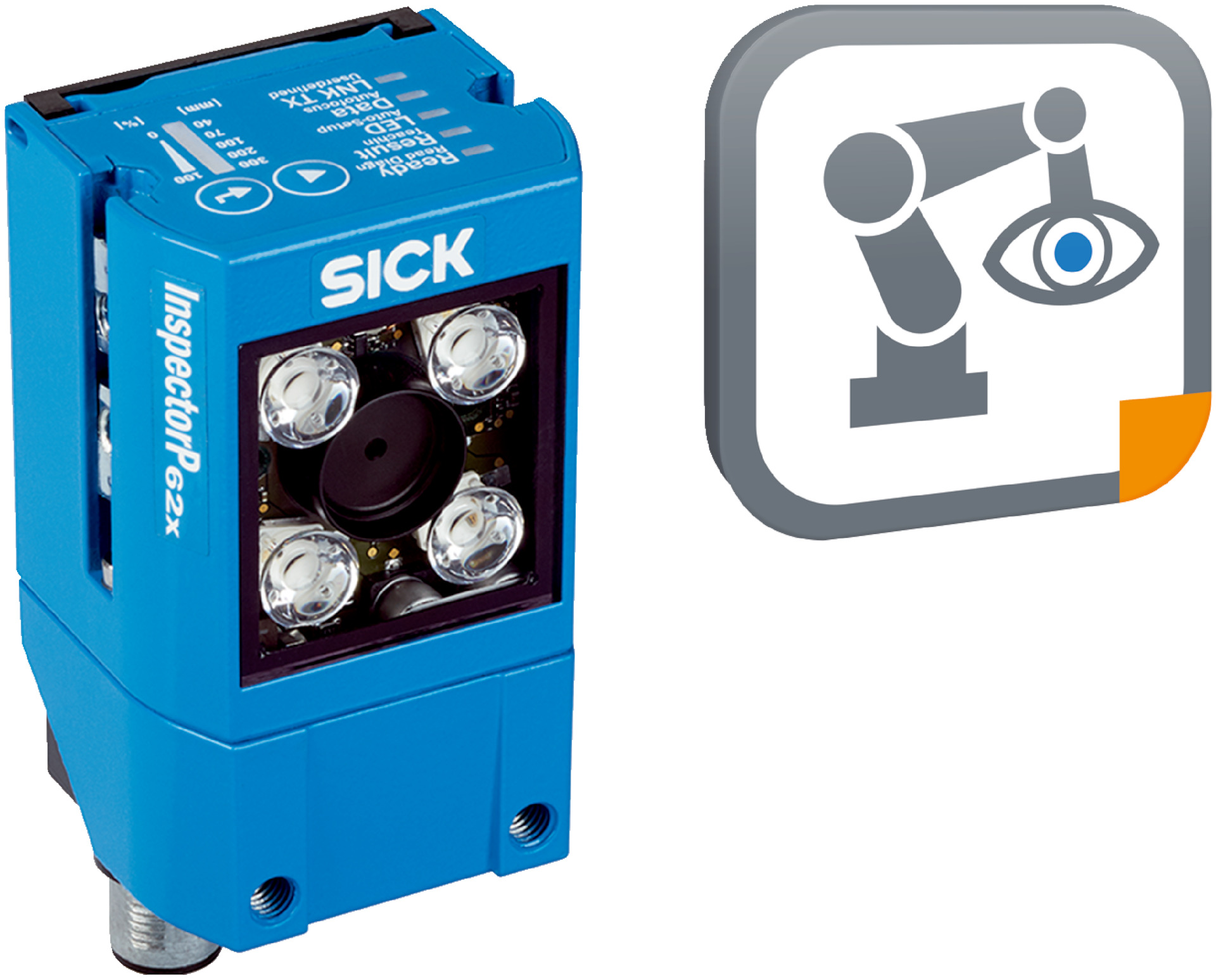

2D Localization Sensor PLOC2D-621-10RB | 1280 x 1024 Resolution | IP65 Rated | by SICK
The 2D Localization Sensor PLOC2D-621-10RB offers high precision with a resolution of 1280 px x 1024 px, making it ideal for industrial automation and robotics applications. With a fast localization time of under 0.5 seconds and robust aluminum housing rated IP65, this sensor ensures reliable performance in demanding environments. Perfect for quality control and inspection systems, it supports multiple Ethernet communication protocols for seamless integration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1280 px x 1024 px (1.3 Mpixel)
- Working distance: 70 mm to 1500 mm
- Light sources: Visible red LED (617 nm), green LED (525 nm), blue LED (470 nm), laser adjustment aid (630-680 nm)
- Laser class 1 compliant with IEC 60825-1:2014
- Connection: 1 x M12 17-pin male connector, 1 x M12 4-pin female Ethernet connector
- Supply voltage: 24 V ± 20%
- Power consumption: 4 W ± 20%
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Data transmission rate: 100 Mbit/s
- Protocols supported: TCP/IP XML and CSV, PROFINET, EtherNet/IP, FTP
- User interface: Web server
- Data storage: microSD card and external FTP
- Dimensions (H x L x W): 35.6mm x 71mm x 43mm
- Weight: 0.17 kg
Key Features
- Stand-alone sensor with easy teach for 2D part localization
- Adjustable electric optical focus
- High localization accuracy ± 0.5 px, ± 0.1°
- Fast part localization time under 0.5 seconds for first part
- Integrated optics and illumination with visible red, green, and blue LEDs
- Robust aluminum die cast housing with IP65 rating
- Supports Ethernet communication with multiple protocols including TCP/IP, PROFINET, EtherNet/IP
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for part localization
- Robotics and manufacturing process control
- Quality control and inspection systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of 4 W reduces energy usage
- Durable housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK PLOC2D-621-10RB sensor is available for immediate purchase, ideal for industrial automation and robotics applications requiring precise 2D part localization.
