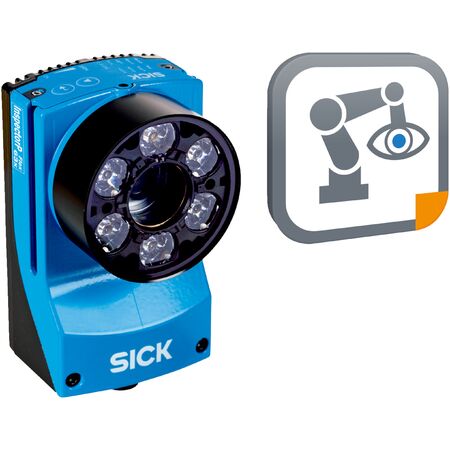

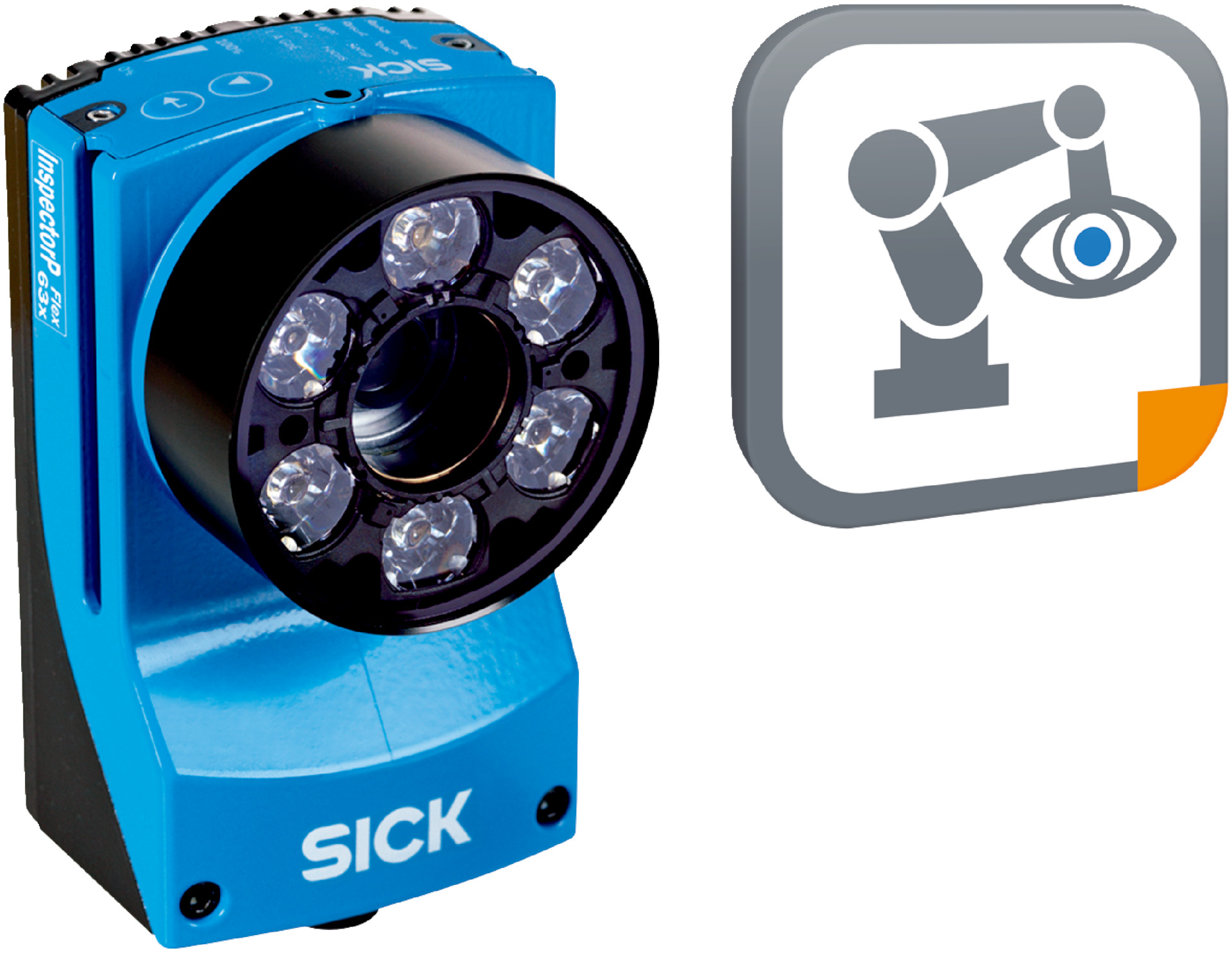

2D Localization Sensor PLOC2D-631C | 1.3 Mpixel Resolution | IP65 Rated | Adjustable Focus | by SICK
The 2D Localization Sensor PLOC2D-631C offers high precision with a 1.3 Mpixel resolution and adjustable optical focus, making it ideal for industrial automation and robotics applications. With a fast localization time of less than 0.5 seconds for the first part and robust IP65-rated aluminum housing, this sensor ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1,280 px x 1,024 px (1.3 Mpixel)
- Light source: Illumination LEDs (ordered separately)
- Laser class: 1, compliant with IEC 60825-1:2014
- Optical focus: Adjustable (manual)
- Localization principle: Shape comparison
- Connection types: M12 17-pin male, M8 4-pin female (USB not used), M12 8-pin socket (Gigabit Ethernet), M12 4-pin male (external illumination)
- Supply voltage: 12 V to 24 V ± 20%
- Power consumption: 10 W ± 20%
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Part localization time: < 0.5 seconds for first part, < 100 ms for additional parts
- Localization accuracy: ± 0.5 px, ± 0.1°
- Output data: X, Y (mm), rotation around Z (degrees)
- Data transmission rate: 100 Mbit/s
- Protocols supported: TCP/IP XML and CSV, PROFINET, EtherNet/IP, FTP
- User interface: Web server
- Data storage: microSD memory card and external FTP
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Shock and vibration tested to EN 60068-2-27 and EN 60068-2-6
- Dimensions (H x L x W): 46mm x 108mm x 63mm
- Weight: 0.43 kg
Key Features
- Stand-alone sensor with easy teach for localization of parts using 2D measurements
- Adjustable optical focus (manual)
- High sensor resolution of 1,280 px x 1,024 px (1.3 Mpixel)
- Shape comparison localization principle
- 2D snapshot and image analysis technology
- Fast part localization time: < 0.5 seconds for first part, < 100 ms for additional parts
- Output data includes X, Y (mm) and rotation around Z (degrees)
- Robust aluminum die cast housing with IP65 rating
- Multiple connection types including M12 connectors and Gigabit Ethernet
- Supports TCP/IP XML and CSV protocols, PROFINET, EtherNet/IP, FTP
- Web server user interface and data logging via microSD and FTP
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper integration and compliance with safety standards.
Applications
- Industrial automation for part localization
- Robotics for precise 2D measurements
- Quality control in manufacturing processes
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient operation with low power consumption of 10 W
- Durable aluminum housing reduces waste and extends product life
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK PLOC2D-631C 2D Localization Sensor is available for immediate purchase, ideal for industrial automation and robotics applications.
